Cessna 182 - Engine Oil System

1-22
Engine Oil System
39. Oil for engine lubrication and propeller governor operation is supplied from a sump on
the bottom of the engine.
a. an oil filler cap is located on the top of the crankcase, accessed through a door in
the front of the upper engine cowling; and

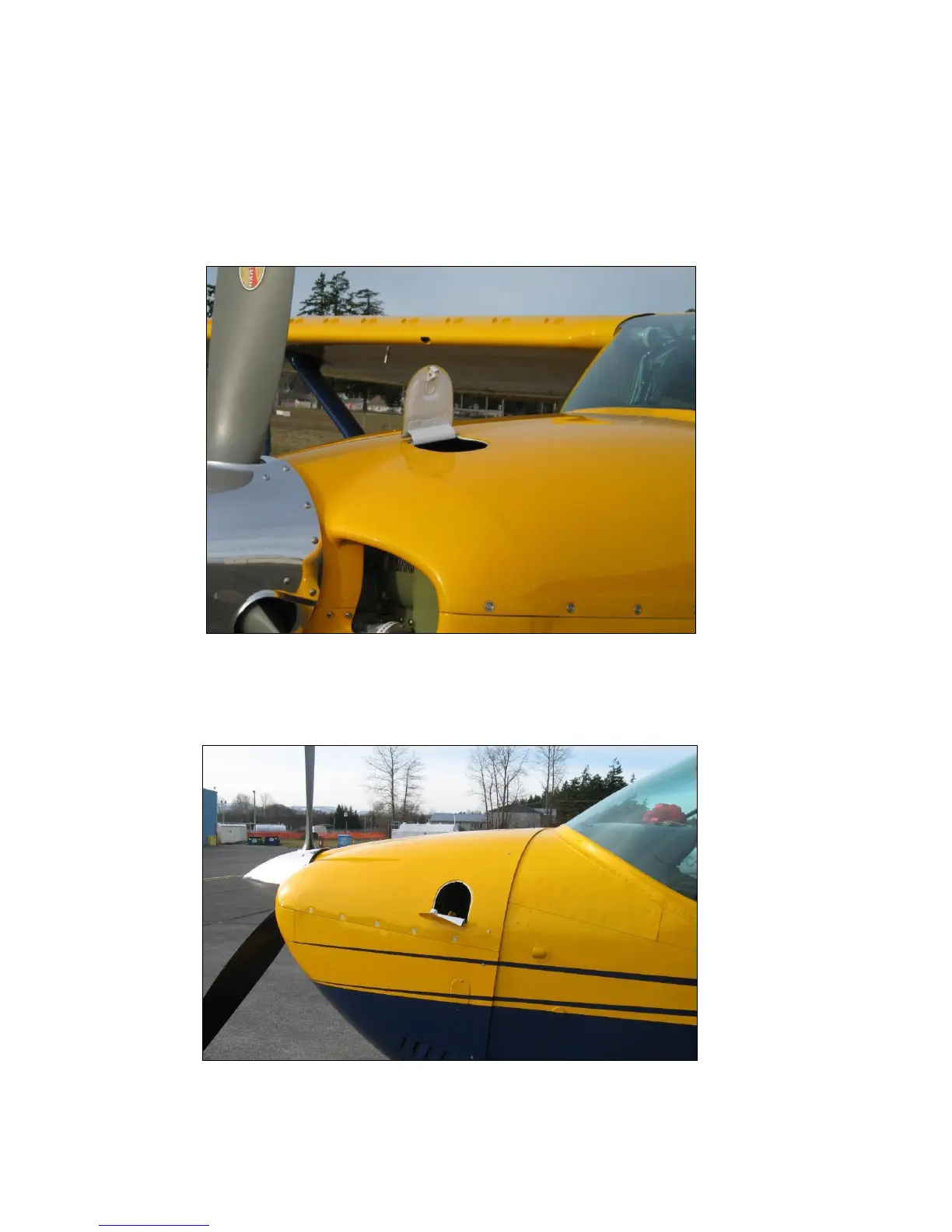

Figure 1-26 Oil Filler Cap Location
b. an oil dip stick is located on the left side of the crankcase, accessed through a
door in the left side of the upper engine cowling.
Figure 1-27 Oil Dip Stick Location
