Cessna 182 - FUEL SYSTEM

1-27
FUEL SYSTEM
Fuel System Components
49. The aircraft fuel system consists of the following major components:
a. two bladder style vented fuel tanks;
b. vent system / check valve;
c. fuel quantity indicators for each tank;
d. rotary fuel selector valve;
e. fuel header tank;
f. fuel shutoff valve;
g. fuel strainer;
h. electric auxiliary fuel pump;
i. engine driven fuel pump;
j. fuel injection system; and
k. vapour return line.

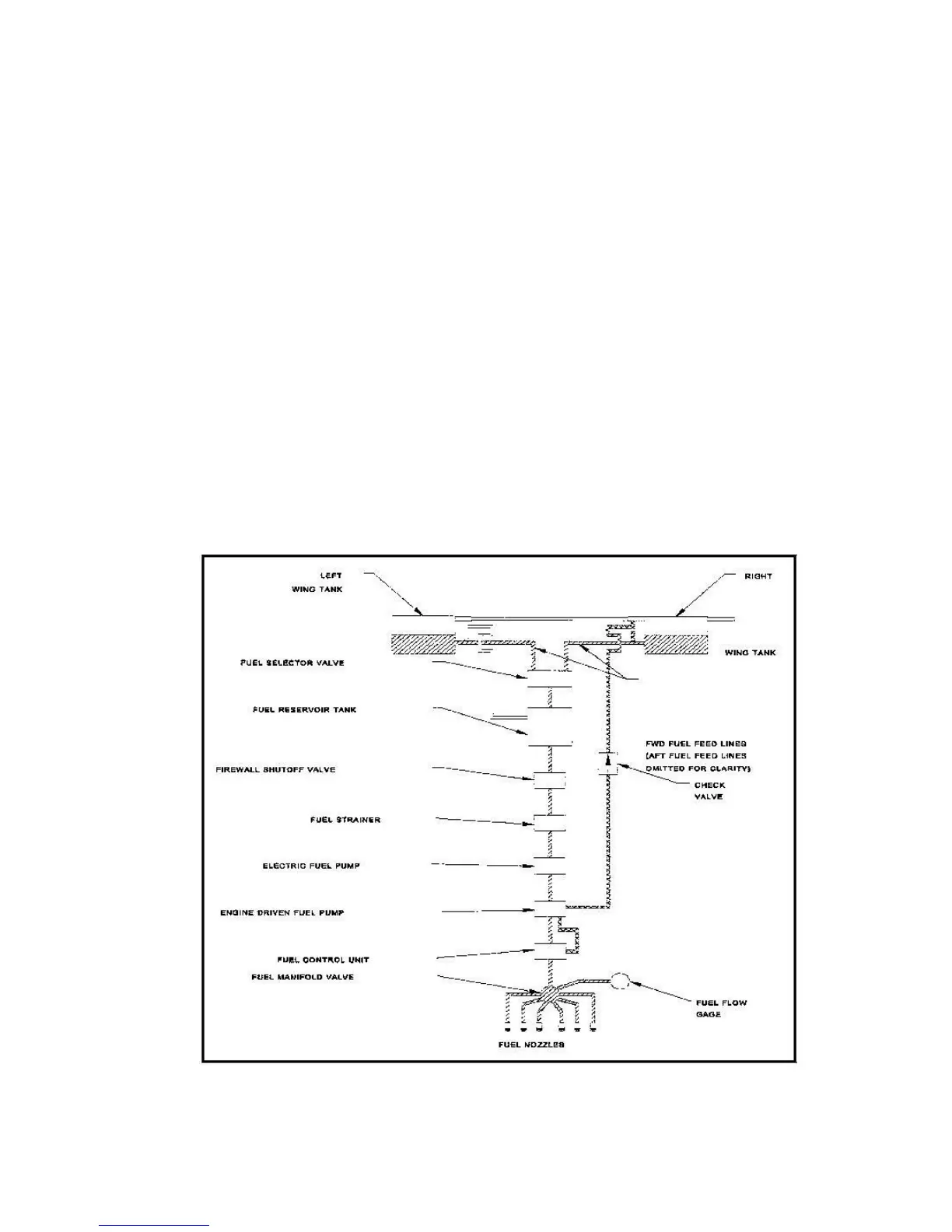

Figure 1-32 Fuel System Components
