Emotron VS Series Quick Start Guide
- 114 -
3: single phase asynchronous motor
VSS(≤0.75kW) connected to single phase motor, running direction is determined by the motor
(figure 6-22).
(-) (+) PB
M
KM1
L1
L2
U
W
220VAC
V
Inverter

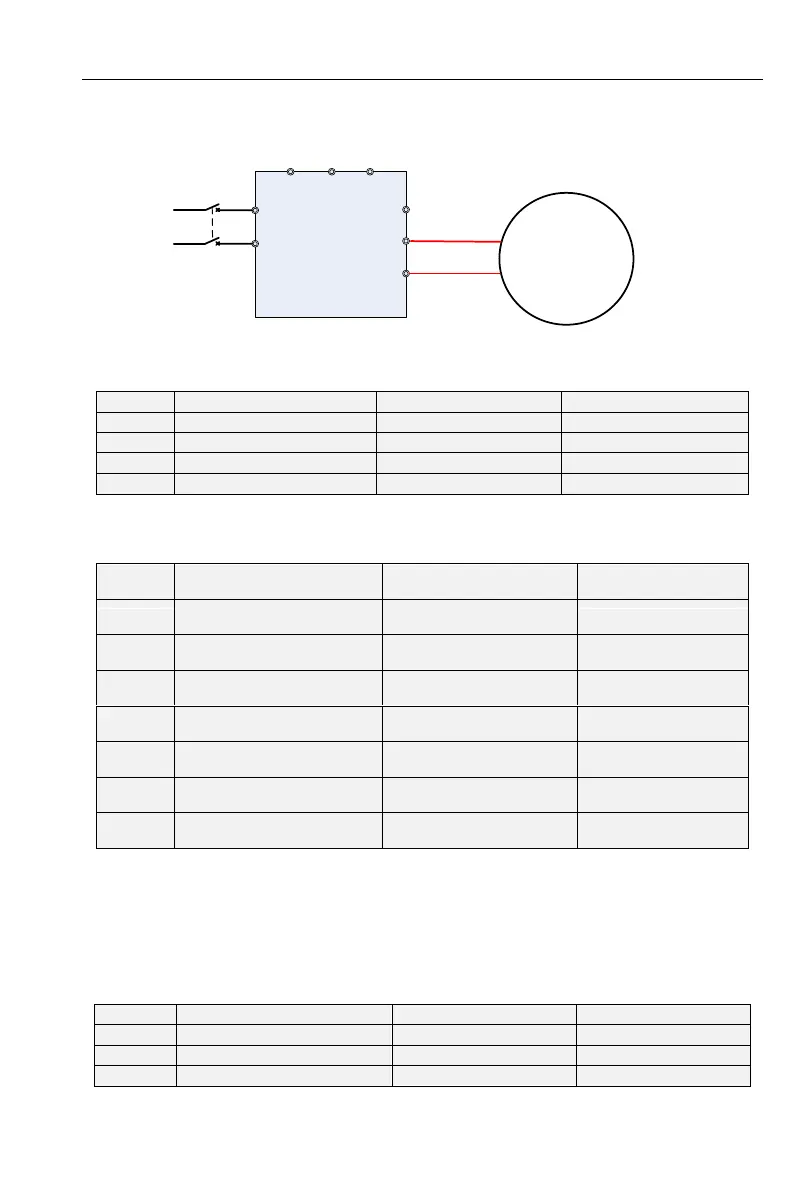

Fig 6-22 VSS (≤0.75kW) connect to single phase motor
Set the parameters according to the motor nameplate no matter whether V/F control or vector
control is adopted.
To achieve better V/F or vector control performance, motor auto-tuning is required. The motor
auto-tuning accuracy depends on the correct setting of motor nameplate parameters.
d0.08
Stator resistance R1 of
async motor 1
Range:0.001～65.535Ω
Default: Model defined
d0.09
Rotor resistance R2 of
async motor 1
Range:0.001～65.535Ω
Default: Model defined
d0.10
Leakage inductance L1 of
async motor 1
Range:0.001～65.535mH
Default: Model defined
d0.11
Mutual inductance L2 of
asynchronous motor 1
Range:0.1～6553.5mH
Default: Model defined
d0.12
No-load current of async
motor 1
Range:0.01～655.35A
Default: Model defined
d0.13
Field weakening coeff 1 of
async motor 1
Range:0.0～100.0%
Default:87%
d0.14
Field weakening coeff 2
of async motor 1
Range:0.0～100.0%
Default:75%
d0.15
Field weakening coeff 2
of async motor 1
Range:0.0～100.0%
Default:70%
The parameters in d0.08 to d0.15 are asynchronous motor parameters. These parameters are
unavailable on the motor nameplate and are obtained by means of motor auto-tuning. Only d0.08 to
d0.10 can be obtained through static motor auto-tuning. Through complete motor auto-tuning, encoder
phase sequence and current loop PI can be obtained besides the parameters in d0.08 to d0.12.Each
time "Rated motor power" (d0.01) or "Rated motor voltage" (d0.02) is changed, the AC drive
automatically restores values of d0.08 to d0.12 to the parameter setting for the common standard Y
series asynchronous motor.
If it is impossible to perform motor auto-tuning onsite, manually input the values of these
parameters according to data provided by the motor manufacturer.
d0.16
Stator resistance of PMSM
0.001～65.535Ω
Default: Model defined
d0.17
D-axis inductance of PMSM
0.01～655.35mH
Default: Model defined
d0.18
Q-axis inductance of PMSM
0.01～655.35mH
Default: Model defined
d0.19
Back EMF of PMSM
0～65535V
Default: Model defined
d0.01
Power rating of motor 1
Range:0.1～1000.0kW
Default: Model defined
d0.02
Rated voltage of motor 1
Range:60～660V
Default: Model defined
d0.03
Rated current of motor 1
Range:0.1～1500.0A
Default: Model defined
d0.04
Rated frequency of motor 1
Range:10.00～Fmax
Default: Model defined
d0.05
Rated speed of motor 1
Range:1～60000rpm
Default: Model defined
