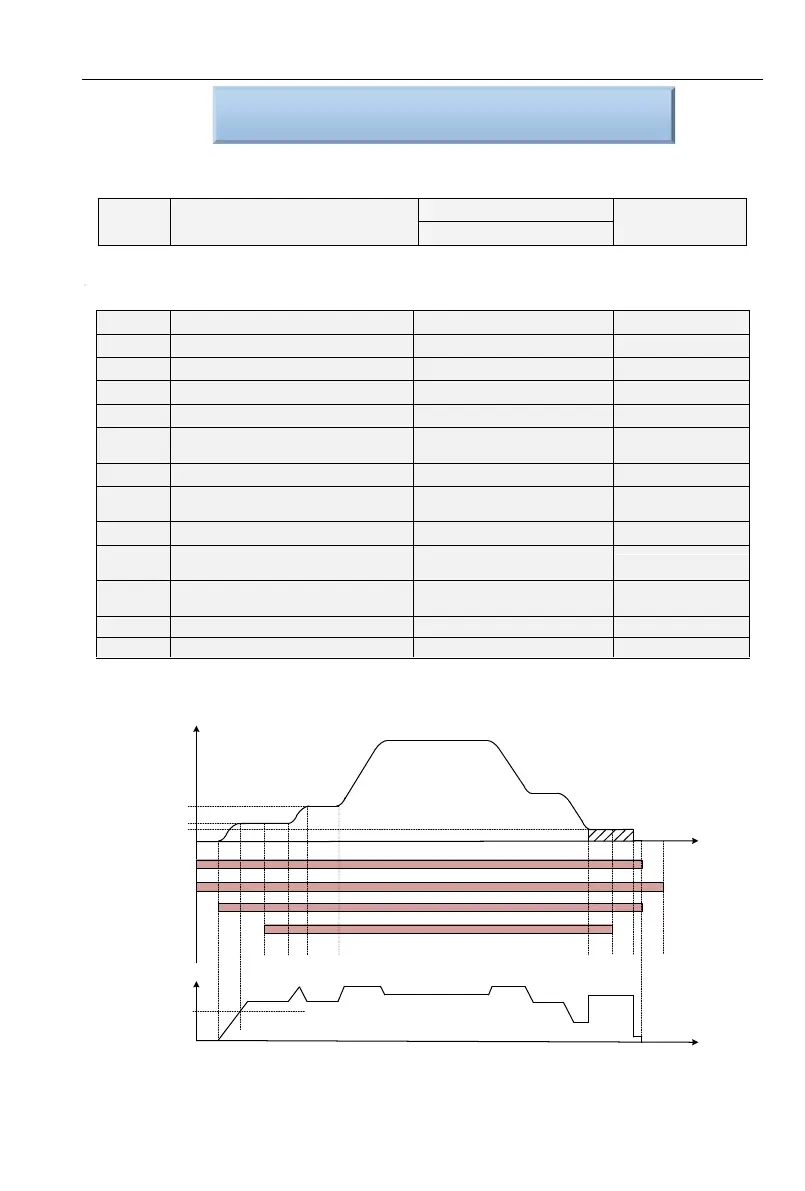

Chapter 8 Elevator Commissioning
8.1 Parameters Description
y0.00
Special Purpose Inverter Function
Enable
0：Invalid
Default: 1
1：Valid
0：Invalid
1：Valid
Special purpose for elevator, group y0 is valid
y0.01
Brake 0pen Delay
0.00～10.00s
Default:0.00s
y0.02
Start Frequency
0.00～10.00Hz
Default:5.00Hz
y0.03
Start Frequency Holding Time
0.00～10.00s
Default:0.00s
y0.04
Brake Release Delay
0.00～10.00s
Default:0.30s
y0.05
Brake Open Frequency (Rising)
0.00～10.00Hz
Default:1.00Hz
y0.06
Brake Release Frequency
(Rising)
0.00～10.00Hz
Default:0.20Hz
y0.07
Brake Open Frequency (Falling)
0.00～10.00Hz
Default:1.00Hz
y0.08
Brake Release Frequency
(Falling)
0.00～10.00Hz
Default:0.20Hz
y0.09
Brake Open Current
0.0～100.0%
Default:40.0%
y0.10
Brake Open Frequency Holding
Time
0.00～10.00s
Default:0.30s
y0.15
Running Contactor Release
Delay
0.00~10.00s
Default:0.20s
y0.16
Running Contactor Open Delay
0.00~10.00s
Default:0.10s
y0.17
Stop DC Injection Time ,
0.00~10.00s
Default:0.50s
Setting function code y0.01~y0.10 and y0.15~y0.17 can improve the comfort when elevator start
star/stop, DC brake current when braking to stop can be adjusted by b1.14, every function code shown
as below:
FWD/REV
Run
Brake
y0.01
y0.10
y0.05
y0.02
y0.03
y0.06
y0.17
Multi-Speed
Current
y0.09
Motor Contactor
y0.15
y0.16
y0.04
DC injection
Figure 8-1 Elevator Operation Logic
