Chapter 2 Product Information
2.1 Nameplate information

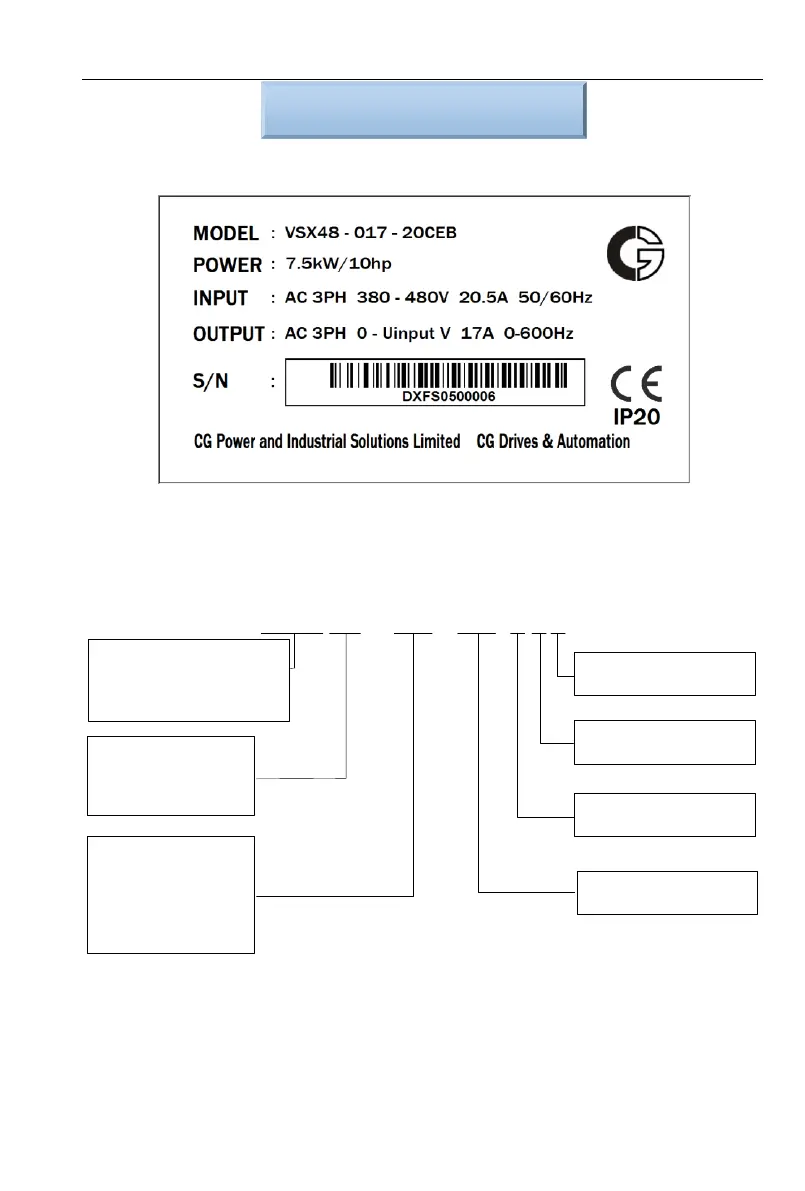

Fig 2-1 Nameplate information
Model Explanation
Model show on product nameplate contains information below.
VSX 48 - 009 - 20 CEB
Product Series
VSX - General Purpose Drive
VSM - Compact Machine Drive
VSS - Single Phase Drive
VSR - Solar Drive
Input ac voltage level
11:110-130Vac/160Vdc
23:220-240Vac/310Vdc
48:380-480Vac/540Vdc
Rated current(A)
003 – 2.5A
- - -
009 – 9.5A
2p5 – 2.5A
- - -
9p5 – 9.5A
Brake chopper
B = Brake chopper
EMC filter
N = No filter
E = C3 filter
Control panel
C = Standard panel
Protection class
20 = IP20
Fig 2-2 Model Explanation
