CG VSR239p5 - Group B0 Frequency Command

Emotron VS Series Quick Start Guide
- 86 -
defined
A0.21
Inverter rated voltage
Range:60～660V
Default: Model
defined
A0.22
Inverter rated current
Range:0.1～1500.0A
Default: Model
defined
A0.23
Software version
Range:0.00～999.99
Default: Model
defined
The parameters are only for reference and cannot be edited.
A0.24
Dealer password
Range: 0～65535
Default: 0
A0.25
Operation time
Range: 0～65535h(0:
Invalid)
Default: 0
When total running time ≥A0.25, inverter will not work. When setting A0.24, need to unlock A0.24
dealer passport, after time setting, need to input dealer passport to lock.
★: Setting this parameter may cause that the inverter can’t work normally, please set carefully.
Group b0 Frequency command
Master frequency
source
Auxiliary
frequency source
Terminal UP/DOWN
+
+
-
Max
Min
+
x
+
AI1
x
AI2
0
1
2
3
4
5
6
7
Switched by
terminal
Switched by
terminal
Jog
frequency
Command frequency

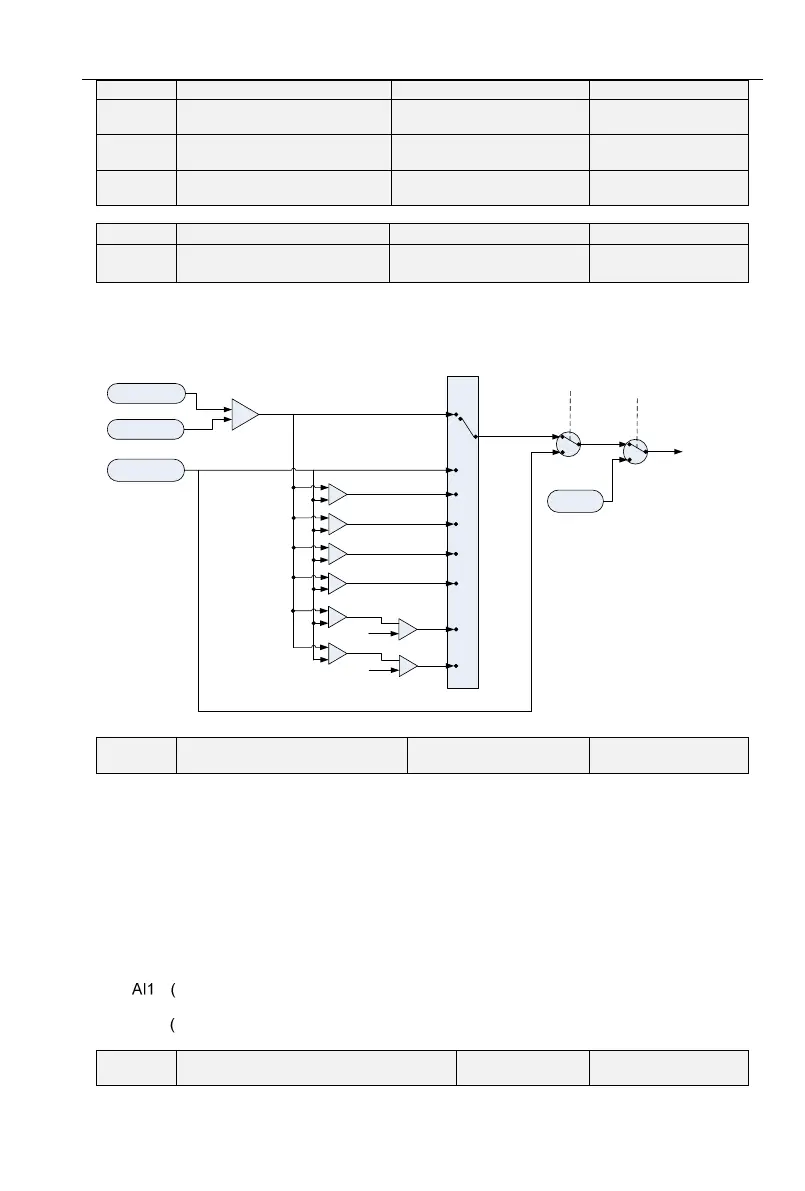

Fig 6-1
b0.00
Frequency source
selection
Range:0～7
Default: 0
0: Master frequency source
The frequency source is determined by master frequency source b0.01.
1: Auxiliary frequency source
The frequency source is determined by auxiliary frequency source b0.03.
2: Master + Auxiliary
The frequency source is determined by Master + Auxiliary.
3: Master - Auxiliary
The frequency source is determined by Master - Auxiliary.
4: MAX {Master, Auxiliary}
The frequency source is determined by MAX {Master, Auxiliary}.
5: MIN {Master, Auxiliary}
The frequency source is determined by MIN {Master, Auxiliary}.
6: Master + Auxiliary)
The frequency source is determined by AI1*(Master + Auxiliary).
7: AI2 Master + Auxiliary)
The frequency source is determined by AI2*(Master + Auxiliary).
b0.01
Master frequency source selection
Range:0～9
VSX: Default:0
Others: Default:1
