Emotron VS Series Quick Start Guide
- 19 -
Chapter 3 Installation and Wiring
3.1 Installation Environment
1) Ambient temperature in the range of -10℃～50℃.
2) Drive should be installed on surface of flame retardant object, with adequate surrounding space for
heat dissipation.
3) Installation should be performed where vibration is less than 5.9m/s2 (0.6g).
4) Avoid from moisture and direct sunlight.
5) Protect the cooling fan by avoiding oil, dust and metal particles;
6) Do not expose to an atmosphere with flammable gases, corrosive gases, explosive gases or other
harmful gases.
7) Prevent drilling residues, wire ends and screws falling into drive.
8) Ventilation part of the drive should be installed outside from harsh environment (e.g. Textile facilities
with fiber particles and chemical facilities filled with corrosive gases or Loaded dust cover).
3.2 Installation Direction, Space and Cooling
Below is an example of VSX inverter.(VSM & VSS & VSR are same as VSX)
A fan is integrated in VSX for forced air cooling. VSX has to be installed vertically for the purpose
of good cooling circulation. Sufficient spaces have to be left between VSX and its peripheral objects.
Multi- VSX can be installed in parallel horizontally and vertically. See followings for specific space
requirement, heat dissipating capacity and mass airflow.
VS series inverter installation : Wall installation.

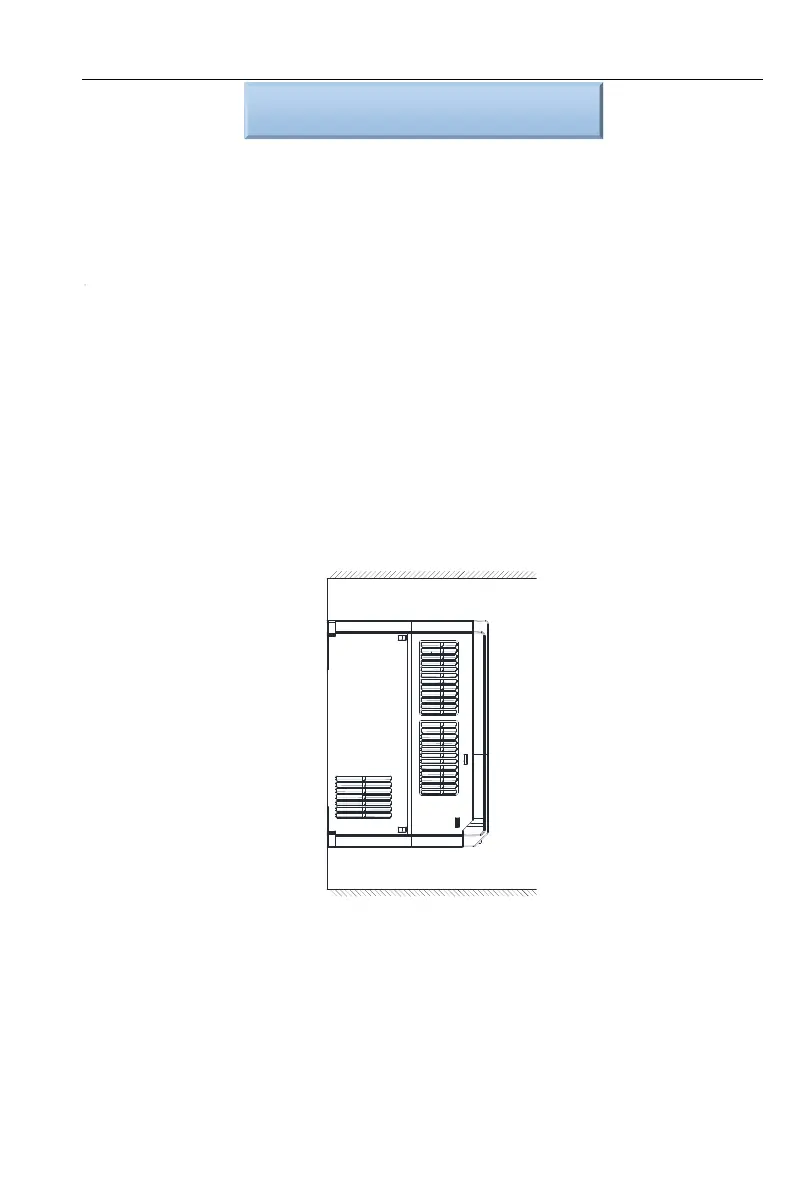

Fig 3-1 Installation methods
