Emotron VS Series Quick Start Guide
- 160 -
Emergency
signal input
Forward run
command
Output
frequency Hz
0Hz
y0.27
y0.27
y0.12
Light load
direction
search
completed
output
Light load
direction
search
direction
output

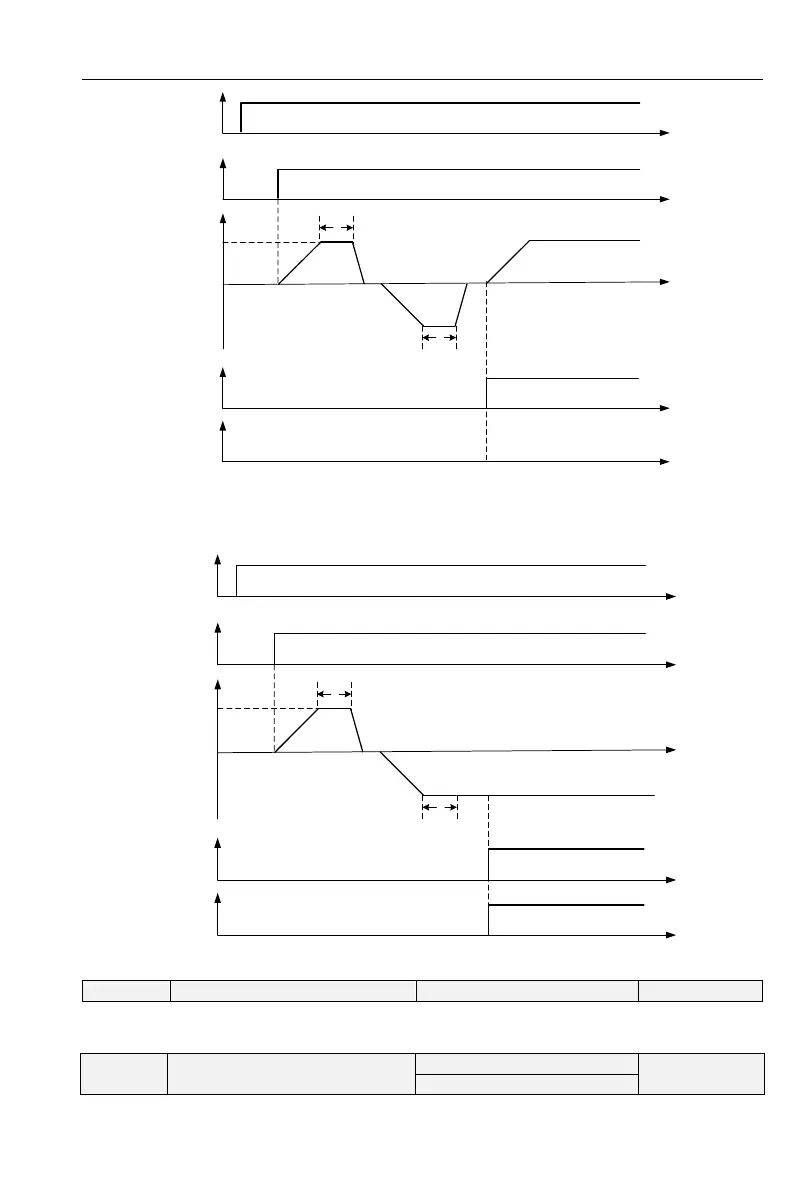

Figure 8-3 Light load direction search timing diagram
When detected light load direction is opposite with given running command direction, inverter
continues to run with emergency setting frequency, running timing diagram as below:
Emergency
signal input
Forward run
command
Output
frequency Hz
0Hz
y0.27
y0.27
y0.12
Light load
direction
search
completed
output
Light load
direction
search
direction
output
Figure 8-.4 Light load direction search timing diagram
y0.28
UPS voltage lower limit
0.0～200.0%
Default: 70.0%
Used for setting UPS power voltage lower limit, when inverter is detecting light load direction,
UPS power voltage is lower than the setting of y0.28, inverter will change to detect reverse direction
y0.29
UPS voltage lower limit error
0：Invalid
Default: 1
1：Valid
