The 1st section and the last section in accelerating or decelerating are in smooth transition. The
acceleration/deceleration curve is similar to S curve. When it is in S curve, the final
acceleration/deceleration time= S curve time+ Linear acceleration/deceleration time. See Figure 6-13
for 2 acceleration/deceleration modes.
See Figure 6-6 for 2 acceleration/deceleration modes.
0
Output frequency(Hz)
T
Fmax
Fset
① ② ③ ④
Setting acceleration
time
Setting
deceleration time
⑤ ⑥
①b2.11
②b2.15
③b2.16
④b2.17
⑤Setting acceleration time
⑥Setting deceleration time

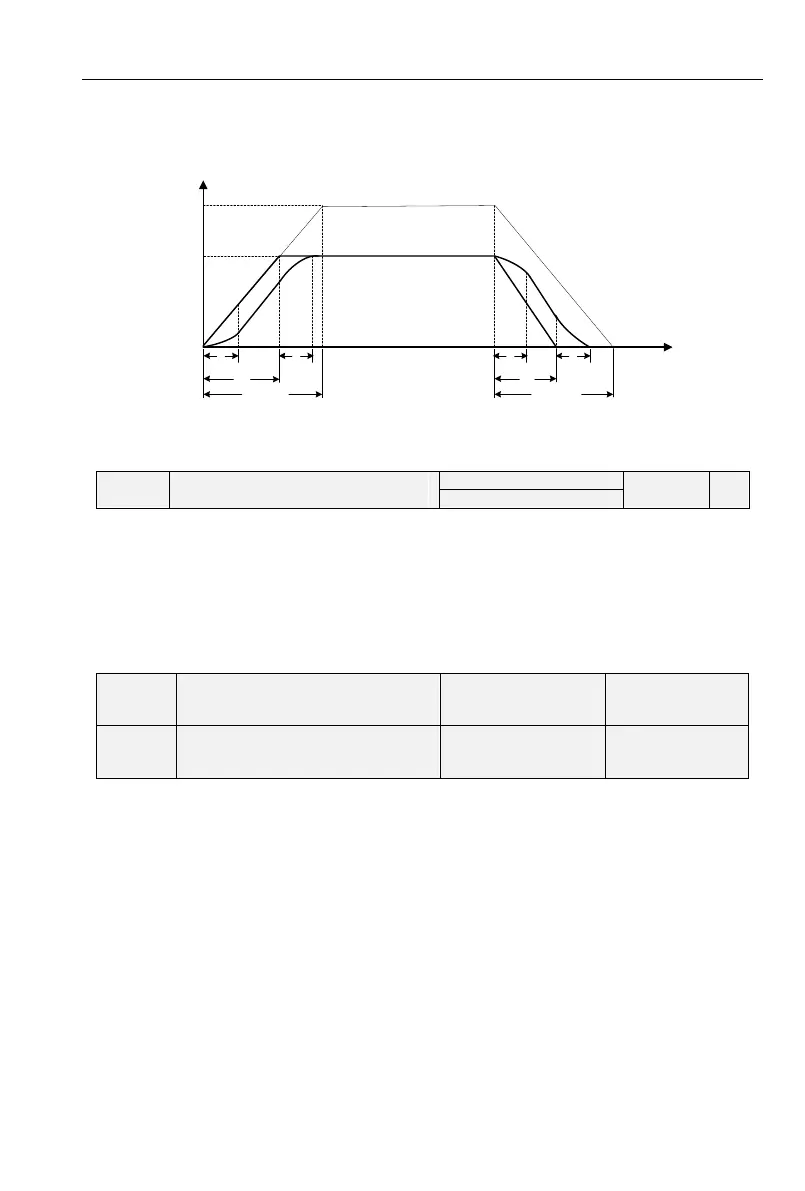

Fig 6-6 acceleration/deceleration modes
b2.12
unit of acceleration and deceleration
time
0: 0.1s
0
×
1: 0.01s
This function is used to select unit of acceleration and deceleration time.
0: 0.1s
All the unit of acceleration and deceleration time is 0.1s, the function code decimal point of 4
section acceleration and deceleration time（b2.00~b2.07), jog acceleration and deceleration time, 4
section S-curve time（b2.11, b2.15~b2.17) is one.
1: 0.01s
All the unit of acceleration and deceleration time is 0.01s, the function code decimal point of 4
section acceleration and deceleration time（b2.00~b2.07), jog acceleration and deceleration time, 4
section S-curve time（b2.11, b2.15~b2.17) is two.
b2.13
Frequency switchover point
between acceleration time 1 and
acceleration time 2
Range:0.00～Fmax
Default:0.00Hz
b2.14
Frequency switchover point
between deceleration time 1 and
deceleration time 2
Range:0.00～Fmax
Default:0.00Hz
This function is valid when motor 1 is selected and acceleration/deceleration time switchover is
not performed by means of DI terminal. It is used to select different groups of acceleration/deceleration
time based on the running frequency range rather than DI terminal during the running process of the
AC drive.
During acceleration, if the running frequency is smaller than the value of b2.13, acceleration time
2 is selected. If the running frequency is larger than the value of b2.13, acceleration time 1 is selected.
During deceleration, if the running frequency is larger than the value of b2.14, deceleration time 1
is selected. If the running frequency is smaller than the value of b2.14, deceleration time 2 is selected.
Figure 6-7 Acceleration/deceleration time switchovers.
