System Description
NOTE
The following instruments can be connected to the USB connection:
– USB memory stick which supports the USB V1.1 protocol
– USB mouse
– USB keyboard
The connected instruments must be approved as medical products in accordance
with EN IEC 60601.
3.2 F-SW handpiece and optional C-ACTOR handpiece
Focused shock waves with a short wavelength that are concentrated on a focal zone
outside the handpiece are administered over the F-SW handpiece or the C-ACTOR
handpiece into the body at the treatment zone that has been established by diagno-
sis.
NOTE
Optical difference between F-SW handpiece and C-ACTOR handpiece:
The F-SW handpiece has a blue ring around the coupling diaphragm and the
C-ACTOR handpiece has a red ring around the coupling diaphragm.
1
2
3
4
1 Trigger button
2 Clamping ring
3 Fixing screws
4 Coupling diaphragm

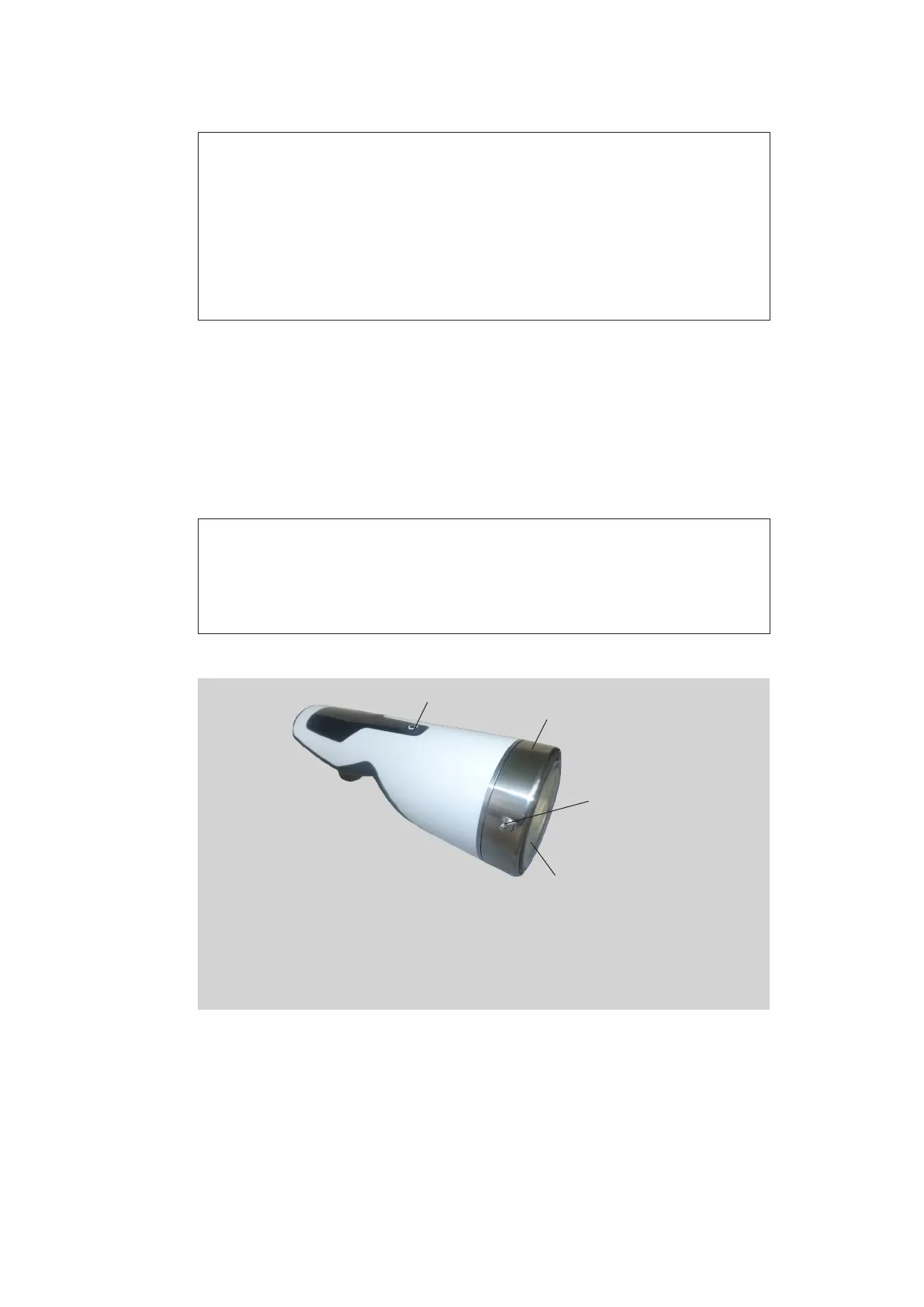

Fig. 3-3 F-SW handpiece or C-ACTOR handpiece
The coupling diaphragm is xed by a clamping ring and 3 xing screws. It can only be
opened from authorised personnel with special tools.
The penetration depth of the shock wave can be varied by stand-off devices.
