Chattanooga Intelect Focus Shockwave - Connecting power supply cables; Handpiece connection

13 610 02 1018
22
Installation Instruction

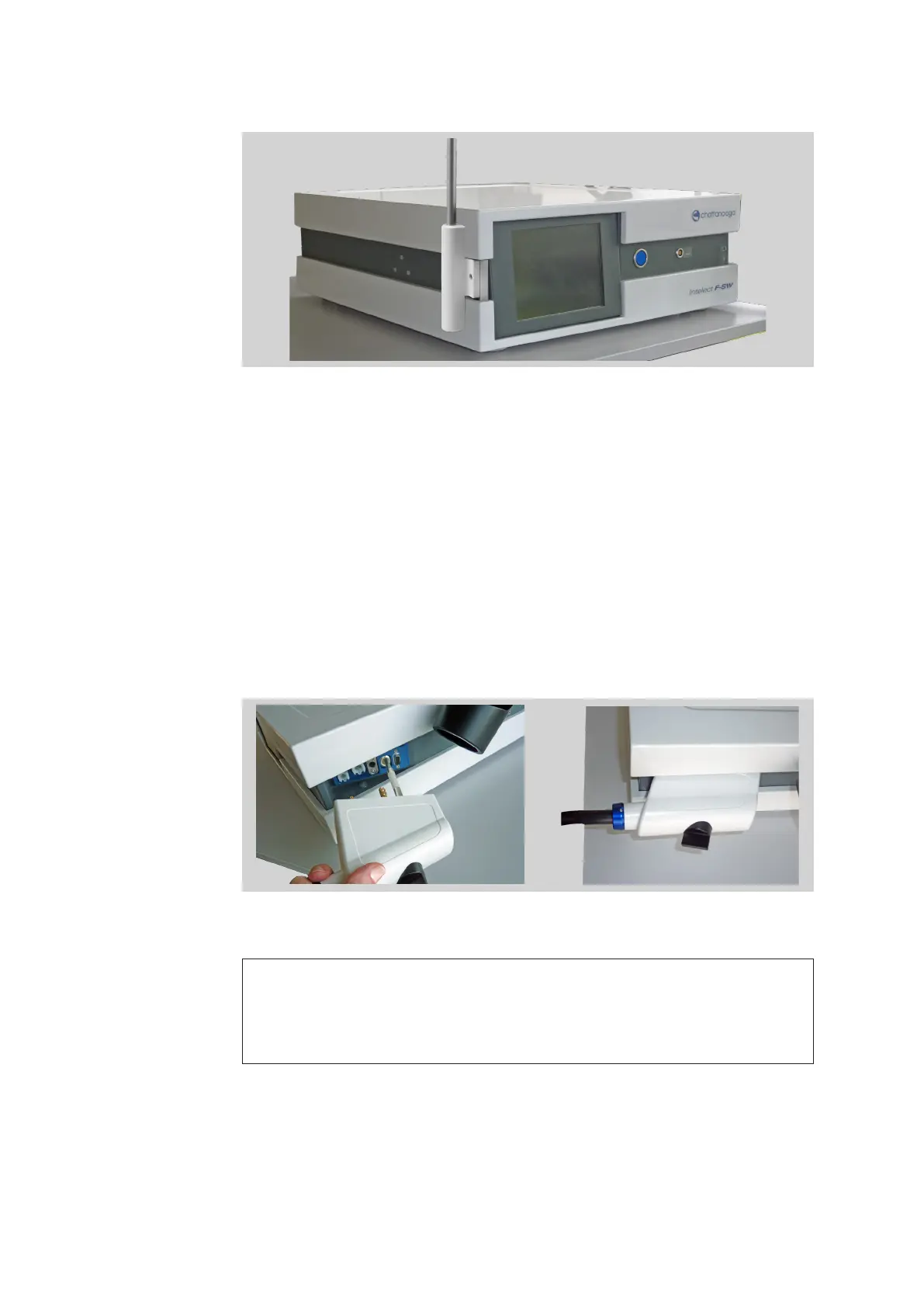

Fig. 4-9 Holding arm attached
4.4.2 Connecting power supply cables
• Connect the Chattanooga Intelect F-SW via the mains cable to the mains connec-
tor (Fig. 3-2/3).
4.4.3 Handpiece connection
• Connect the connector of the F-SW handpiece to the handpiece connection
provided on the Chattanooga Intelect F-SW and secure it using the black locking
screw. The locking screw must be tightened up to the stop until nger-tight.
Fig. 4-10 Connecting the F-SW handpiece
NOTE
Fill the water circuit of the Chattanooga Intelect F-SW rst when the F-SW hand-
piece is rst connected after delivery. The instrument will signal “water level too
low” when it is switched on.
