Chattanooga Intelect Focus Shockwave - Handpiece holder installation; Installing the F-SW holding arm (optionally)

13 610 02 1018
21
Installation Instruction
4.4 Handpiece holder installation
The handpiece holder can be mounted on the right as well as on the left side.
• Use a 2.5 mm Allen key for installation.
• Screw the handpiece holder onto the right side wall of the Chattanooga Intelect
F-SW, as shown in the picture below.
1

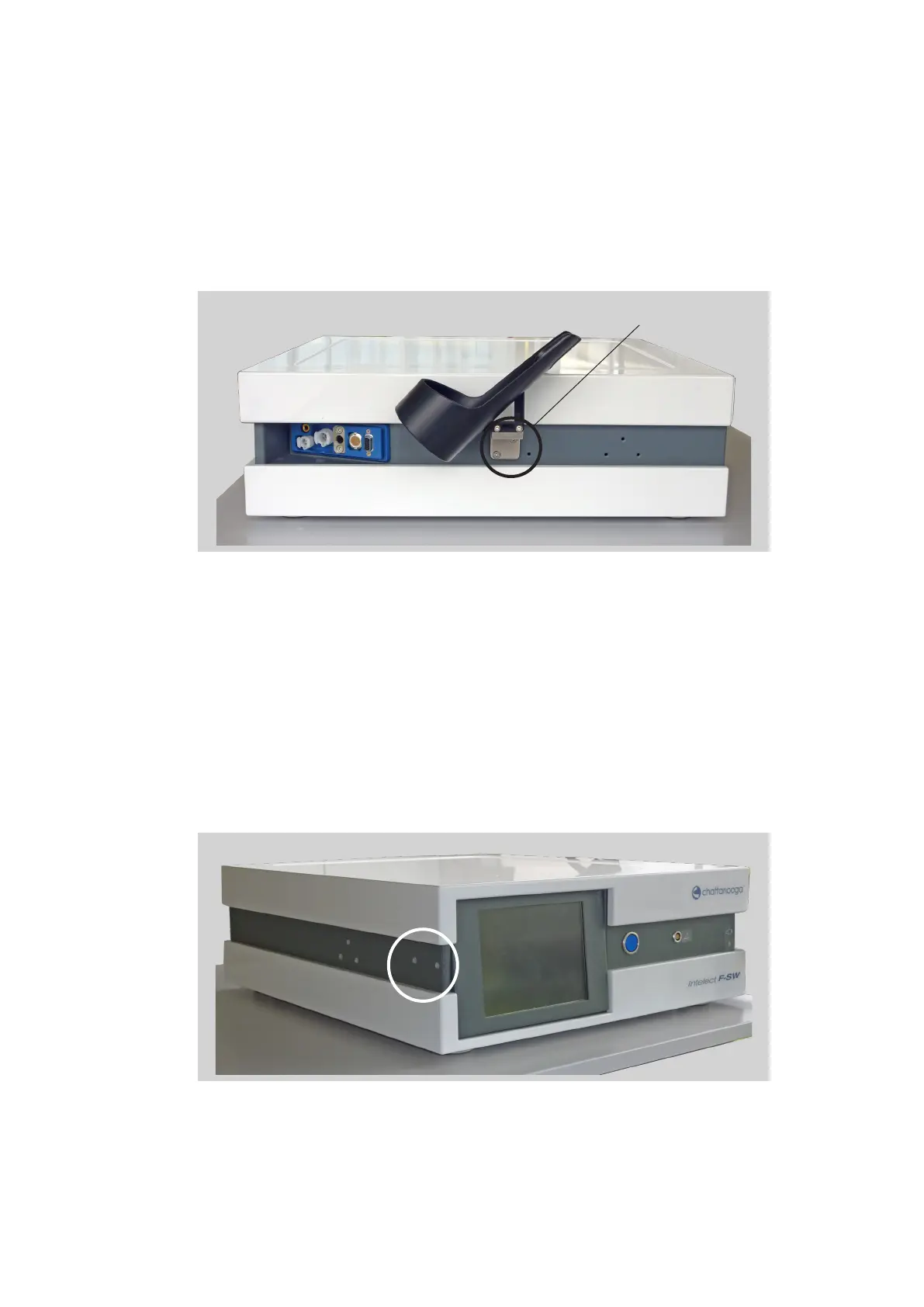

Fig. 4-7 Mounted handpiece holder
4.4.1 Installing the F-SW holding arm (optionally)
To facilitate handling of the F-SW handpiece, you can hook the F-SW
handpiece onto the optionally available holding arm.
• Use a 2.5 mm Allen key for installation.
• Screw the holder for the arm rmly onto the holes provided for it on the left of the
instrument (see picture below).
Fig. 4-8 Attachment holes for the holding arm
• Place the holding arm into the holder.
