Ciara Enterprise/Discovery 945GTP
- 27 -
Back Panel Connectors
Description
A PS/2 mouse port [Green]
B PS/2 keyboard port [Purple]
C Serial port A [Teal]
D Parallel port [Burgundy]
E VGA port
F USB ports (two)
G LAN
H USB ports (two)
I Audio line in/Retasking Jack [Blue]
J Mic in/Retasking Jack [Pink]
K Front left/right channel audio out/Two channel audio line out/Retasking Jack [Lime green]

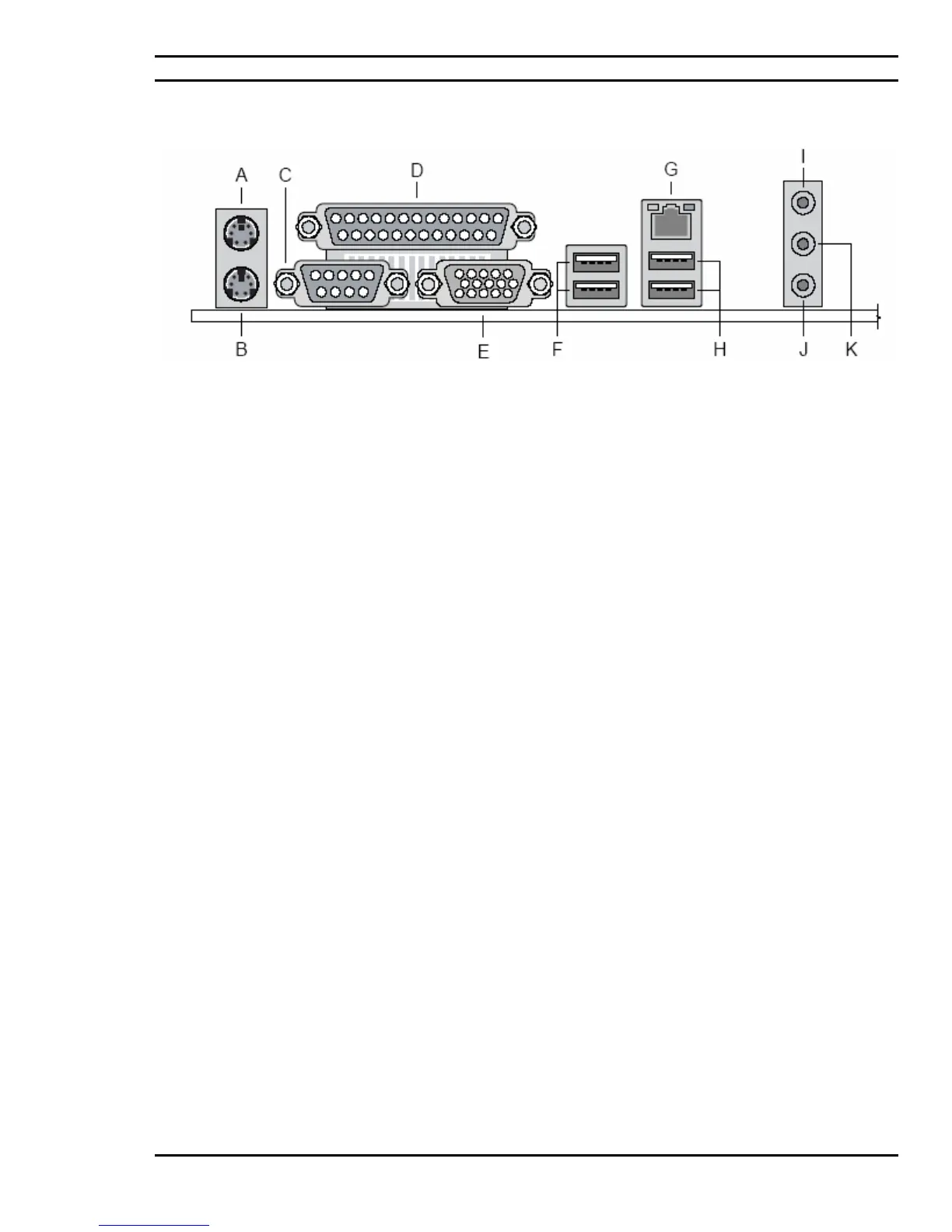

Figure 3.2: Back Panel Connectors
