CIGWELD WeldSkill 4R Wirefeeder - 7.03 Front Panel Assembly Removal

WELDSKILL 250, 350 DISASSEMBLY pROCEDURE
Disassembly Procedure 4 Manual 0-5186

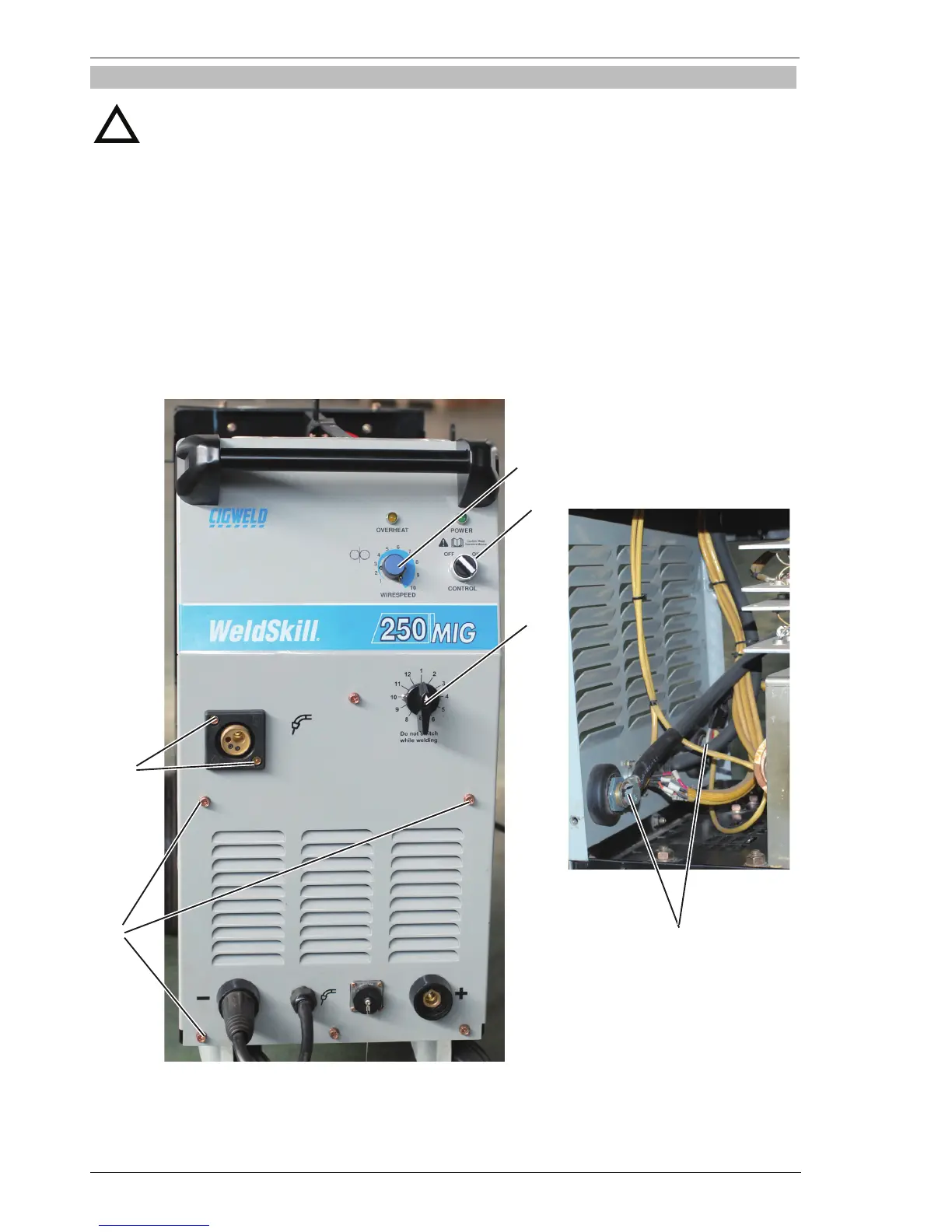

7.03 Front Panel Assembly Removal
!
Read and follow safety information in Section 6.02 before proceeding with disassembly
1. Remove wirespeed control knob by loosening the set screw.
2 Remove output voltage select switch by loosening the set screw.
3. Output terminal bolts. Unscrew power supply output terminal bolts.
4. Mig torch adaptor, remove adaptor cover by loosening the set screw.
5. Remove ON/OFF switch.
6. Remove 4R wirefeeder control socket wires
7. Screws on front panel
1
2
3
4
5
7
Art # A-10203
