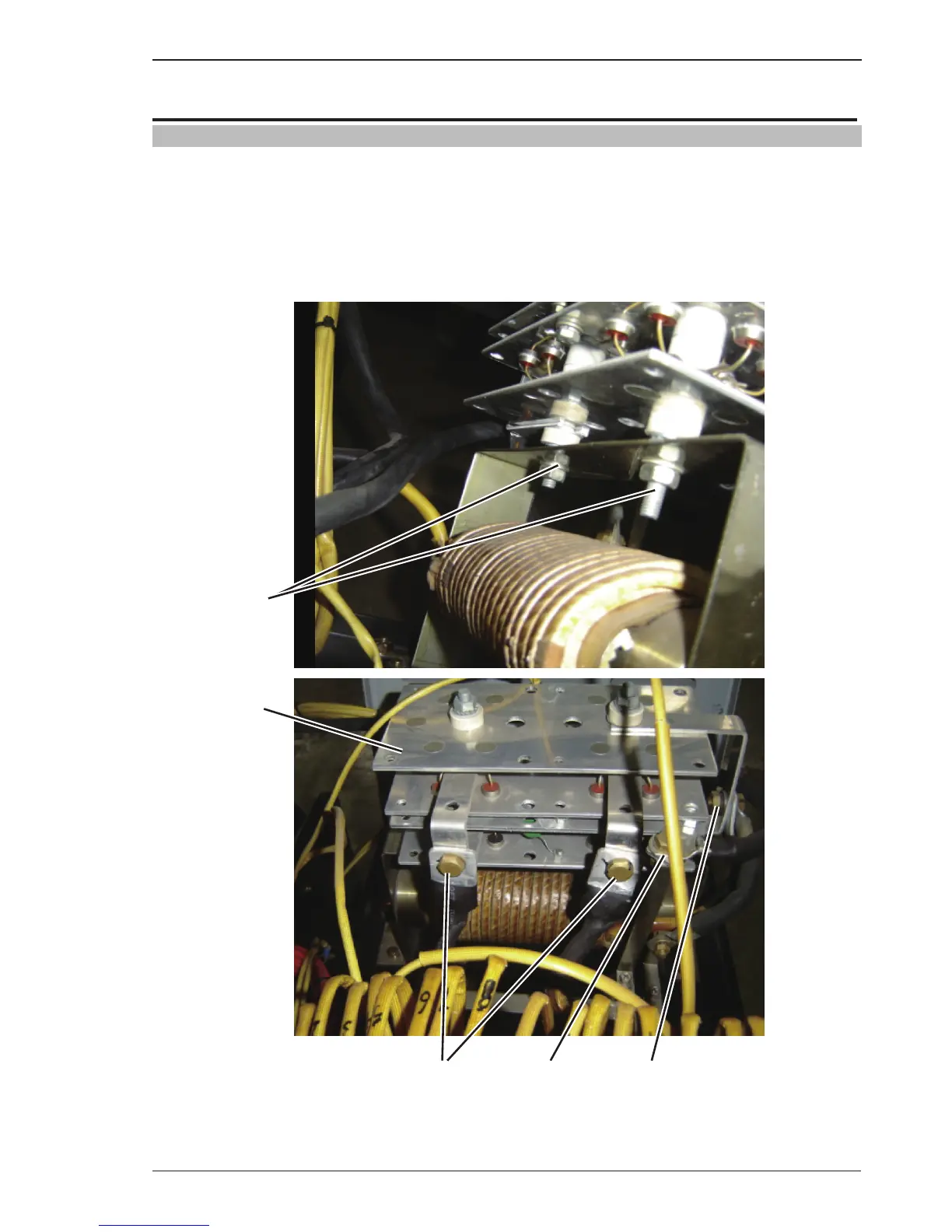

8.01 Installing Output Rectifier Assembly
1. Main output rectifier assembly.
2. Install main rectifier assembly to inductor plate.
3. Reconnect secondary of main transformer to rectifier.
4. Reconnect positive dinse to rectifier output positive.
5. Reconnect negative dinse to rectifier negative.
