WELDSKILL 250, 350 DISASSEMBLY pROCEDURE
Disassembly Procedure 6 Manual 0-5186

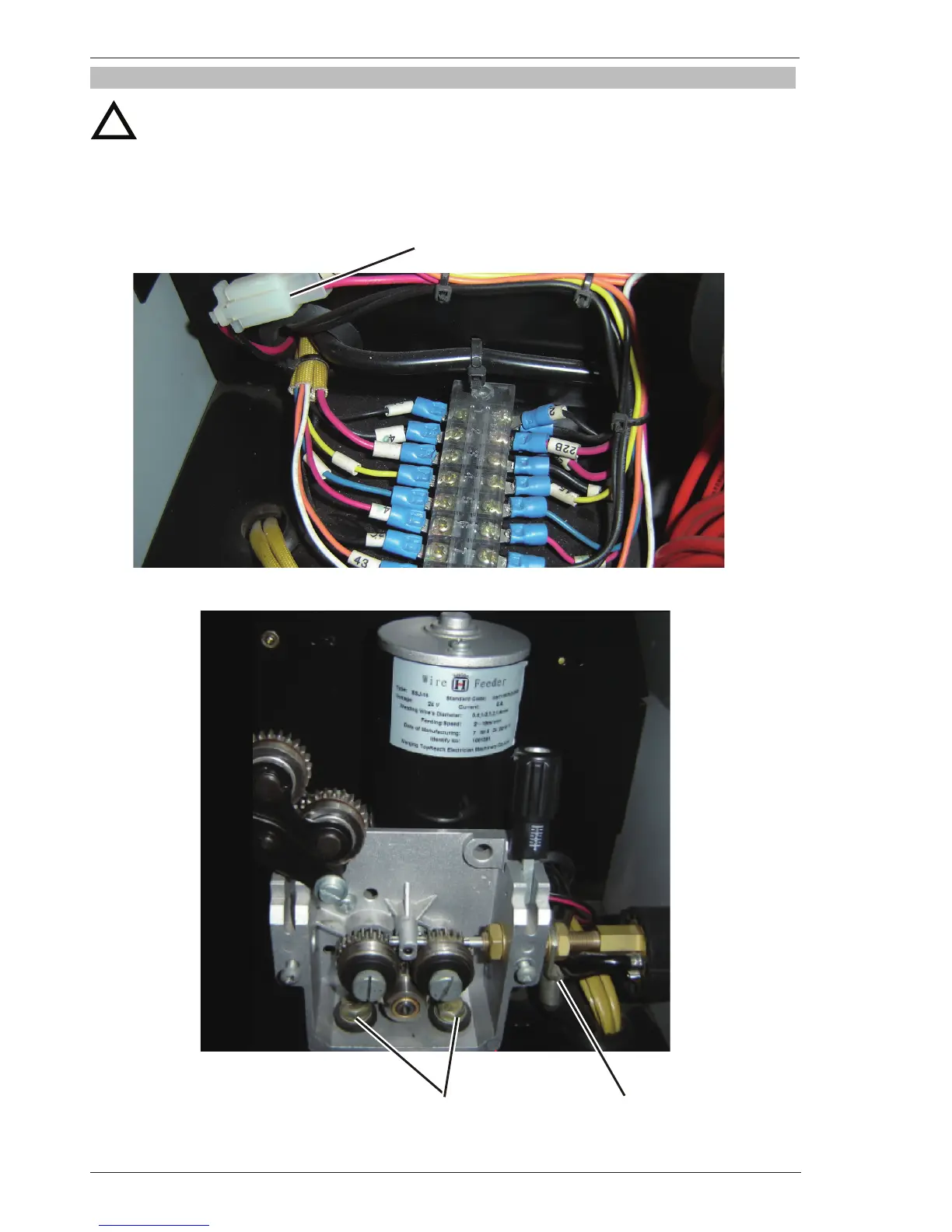

7.04 Wirefeeder Assembly Removal
!
Read and follow safety information in Section 6.02 before proceeding with disassembly
1. Disconnect the wirefeeder connector.
2. Unscrews the wirefeeder fixed bolts.
3. Unscrew torch polarity lead cable terminal bolts and remove it.
2
3
1
Art # A-10205
