Assembly Procedures 8-2 Manual 0-5186
WELDSKILL 250, 350 ASSEMBLY pROCEDURES

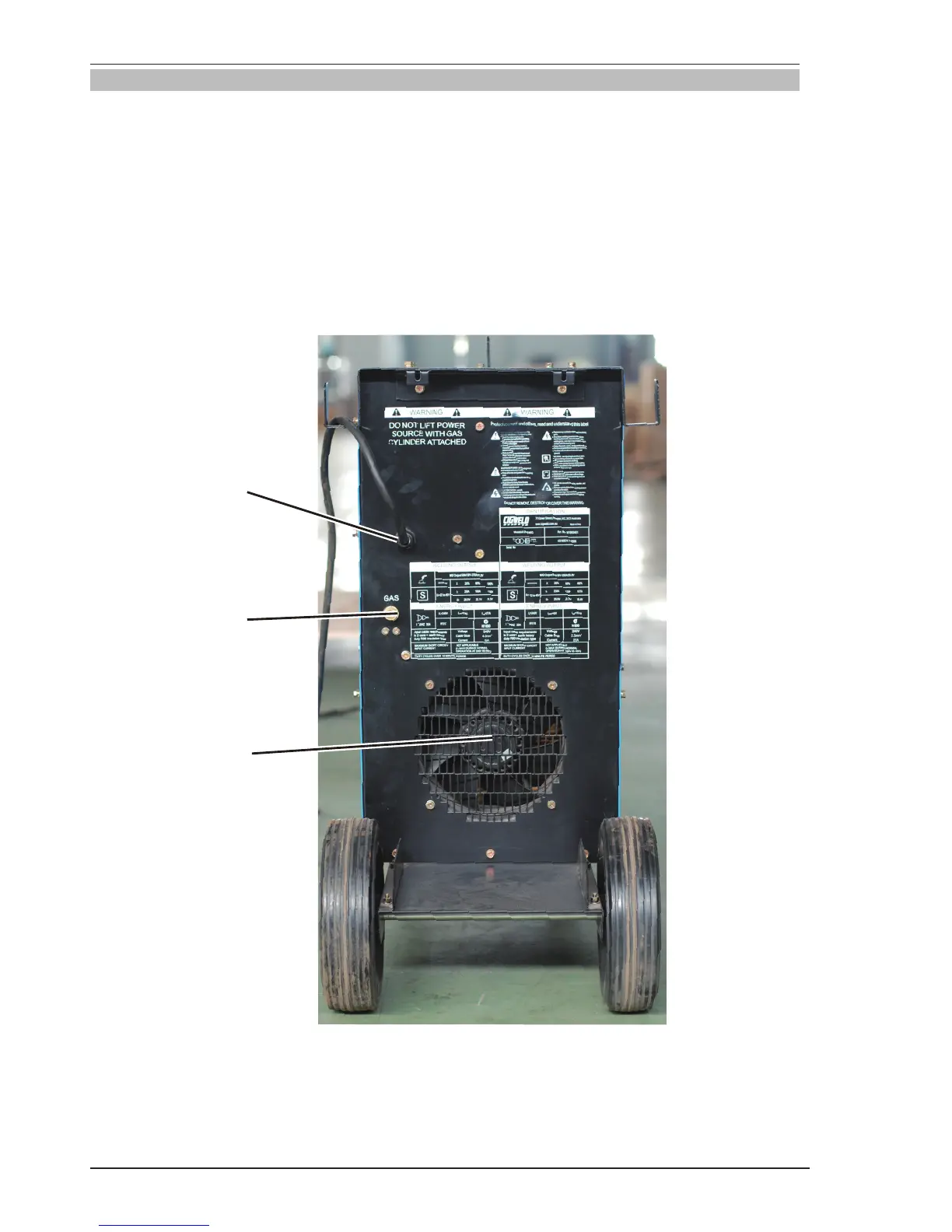

8.02 Installing Back Panel
1. Install power cord (clockwise rotation until tight).
2. Install gas inlet.
3. Install fan.
4. Reconnect Rear Panel screws.
5. Reconnect power cord to cable anchorage.
6. Reconnect power cord ground wire to rear panel.
7. Reconnect input power cord to terminal from AC contactor.
8. Reconnect control wires to fan.
1
2
3
Art # A-10274
