4-13
Manual 0-5186
OpERATION WELDSKILL 250, 350
Operation
4.08 Wire Reel Brake
The wire reel hub incorporates a friction brake which is adjusted during manufacture for optimum breaking.
If it is considered necessary, adjustment can be made by turning the large nut inside the open end of the hub
clockwise to tighten the brake. Correct adjustment will result in the wire reel circumference continuing no
further than 20mm after release of the trigger. The electrode wire should be slack without becoming dislodged
from wire spool.
CAUTION
Overtension of brake will cause rapid wear of mechanical WIREFEED parts, overheating of electrical
component and possibly an increased incidence of electrode wire Burnback into contact tip.

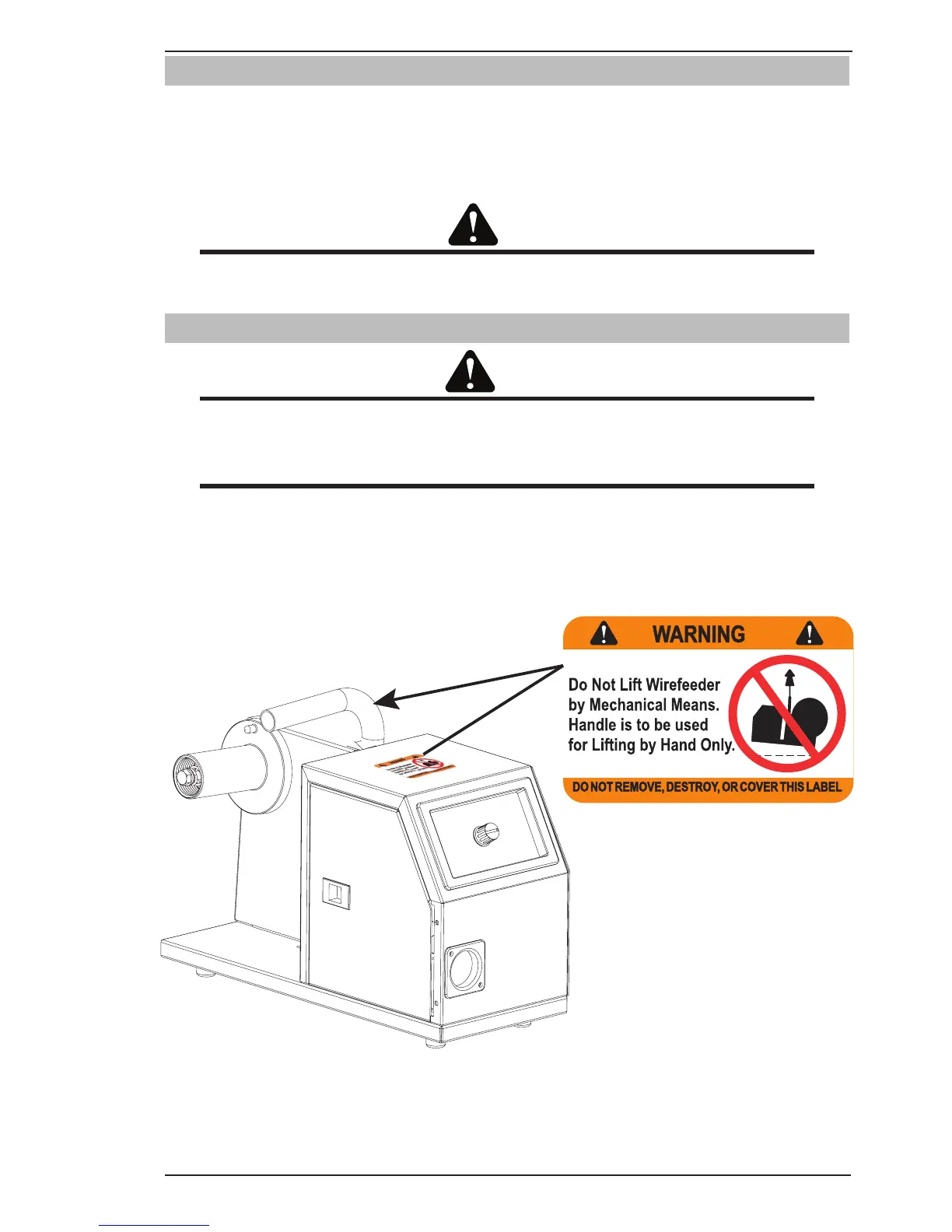

4.09 How to Lift WELDSKILL 4R Wirefeeder
WARNING
DO NOT lift the WELDSKILL 4R Wirefeeder by the Handle using mechanical means. The WELD
-
SKILL 4R Wirefeeder may fall from a hook/mechanical hoist as the small bracket on the handle is
not designed to secure a lifting hook/mechanical hoist in the corner of the Handle. The Handle is
designed for lifting by hand only.
The WELDSKILL 4R Wirefeeder Handle is designed for lifting the Wirefeeder by hand only.
Handle
Art # A-11480
