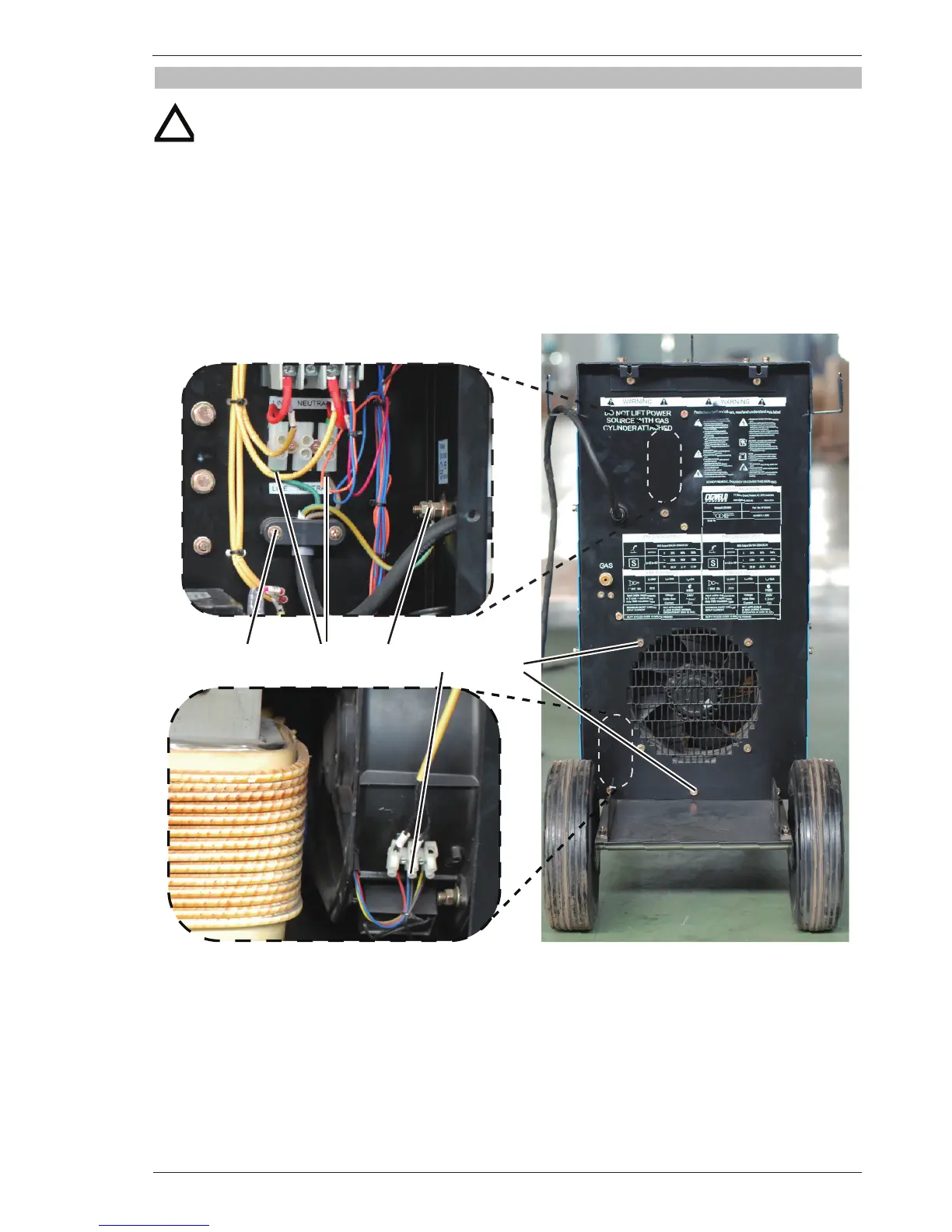

Read and follow safety information in Section 6.02 before proceeding with disassembly
1. Disconnect input cord from terminals.
Ground wire screw.
2. Disconnect power cord form cable anchorage.
3. Disconnect input cord ground wire from rear panel.
4. Disconnect the fan control wires from terminal.
5. Unscrew the rear panel fixed screw.
1
3
4
2
5
Art # A-10206
To Next Page
