Cima PLUS - Page 13

3-2012
Plus 42 - 45 - 50 - 55
5
95065
2,5 atm
95056
95056
95058
95084
- WARNING: NEVER OPERATE
THE SPRAYER WITHOUT LIQUID
IN THE TANK
- INDICATION OF THE
WHEELS OPERATING
PRESSURE
(accessory)
- INDICATION ON THE OPERATION OF
THE 3-WAY TAP (P2)
- HOOKING POINT
FOR THE LIFTING
OF THE MACHINE
- INDICATION ON THE
OPERATION OF THE
RINSING TAP (P15)
(For models on
which it is forseen)

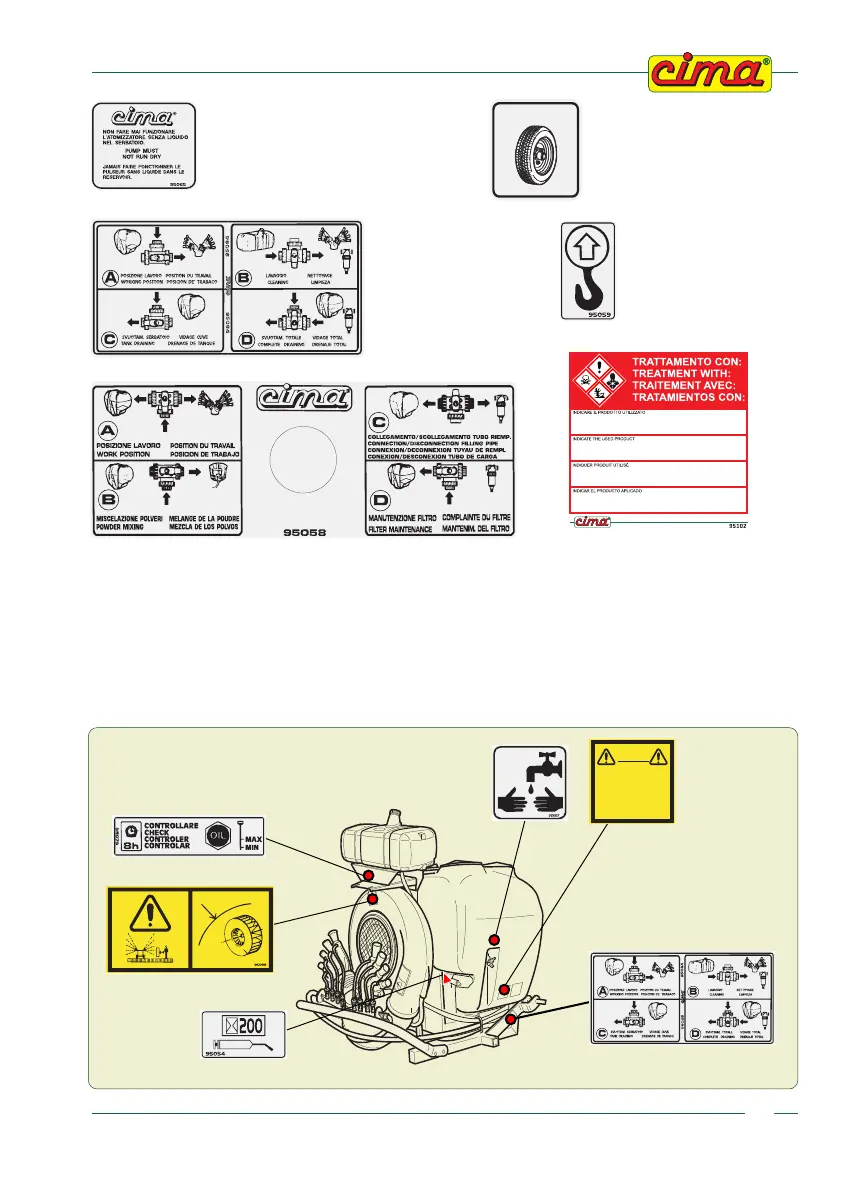

Positioning of the safety, use and maintenance decals
NOTE: The numbers with the asterisk (*) indicate the adhesives relevant either to
optional components or to accessories to be applied ONLY on the models and
versions on which this is foreseen.
95059
95084 (*)
95054
95099
95012
ATTENZIONE
MONTARE LE RUOTE
DOPO AVER AGGANCIATO
LA MACCHINA AL SOLLEVATORE
SMONTARE LE RUOTE
PRIMA DI STACCARE
LA MACCHINA AL SOLLEVATORE
95012
95079
00675
FAN SHAFT
BEARINGS
(For models on which
it is forseen)
FAN
TIGHTENER
SUPPORT
For models with rinsing tank
95058
- INDICATION OF THE
CHEMICAL EMPLOYED
FOR THE TREATMENT
