Cima PLUS - Replacement of Electrical Panels Fuses; Pressure Gauge Replacement

3-2012
Plus 42 - 45 - 50 - 55
65
00101
ELECTRICAL
CONTROL
PANEL
FUSE

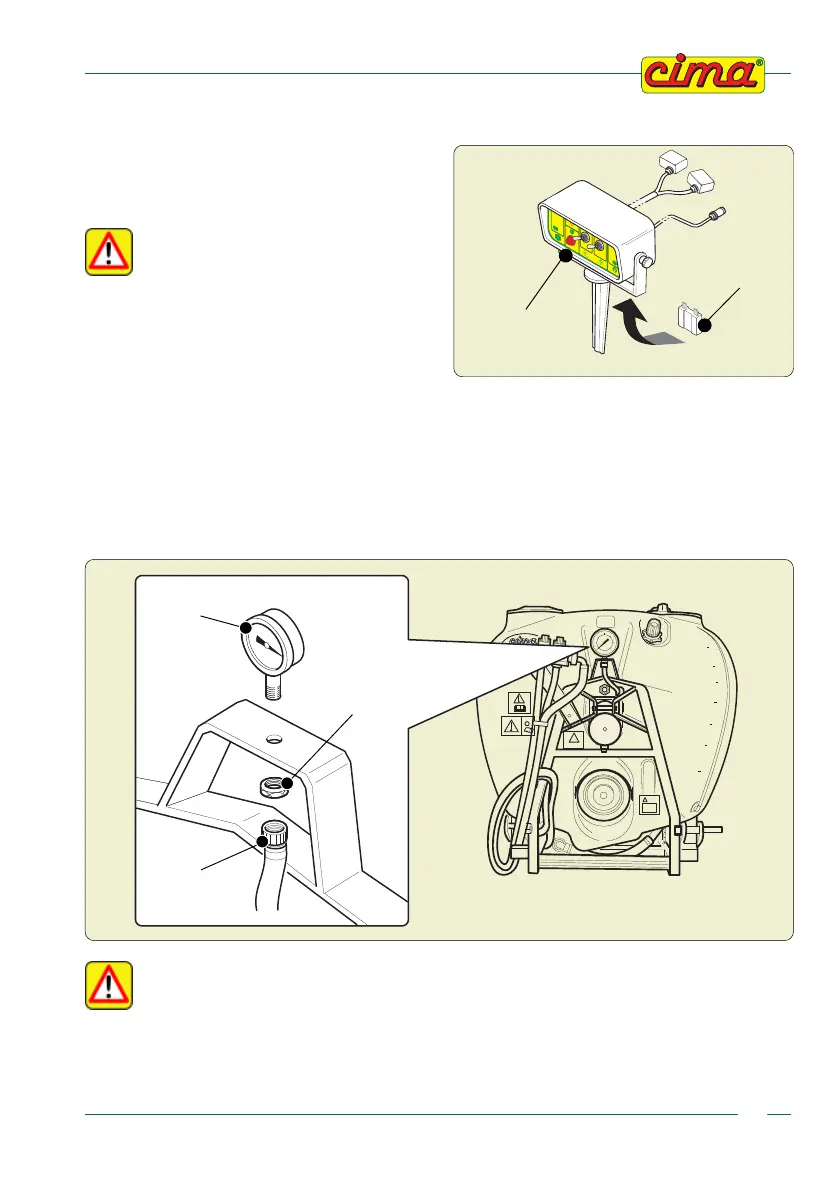

15.2. - REPLACEMENT OF ELECTRICAL PANEL’S FUSES
15.3. - PRESSURE GAUGE REPLACEMENT
1. Unscrew and decouple the pipe-holder (3) from the connection of the pressure gauge (1).
2. Unscrew the ring nut (2) and remove the pressure gauge (1).
3. Replace the faulty pressure gauge (1).
4. Mount the new pressure gauge, by carrying out in reverse order the steps mentioned for its
removal.
1. Replace the faulty fuse and screw back the
cover.
· Fuse: 10 A, delayed.
ANY OTHER INTERVENTION HAS TO BE
CARRIED OUT AT A C.I.M.A. CUSTOM-
ERS’ SERVICING CENTER.
350
300
250
200
150
100
50
50 Pl
2000
00309
1
3
2
®
+
-
ON
ON
OFF
OFF
Spin
Remote Control
HO
2
Press.
Pump
ANY OTHER INTERVENTION HAS TO BE CARRIED OUT AT A C.I.M.A. CUSTOMERS’
SERVICING CENTER.
