Cima PLUS - Positioning of Fan Casing; Elbow Fittings of Distribution Devices

3-2012
Plus 42 - 45 - 50 - 55
35

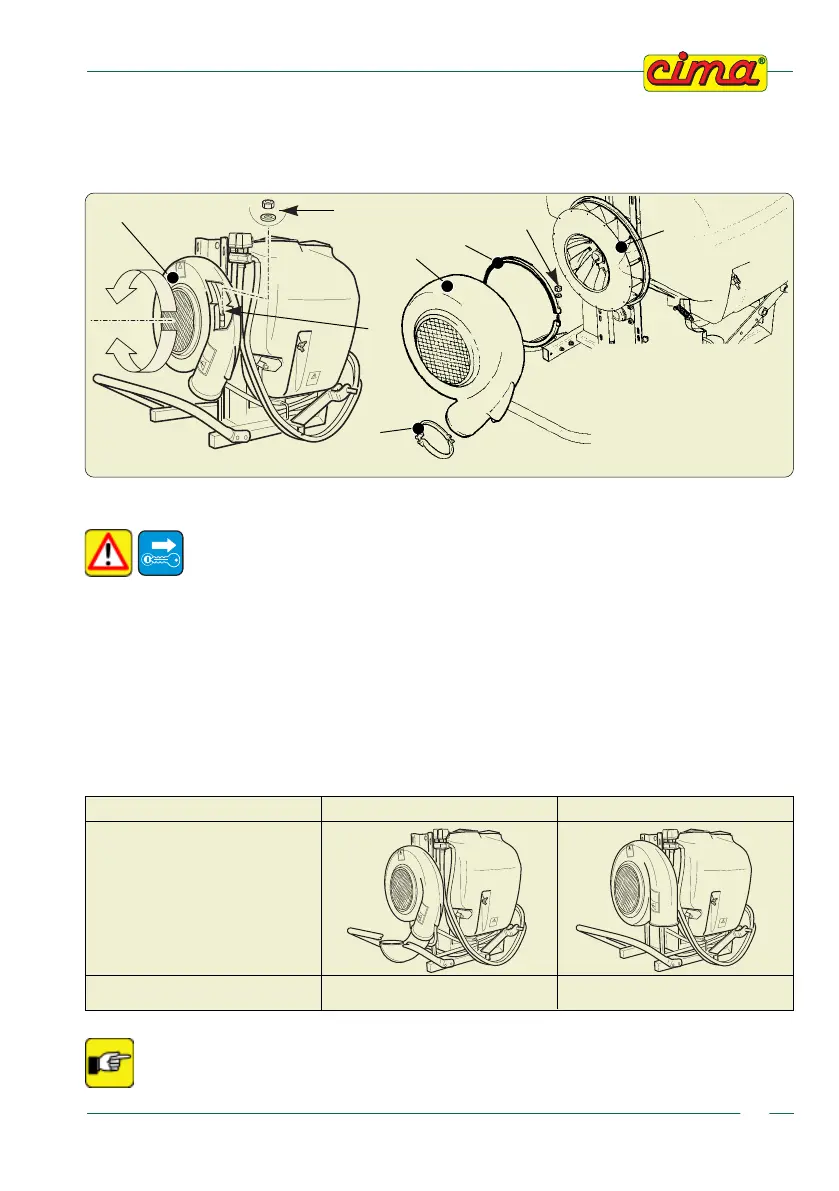

6.1 - POSITIONING OF FAN CASING
The fan’s air outlet must be positioned according to the distribution device to be mounted and the
modality in which it is to be utilised. The operation is possible since the fan’s casing can be rotated on
its axis up to 360°.
POSITIONING OF THE CASING:
1. Position the sprayer on the ground if it is mounted on the tractor.
Switch off the tractor and remove the key from the control panel.
2. By undoing the locking nut, loosen the collar which supports and locks the casing to the frame,
located opposite the suction grill.
3. Rotate the casing and place the outlet in the position necessary for assembling (indications
contained in the use and maintenance booklet of the distribution device).
4. After this has been done fasten the collar again.
6.2 - ELBOW FITTINGS OF DISTRIBUTION DEVICES
The elbow fittings support and connect the distribution devices to the fan casing. Several types are assembled
on available standard machines, while others,must be supplied together with the distribution device.
In the “Distribution Heads - Operation and maintenance instruction” the type of elbow
necessary for the connection is specified together with the assembling instructions.
PLUS SERIES 42 - 45 - 50 55 - 55S - 55E
SPRAYER PROVIDED WITH 180° ELBOW WITHOUT ELBOW
STANDARD
BASIC
MODELS
00144
00145 00187
5
3
4
2
00980
2
5
1
4
LEGEND
1. ELBOW LOCKING COLLAR
2. FAN CASING
3. FAN
4. NUT
5. FAN CASING
LOCKING COLLAR
