P26. NIPPLE FOR FLOWMETER CONNECTION
The 1”M/M nipple is placed between the delivery pipe for the sprayhead (T4) and the manual distributor
(P9), and it allows to disconnect the pipe and place a flowmeter between the pipe itself and the electrical
distributor, to be used for the periodical revising tests.

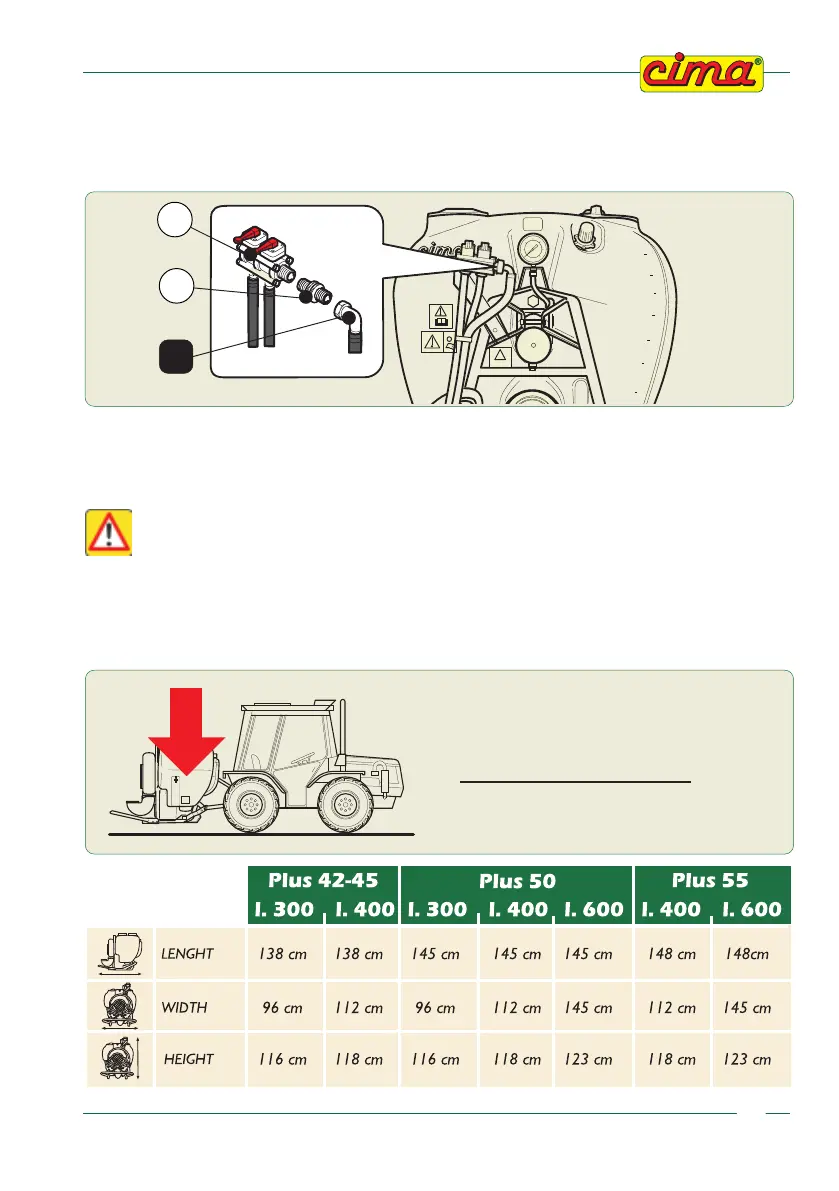

4.4 - TECHNICAL DATA
4.4.1 - Sprayers dimensions and
weights
On the identification plate, the full-load weight (PESO T.) of the machine is indicated,
measured WITHOUT the distribution device, and WITHOUT the accessories possibly
installed.
In order to calculate the weight on the hoister in operative conditions (at full load), add
to the weight indicated on the identification plate (PESO T.), the weight of the
installed accessories, the weight of the distribution device which is used (see
“Distribution devices – Use instructions” manual), and the 50% of the weight of the
used cardan shaft (see the relevant specific manual).
01123
PLUS_001
= WEIGHT ON THE TRACTOR
THREE-POINT HOISTER
TOTAL WEIGHT (PESO T.)
+ SPRAYHEAD WEIGHT
+ ACCESSORIES WEIGHT
+ 50% CARDAN SHAFT WEIGHT
P9
T4
350
300
250
200
150
100
50
P26
