13.4 - CLEANING OF FILTER’S CARTRIDGE
7. Reassemble the cartridge and secure the lid with the thumb screw. Pay attention to the O-Ring
of the lower body during the assembly: the incorrect sealing of the filter will jeopardise the
proper operation of the sprayer and cause loss of the mixture.
13.5 - PURGING OF RESIDUES FROM FILTER
With the machine in operation and the taps of the manual (P9) or electrical (E9) distributor closed.
Opening the powder mixer tap (P12) (or the self-cleaning filter faucet P25 - for versions where it is
foreseen) the delivery flow will drag possible sludge to the bottom of the filter within the tank through
the piping (T6) thus partially cleaning the filtering cartridge. Close the tap when the operation is
completed.
When the machine is in operation, check that the drain tap (P12) (or P25) is closed
before opening the main feeder.

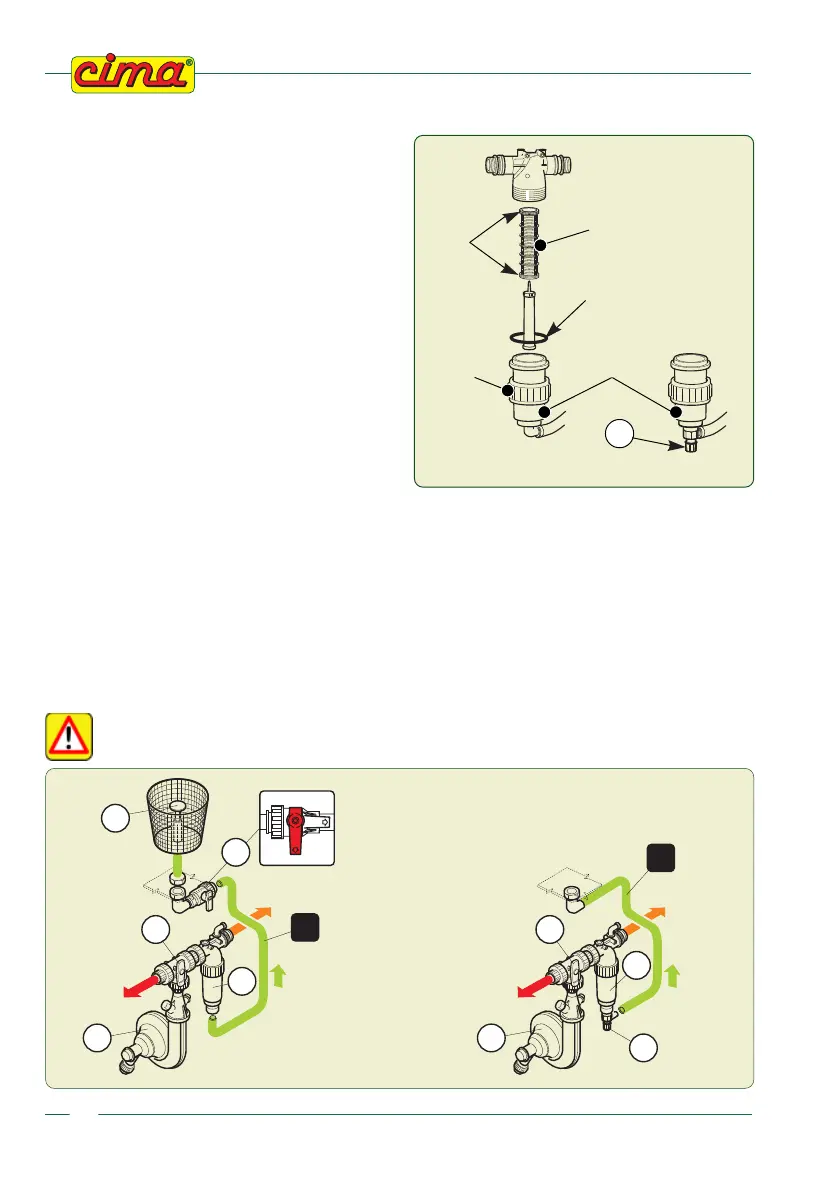

00306
FILTERING
CARTRIDGE
O.RING
O.RING
LOWER
BODY
OF FILTER
KNOB
1. Set the lever of 3-way tap (P6) to the “d”
position
2. Completely close the pressure regulator, by
turning clockwise the handle of the manual
regulator (P5) or by turning the pressure up
(keep the joystick on “+” for about 15 secon-
ds) if the atomizer is provided with electric
regulator (E5).
3. Verify that the faucet (P12) of the powders
mixer (or the faucet of the self-cleaning filter
P25 - for the versions provided with) is
closed.
4. Close the manual distributor’s taps (P9) or
position the switches of the control electric
switchboard (E10) on “OFF”
5. Undo the thumb screw and remove the body
of the filter.
6. Extract the cartridge: clean the grill and the
retaining O.Ring.
P2 5
*
* for versions where it is foreseen
P6
P4
P7
T6
P13
a
c
P12
P6
P4
P7
T6
P25
*
*
*
* for versions where it is foreseen
00975
