Cima PLUS - Fan Shaft Support Oil Level Check; Fan Shaft Support Oil Replacement

3-2012
Plus 42 - 45 - 50 - 55
55

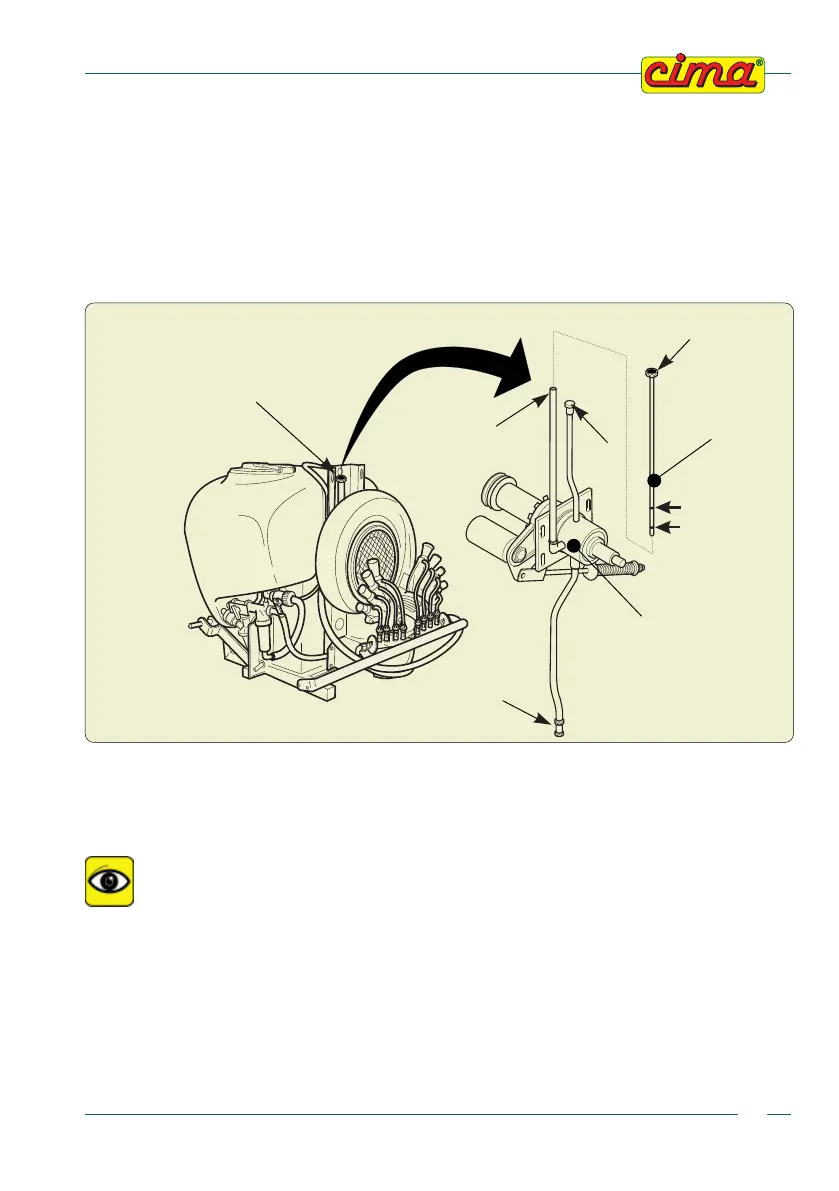

13.2 - FAN SHAFT SUPPORT OIL LEVEL CHECK
(for version where it is foreseen)
1. Unscrew and remove the oil filling plug with the dipstick.
2
. Clean the dipstick and introduce it again.
3. Extract the dipstick and check the oil level, which has to be between the two minimum and maximum
level notches of the dipstick itself.
Should it be necessary to top up the level, add some SAE 90 oil, up to reach the dipstick upper notch
(MAX).
4. Introduce and screw the oil filling plug with the dipstick.
13.3 - FAN SHAFT SUPPORT OIL REPLACEMENT
(for version where it is foreseen)
Let the fan support oil replacement intervention be carried out at a C.I.M.A.
customers’ service centre, or observe the regulations in force for the disposal
of the used oil.
1. Unscrew and remove the oil filling plug with the dipstick.
2. Remove the oil drain plug and let the oil completely flow out from the fan shaft support.
3. Check the oil drain plug and the relevant seal for integrity, replace them, if necessary, and close
again the oil drain plug.
4. Through the filling pipe, pour a SAE 90 oil proper quantity, up to reach the MAX notch on the dipstick:
- about 0,19 kg for the PLUS 42 and 45 models
- about 0,24 kg for the PLUS 50 and 55 models.
5. Position again the plug with the dipstick and close the oil filling pipe.
MAX
MIN.
BREATHER
PIPE
OIL DRAIN
PLUG
FAN SHAFT SUPPORT
OIL FILLING PLUG
WITH DIPSTICK
DIPSTICK
00307
OIL FILLING
PIPE
OIL FILLING PLUG
