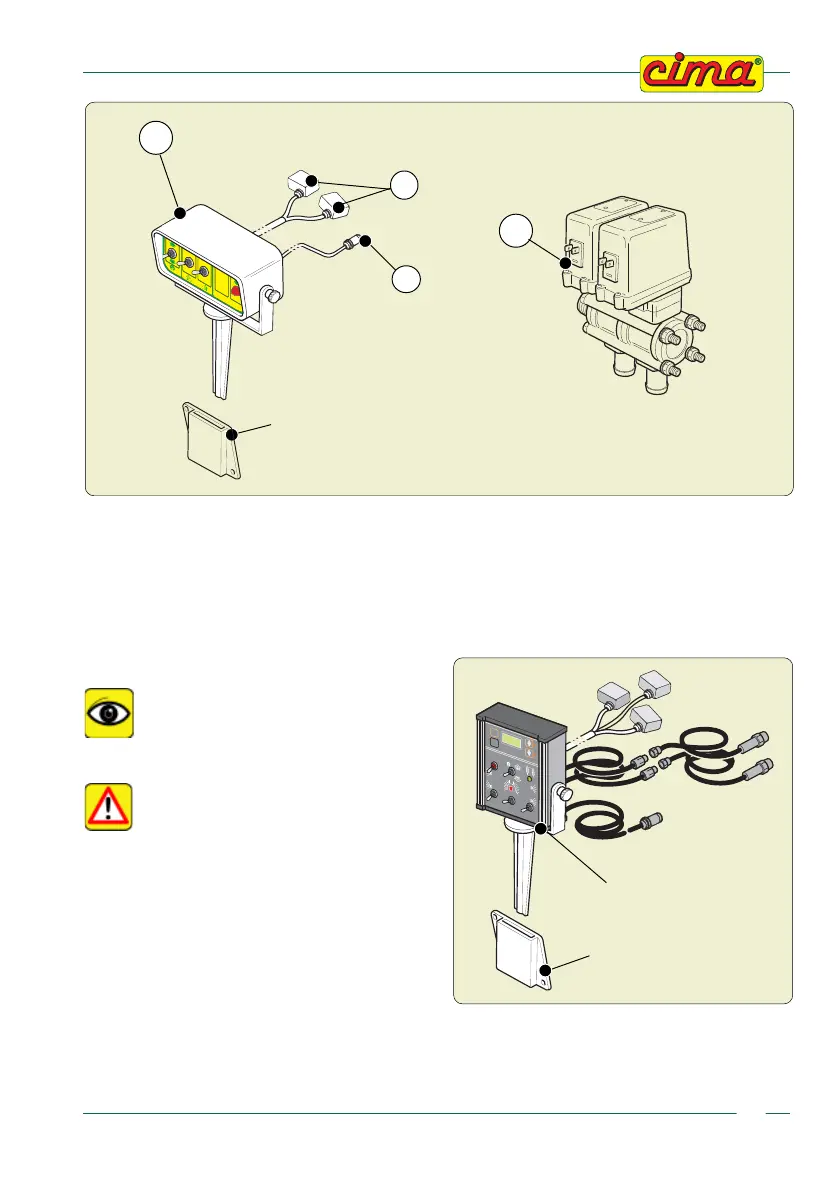

3-2012
Plus 42 - 45 - 50 - 55
33
ELECTRICAL
CONTROL
PANEL
TO THE
SERVICE
SOCKET
MOUNTING
BRACKET
E10
E9
®
+
-
ON
Remote Control
HO
2
ON
OFF
OFF
Pump
00085
TO THE ELECTRICAL
DISTRIBUTOR (E9)
W2
W1
00086
m.
AUT
MAN
ON
P
RO
CLR
ON
OFF
0 LHA
CONFIG 2
MOUNTING
BRACKET
E.P.A.
CONTROL UNIT
00930
IN CASE OF A PIPE BURST:
1 - Stop the tractor and remove the key from the control panel.
2 - Close the electrovalves (E9), the switches on the control panel (E10) must be on OFF.
3 - Place the lever of the 3-way tap (P6) in position "d".
4 - Replace the broken pipe (for the elimination of these parts, please follow the current regulations).
5.3.3 - E.P.A. Control Unit
Act in a similar way as indicated for
installing the electric control power
plant (E10) (see Paragraph 5.3.2.)
Position the electric cables in such a
way to prevent them from getting torn
during the treatment.
