Cima PLUS - 8 Filling; Foreword - Use of the Fan Disengagement; Disengagement of the Fan

3-2012
Plus 42 - 45 - 50 - 55
39
8 FILLING 8
FILLING MUST BE CARRIED OUT WITH THE MACHINE ON A FLAT SURFACE. ON THE SITE
BEFORE THE OPERATION, THE DOSES OR THE MIXTURES TO BE POURED INTO THE TANK
MUST BE PREDISPOSED.
IT IS NECESSARY TO ALWAYS MAKE USE OF PERSONAL PROTECTION.

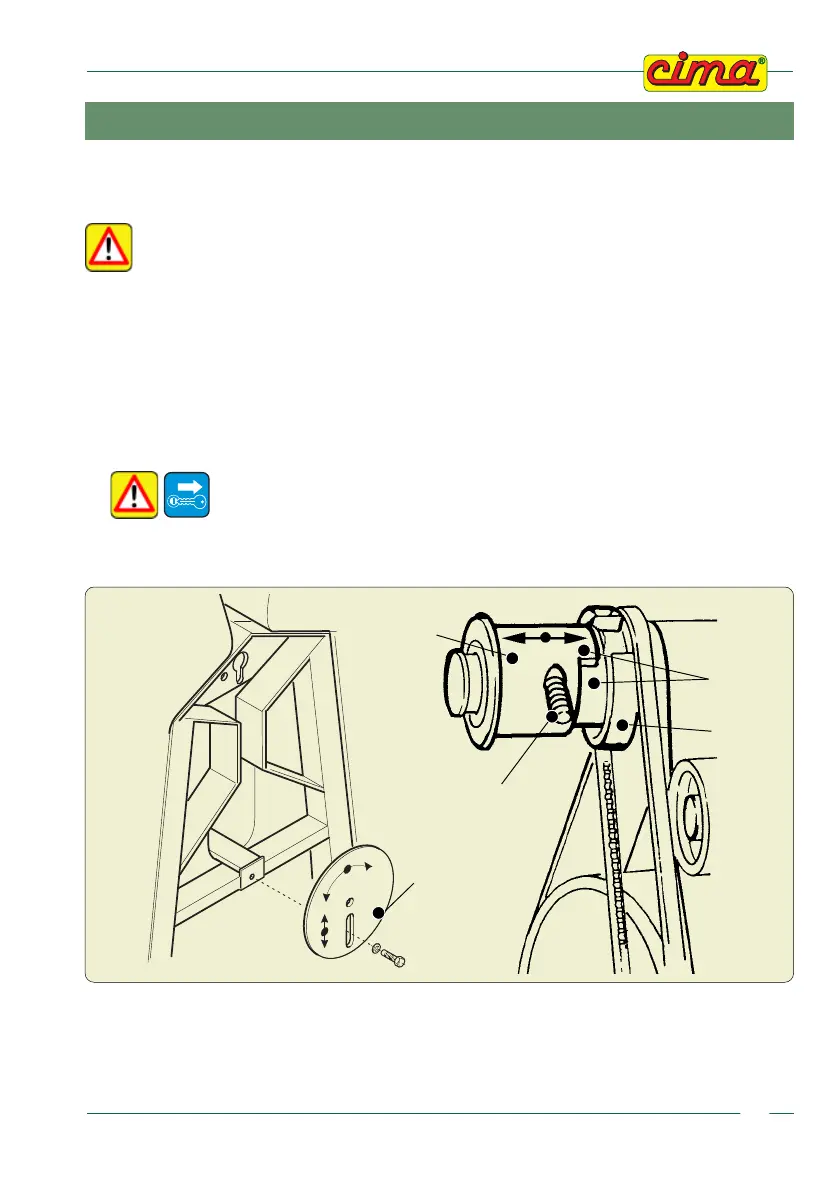

8.1 - FOREWORD - USE OF THE FAN DISENGAGEMENT
(for the version where foreseen)
8.1.a Disengagement of the fan
EXECUTION:
1. Take the sprayer to the area in which it is to be filled and rest it on the ground.
2. Stop the tractor, remove the key from the control panel and check that the fan has
stopped.
3. Undo the mobile protection cap’s fixing screw and rotate it so as to access the disengagement
tunnel.
4. Fully press the spring push button and pull the front element until it springs out. The body
disengaged from the retaining joint must turn freely: the pump will operate and the fan will thus be
excluded.
5. Reposition the mobile protection cover and fasten the locking screw properly.
6. Start the tractor, lift the sprayer to position the universal joint shaft and carry out the filling operation.
00092
00091
DISENGAGING
ELEMENT’S
FRONTAL
TEETH
PULLEY
SPRING
PUSH BUTTON
MOBILE
PROTECTION
COVER
