Cima PLUS - Centrifugal Pump CD32; Filters; Tanks; Fans

3-2012
Plus 42 - 45 - 50 - 55
29
00832

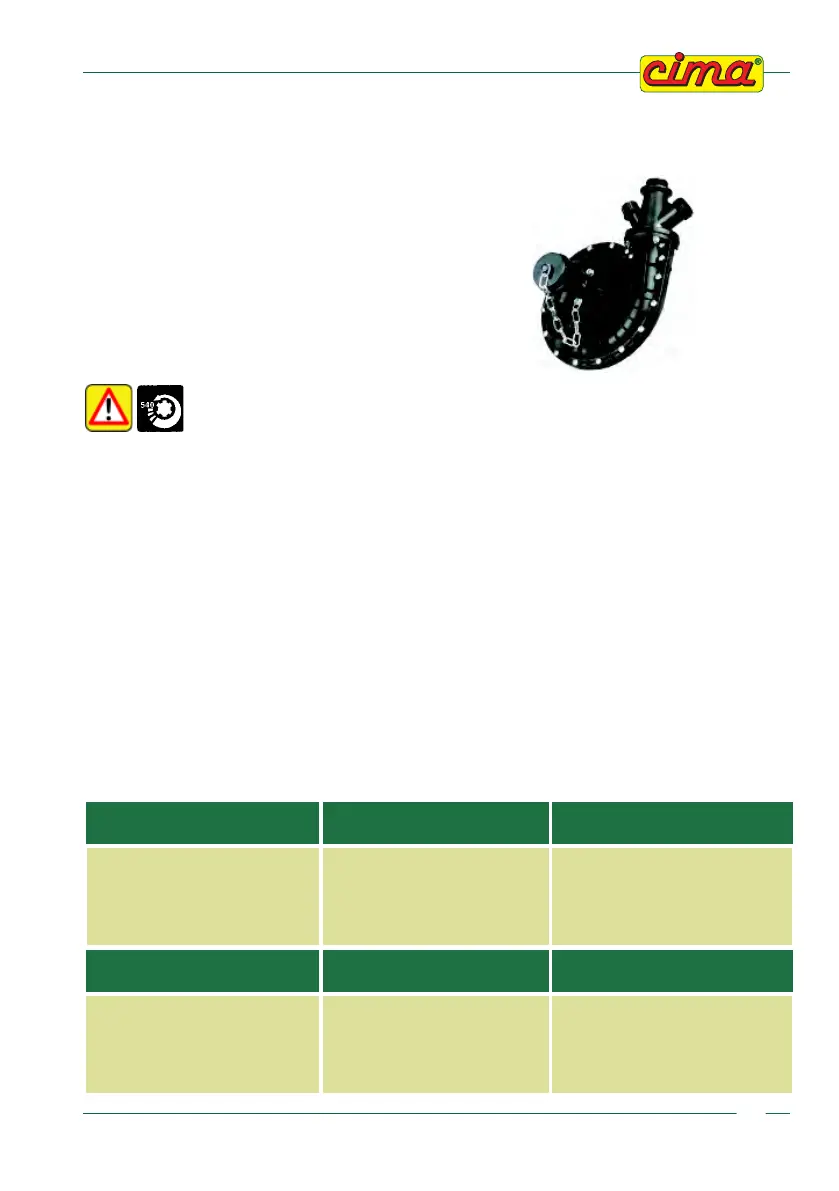

4.4.3 - Centrifugal pump CD32
Model C.I.M.A. CD32 - Grid/filter on suction - Drain plug - Filler for the connection of the filling pipe,
with plug with chain.
Activated with trapezoid belt driven by the pulley mounted on the fan shaft.
Technical data printed on the body of the pump.
— Speed ................................................... 4000 RPM Plus42
— Flow rate ......................................... 120 litres/min. Plus42
— Speed ...................................4250 RPM Plus 45-50-55S-E
— Flow rate ........................ 140 litres/min. Plus 45-50-55S-E
— Suction filter .............................................................. 7 mm
— Maximum pressure ......................................... 4.5 Kg/cm 2
— Power absorbed ..................................................... kW 2.1
The performance specified is obtained with the drive outlet (PTO) at 540 RPM For
a good result of the treatments this condition MUST ALWAYS BE OBSERVED
during the machine’s operation. Utilisation is permitted with speed rates ranging
between 500 and 620 RPM.
4.4.4 - Filters
Filter (P7) .............................................................................................................. 250 lt/min - 50 mesh
Tank filling filters...................................................................................................................... 18 mesh
Filler pipe filter
(optional) .................................................................................................................................. 16 mesh
4.4.5 - Tanks
Tank volume .............................................................................................................300-400-600 litres
Residual volume ...................................................................................................................... 5,6 litres
4.4.6 - Fans
Plus 42
Plus 45
Plus 50
Plus 55
550 mm
3700
: 14000 m /h
170 m/s
3
Diameter
rpm.
air delivery
air speed:
Plus 55 Super
Plus 55 Extra
550 mm
3500
: 12500 m /h
150 m/s
3
Diameter
rpm.
air delivery
air speed:
550 mm
3900
: 15500 m
3
/h
: 180 m/s
Diameter
rpm.
air delivery
air speed
450 mm Diameter
4000 rpm.
air delivery: 4000 m /h
air speed: 228 m/s
3
450 mm
4500
5400 m /h
188 m/s
3
Diameter
rpm.
air delivery:
air speed:
500 mm
4000
: 7750 m /h
175 m/s
3
Diameter
rpm.
air delivery
air speed:
