Plus 42 - 45 - 50 - 55
3-2012
64
15 REPAIRS ALLOWED 15
THE OWNER AND/OR THE OPERATOR OF THE SPRAYER ARE NOT PERMITTED TO MODIFY
THE STRUCTURE OR THE SPECIFIC OPERATION OF THE SPRAYER ITSELF. ANY REPAIR-
ING INTERVENTION HAS TO BE CARRIED OUT EITHER AT THE DEALERS’ OR AT THE
C.I.M.A. S.p.A. AUTHORIZED WORKSHOPS, OTHERWISE ANY KIND OF WARRANTY
IMMEDIATELY CEASES AND C.I.M.A. S.p.A. IS CLEARED OF ANY CONSEQUENT AND/OR
IMPLIED RESPONSIBILITY.
Stop the engine and remove the key from the tractor’s control panel before
any operation on the sprayer.

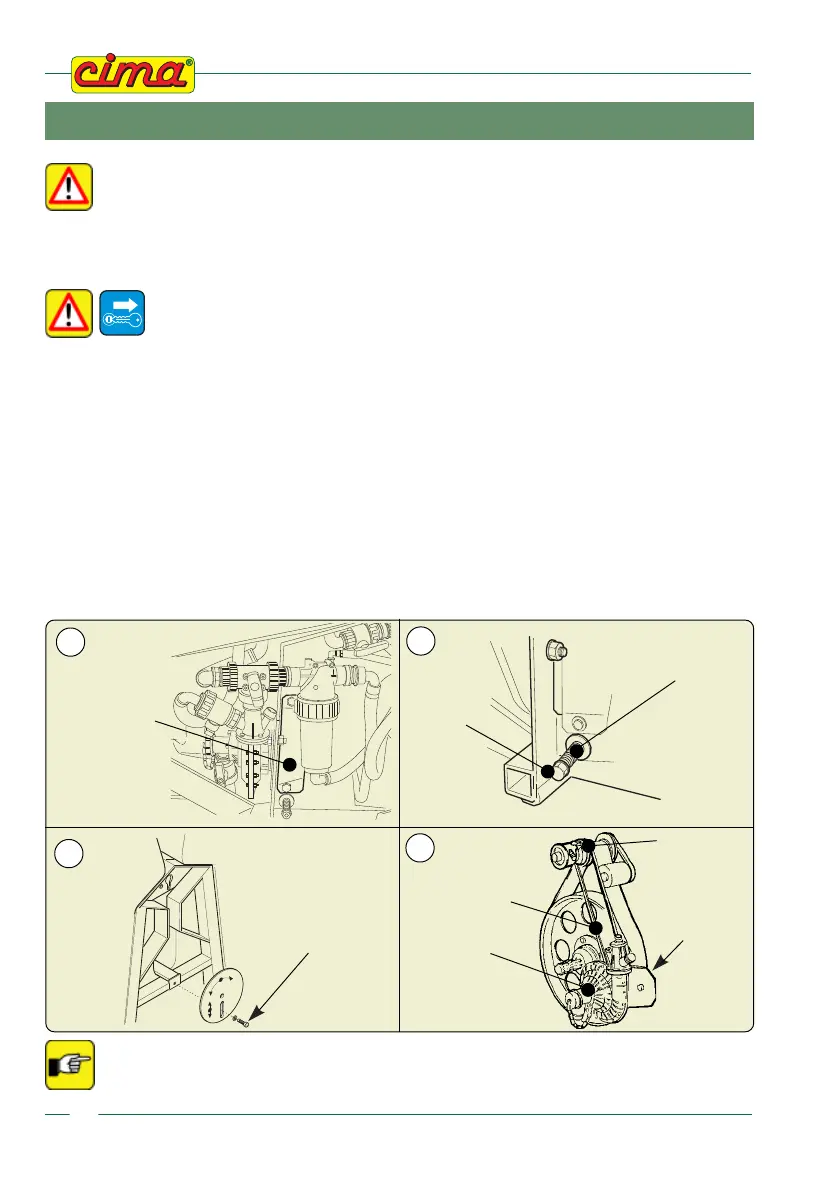

15.1 - REPLACEMENT OF PUMP CONTROL BELT
1. Remove the steel-plate guard located on the frame behind the pump, unscrewing the two securing
screws.
2. Completely unscrew the tightener spring adjusting screw: the pump support plate will so freely turn.
3. Unscrew the fixing screw and turn the mobile protection cover to approach the tunnel of the
disengagement.
4. Insert the pump control belt into the tunnel of fan disengagement. Feed the front part below the
disengagement area and the rear area above, until it enters the upper pulley groove beyond the
disengagement portion.
5. Insert the belt in the pump’s pulley groove.
6. Reinstate the spring of the belt-tensioner according to the suggested tensioning conditions.
7. Re-assemble the steel-plate protection guards.
Carefully tighten the screws that were undone during the belt replacement.
1
3
2
4
00091
GUARD SECURING
SCREW
00308
STEEL-PLATE
GUARD
00038
00014
TRAPEZOID
BELT
PUMP
BELT-TENSIONER
00100
ADJUSTING
SCREW
LOWER
PULLEY
UPPER
PULLEY
