11 TANK AND HYDRAULIC CIRCUIT DRAINING 11
- Stop the tractor and remove the key from the control panel.
- Wear suitable protective clothing and accessories in order to avoid
contamination by contact or inhalation of the mixture.
- Carry out the discharging in a suitable and properly geared area for the
collection of the washing liquid.

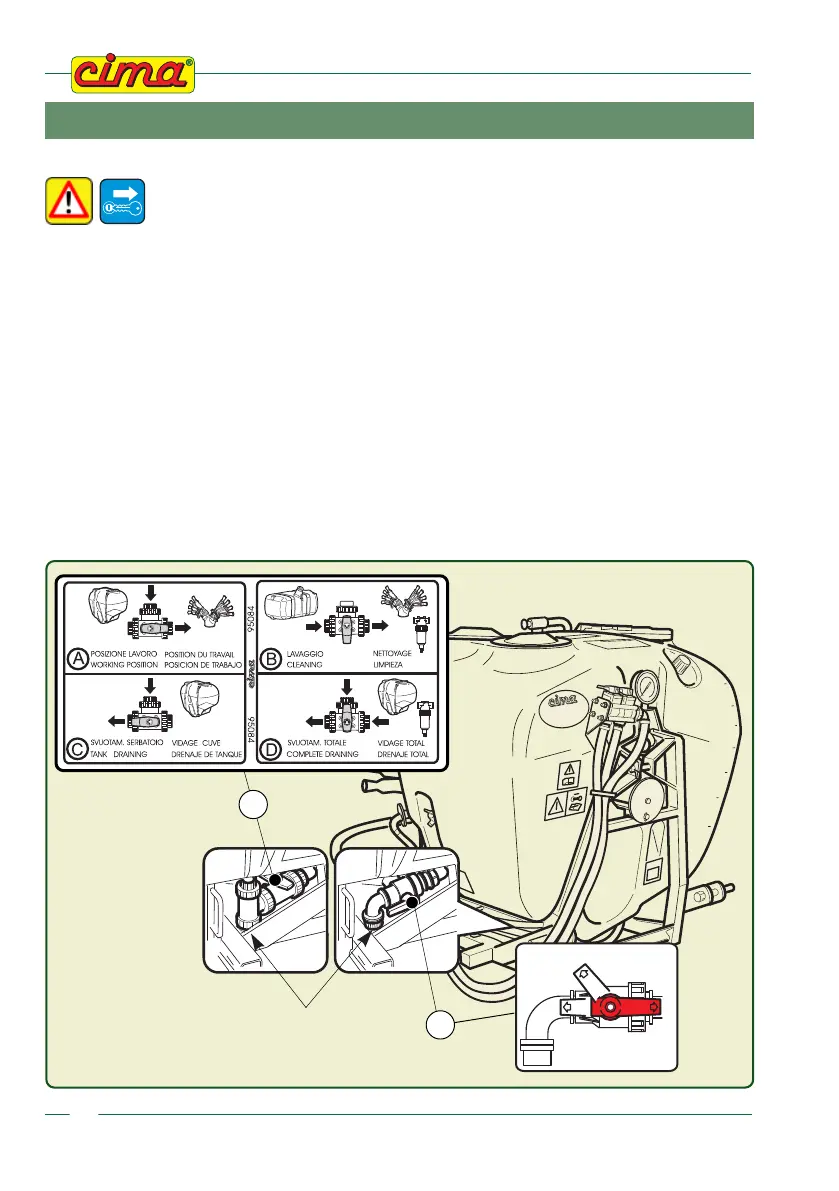

The operation is carried out through the drain plug (P2) (or (P15) for machine equipped
with unit-washing tank):
1. Unscrew the drain plug only when the tap’s lever is in the “a” position. (Drain closed).
2. Turn the faucet (P2) lever in position “b”. (Open exhaust).
(For the atomizers provided with spray-system rinsing tank, position the lever on “d” to have the
complete emptying).
3. After having carried out the draining, turn the faucet (P2) o (P15) lever to the position “a” (Draining
closed) and screw again the draining plug.
DRAINING PLUG
00676
b
c
a
P15
*
P2
* for versions where it is foreseen
