Cima PLUS - CHECK HYDRAULIC DELIVERY

Plus 42 - 45 - 50 - 55
3-2012
68
15.6. - CHECK HYDRAULIC DELIVERY
THE CHECK IS CONSIDERED TO BE SUCCESSFUL ( THE MACHINE IS PROPERLY CALIBRATED)
WHEN THE CALCULATED VALUE "Q" CORRESPONDS TO THE VALUE INDICATED ON THE "FLOW
CHART" TABLE WITH A ± 2.5% TOLERANCE.
If the resulting values are different, check the efficiency of the pipes, the fittings, the pressure gauge
and the correct positioning of the calibration discs (P11). If necessary, replace the damaged or
defective parts and repeat the test.
15.6.1 - CHECK WITH FLOWMETER
1. Disengage the fan (for versions where it is foreseen): see Paragraph 8.1.a.
2. Fill the tank with enough clean water to make the test.
3. Turn the 3-way valve (P6) to "D" position(Maintenance).
4. Disconnect the pipe (T4) from the manual distributor (P9) or from electrical distributor (E9)

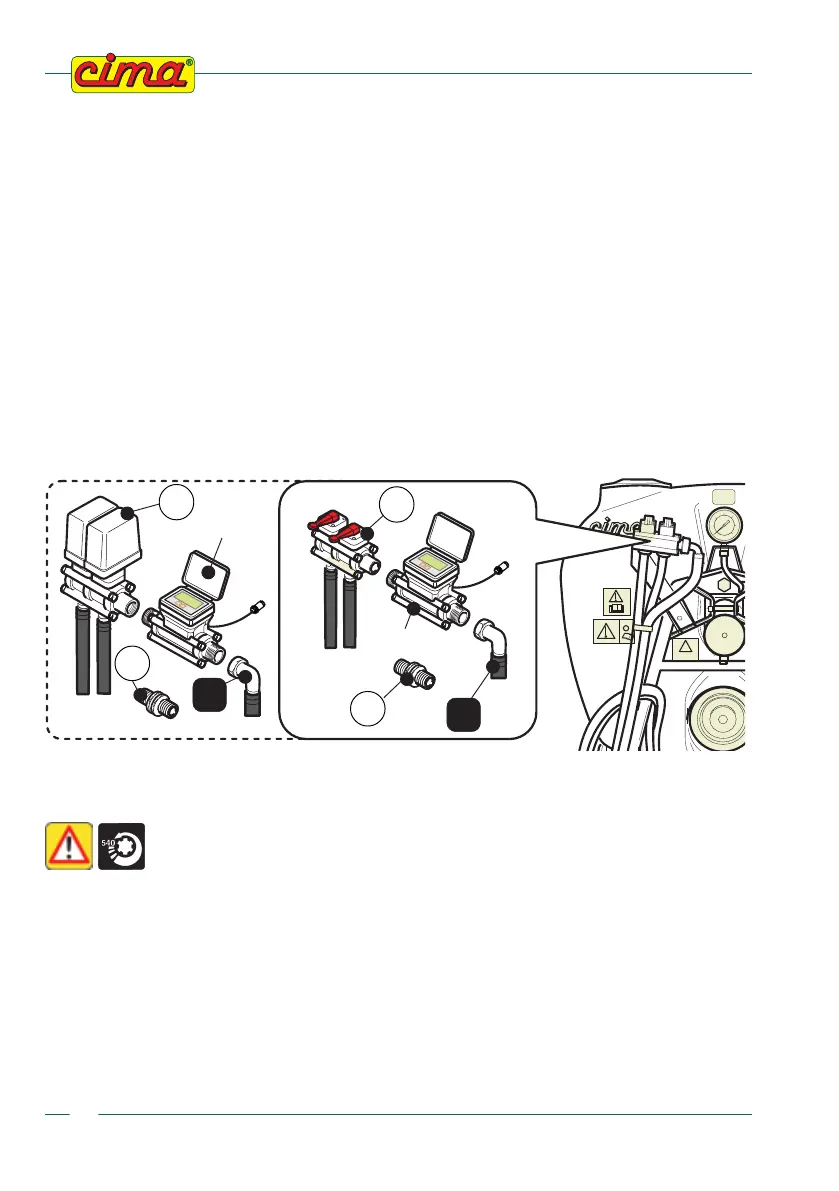

5. Connect the appropriate flowmeter for the measurements to be made, between the pipe (T4) and
the manual distributor (P9) or the electrical distributor (E9) . If necessary, remove the fitting (P26)
and use the fittings suitable for connecting the flowmeter.
1234
1234
E9
P26
FLOWMETER
T4
For versions where it is foreseen
P26
T4
P9
01621(2)
FLOWMETER
6. Turn the 3-way valve (P6) to "A" position (Work - phytosanitary products distribution).
7. Engage the fan (for versions where it is foreseen). See paragraph 8.1.b.
The declared performance is achieved with the PtO at 540 rpm and with the
fan running. For a correct result of the check, this condition MUST ALWAYS
BE RESPECTED.
8. Run the PtO at 540 rpm.
9. Open the taps of the 2-way distributor:
a. if manual (P9) turn the levers vertically;
b. if electric, set the switches (E10) to "ON".
10. Adjust the working pressure by using the manual pressure regulator (P5) (or the electric one E5)
and the position of the calibration disc (P11) according to indications given on the "flow charts"
for the distribution device (sprayhead) used.
11. Take the flow rate per hour.
