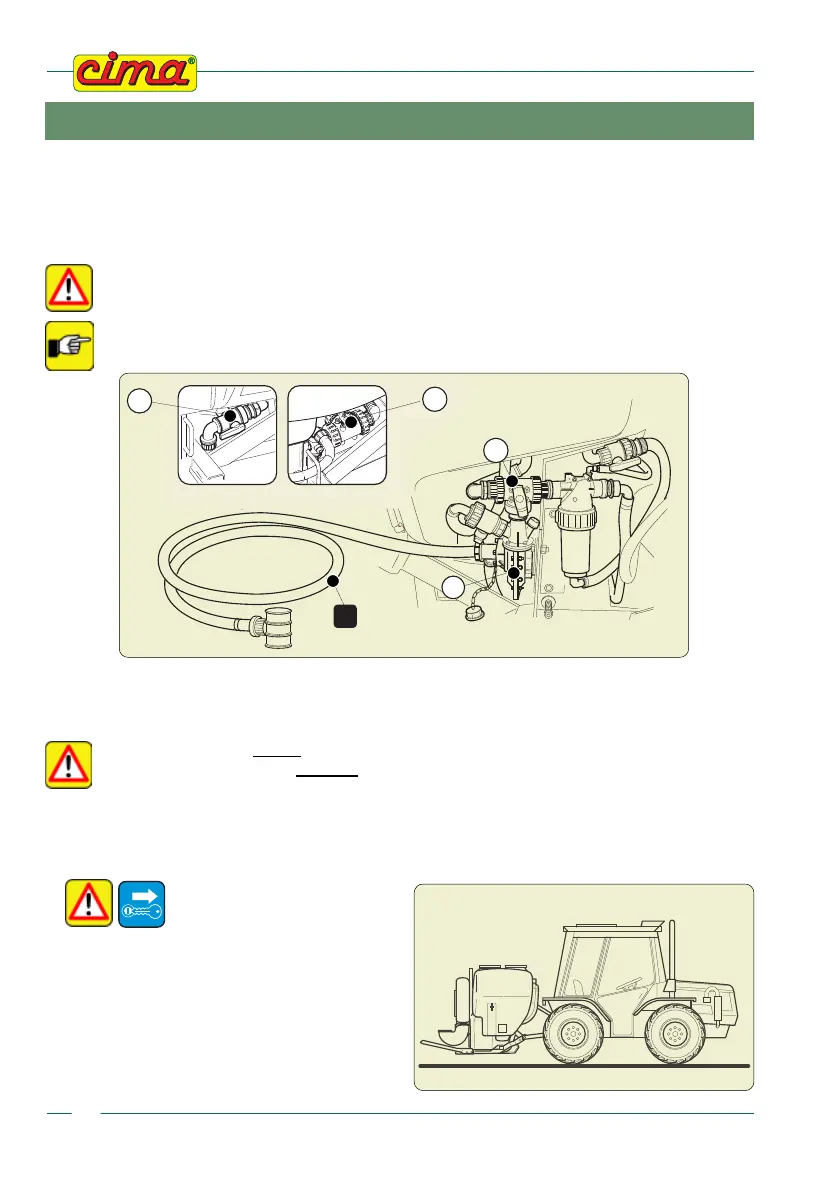

7.1 - FILLER PIPE
The pipe is provided with a coupling elbow fitting and with a bottom-drawing valve.
This is used for the filling of the tank.
It must be screwed into place on pump (P4) instead of the chain-held stopper.
The connection is ALWAYS to be done with the faucet (P2) closed (or P15 in position “c”)
and the faucet (P6) in position “c.”
Before making use of it, it is necessary to check the operation and the proper sealing of
the bottom-drawing valve, by pouring water into the pipe.
7.2 - PAIR OF WHEELS
The wheels thread can be adapted to that of the tractor.
MOUNT THE WHEELS AFTER HAVING HITCHED THE MACHINE TO THE THREE-POINT LINKAGE.
DISMANTLE THE WHEELS
BEFORE UNHITCHING THE MACHINE FROM THE THREE-POINT
LINKAGE.
EXECUTION:
1. Hitch the machine to the tractor and lift it to a height at which the wheels can be mounted.
2. Stop the tractor, remove the
key from the control panel
and ensure that no one ope-
rates the three-point linca-
ge’s hydraulic controls. AVO-
ID OPERATING AND STAN-
DING BENEATH THE MACHI-
NE OR WITHIN THE AREA
THAT MIGHT BE INVOLVED
IN ITS SUDDEN LOWERING.
00304
00090
P6
P15
P2
P15
P4
TR
