3-2012
Plus 42 - 45 - 50 - 55
13
4.1 - FRAME
Frames of series Plus 42 and 45 can be coupled to category “1” three-point linkage.
The plugs diameter is 22 mm. The diameter of the third-point plug is 19 mm.
In order to limit the shifting of the centre of gravity and to implement a functional
coupling, ALL frames allow for the double positioning of plugs
Frames of series Plus 50, 55, 55S and 55E can be coupled to category “2” three-point linkage.
The plugs diameter is 28.5 mm. The diameter of the third-point plug is 25 mm.
— The tank-securing bracket is mounted by means of 2 screws on the front, below the 3
rd
point. (see
Paragraph 13.9).
— A tie-rod through the tank’s upper tunnel connects the front part of the frame to the rear. This must
be dismantled should the tank be removed and it must be repositioned after having re-assembled
the tank.
This operation is carried out from the front, below the 3
rd
point connection, by means of a spanner
supplied with the machine.
— In the forward part, below the 3
rd
point connection, the removable protection cover of the fan
release device is secured by means of a screw.
A rear bumper is provided to protect the sprayhead. This must be mounted in the most effective position,
according to the operating conditions and in keeping with the type of heads utilised.
A chain with hooks, fixed to the front part of the frame, allows the support of the transmission joint
when the machine is coupled to the tractor.
All frames are pre-set with axles for the application, on request, of a pair of wheels (see Paragraph
7.2).
350
300
250
200
150
100
50
50 Plus
2000

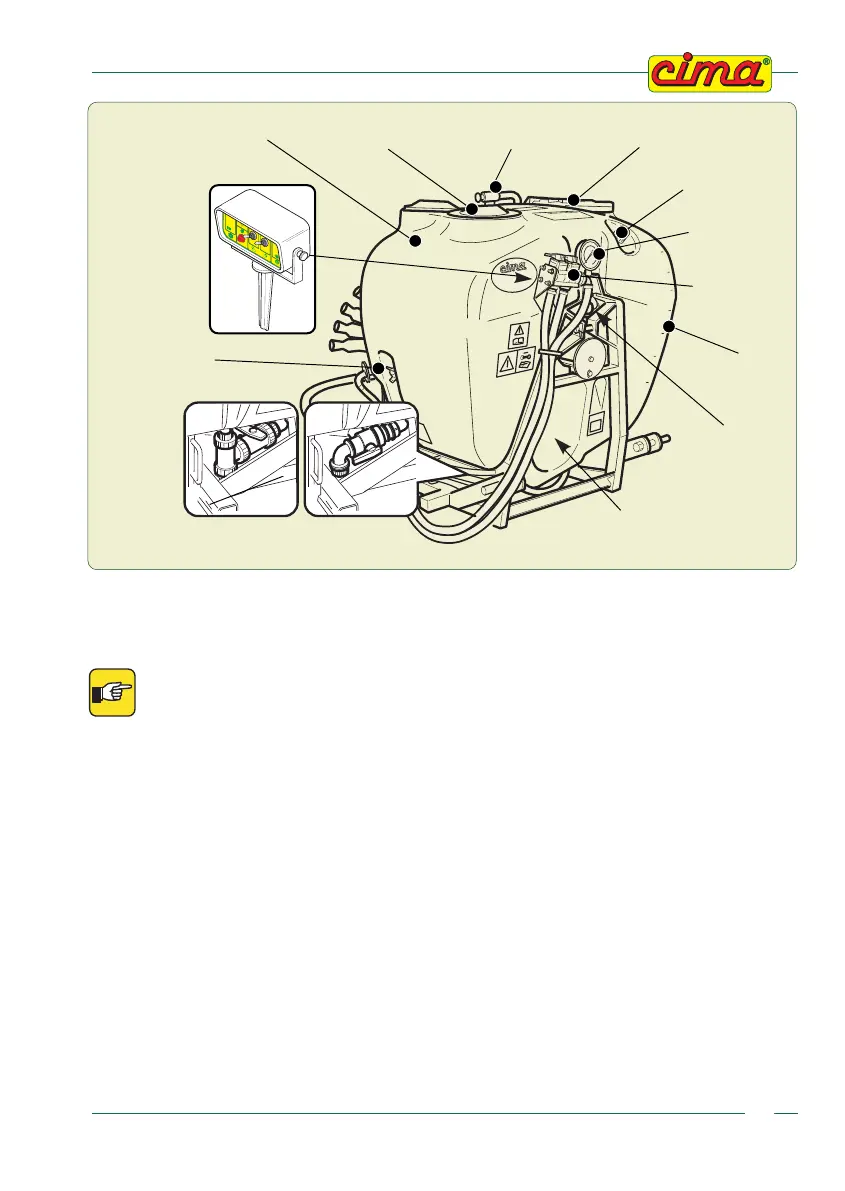

HAND WASHING TANK
(incorporated with the tank)
LEVEL
INDICATOR
GAUGE
PLUNGER
TAP
POWER
TAKE-OFF
(PTO)
00133
SECONDARY
FILLER (BS)
CONNECTION
TIE ROD
TANK
DRAINAGE
TAP
MAIN FILLER (BP)
HAND WASHING
TANK TAP
PRESSURE
REGULATOR
MANUAL
DISTRIBUTOR
®
+
-
ON
ON
OFF
OFF
Spin
Remote Control
HO
2
Press.
Pump
ELECTRICAL
DISTRIBUTOR
CONTROL UNIT
(for the models
where it is
foreseen)
Versions
WITH
rinsing tank
Versions
WITHOUT
rinsing tank
