Plus 42 - 45 - 50 - 55
3-2012
48
P15
b
a
c
d
d. Engage the PTO and take it to the correct distribution condition (540 rev/min - see paragraph 4.4.2)
CAUTION: THE PUMP MUST NEVER RUN DRY
e. Open the taps of the manual distributor (P9) (or electrovalves E9 by taking the switches of the
control electric switchboard on ON); make the atomizer work spraying on the piece of ground
not treated yet, for a sufficient time to test the leakage of clean water from the sparyhead.
That easy procedure allows to eliminate every fuel mixture residual from all the
hydraulic circuit components, so assuring in first place the accurate cleaning and the
consequent efficiency of the calibrated holes of the rotary disc regulators.
f. Disengage the PTO.

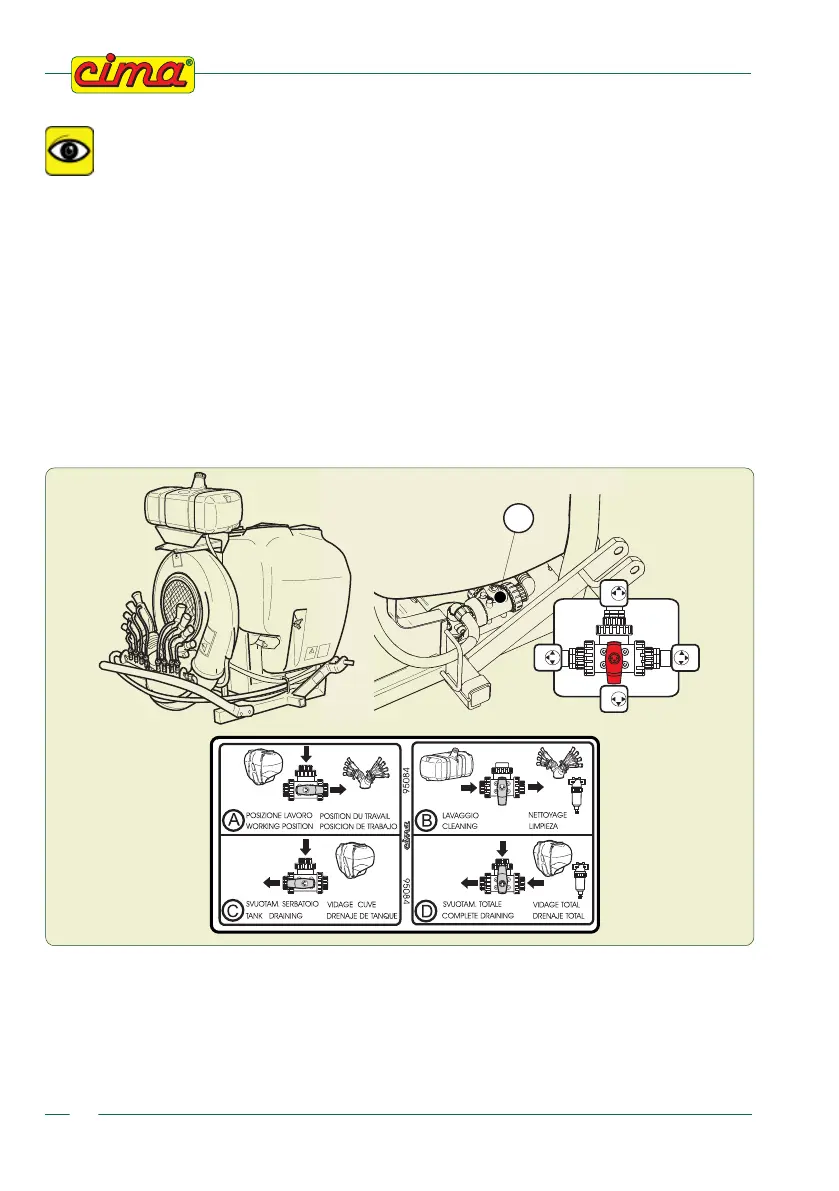

g. Close the cock (P15) by taking it to the A-WORK position
h. Open the faucet (P3) of exclusion of the additional agitation.
00682
00676
