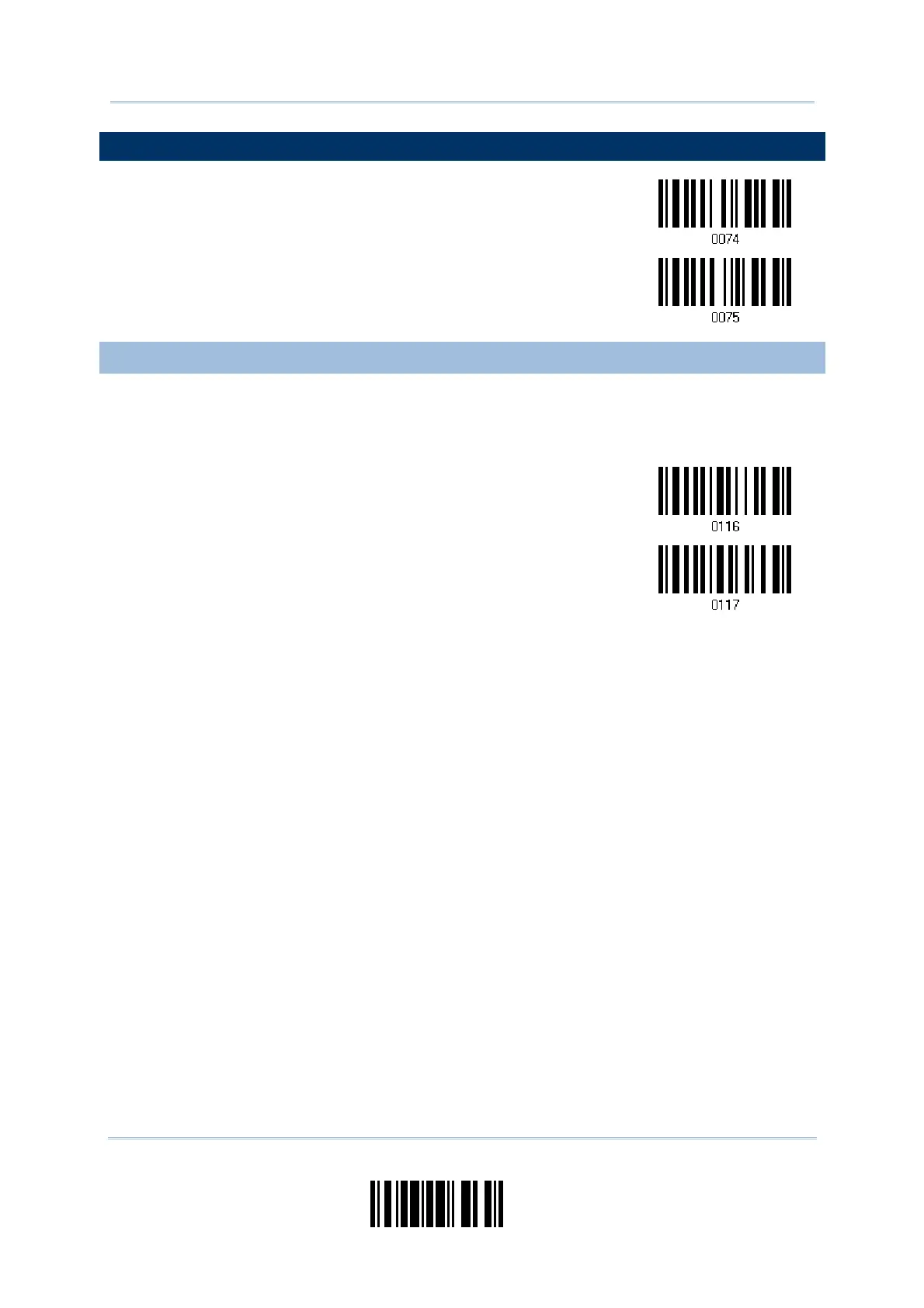

Chapter 4
Changing Symbology Settings
4.5 CODE 39
*Enable
Disable
4.5.1 TRANSMIT STAR
T/STOP CHARACTERS
Decide whether to include the start/stop ch
aracters in the
data being transmitted.
Transmit Code 39
Start/Stop
Characters
*Do Not Transmit
100
