93
Update

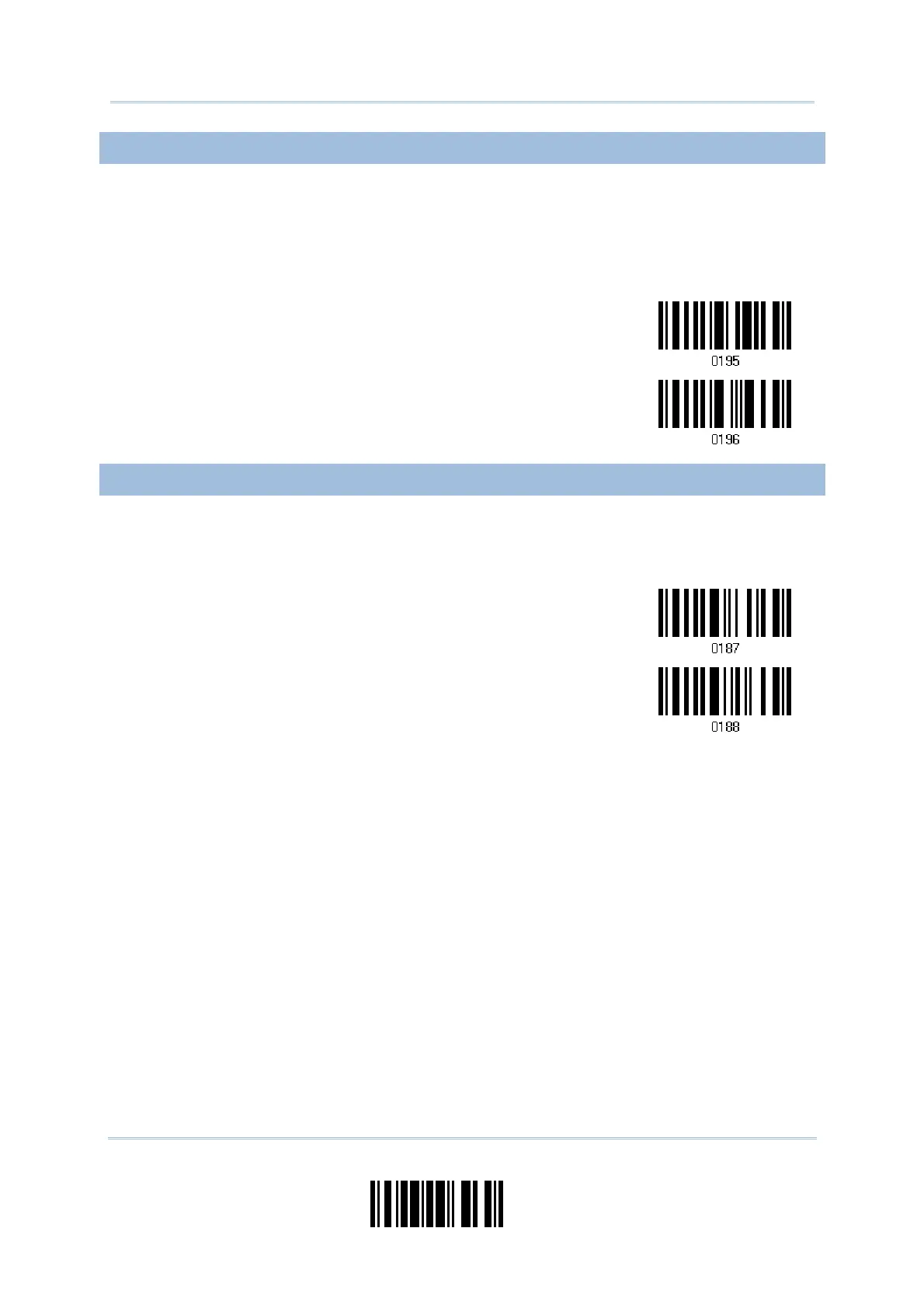

Chapter 4
Changing Symbology Settings
4.8.1 CONVERT TO EAN-13
Decide whether to expand t
he read EAN-8 barc
ode, as well as its addons, into EAN-13.
After conversion, the data
follows EAN-13 format a
nd is affected by
EAN-13
programming selections (e.g. Chec
k Digit).
Convert EAN-8 to
EAN-13
*Do Not Convert
4.8.2 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit EAN-8
Check Digit
Do Not Transmit
104
