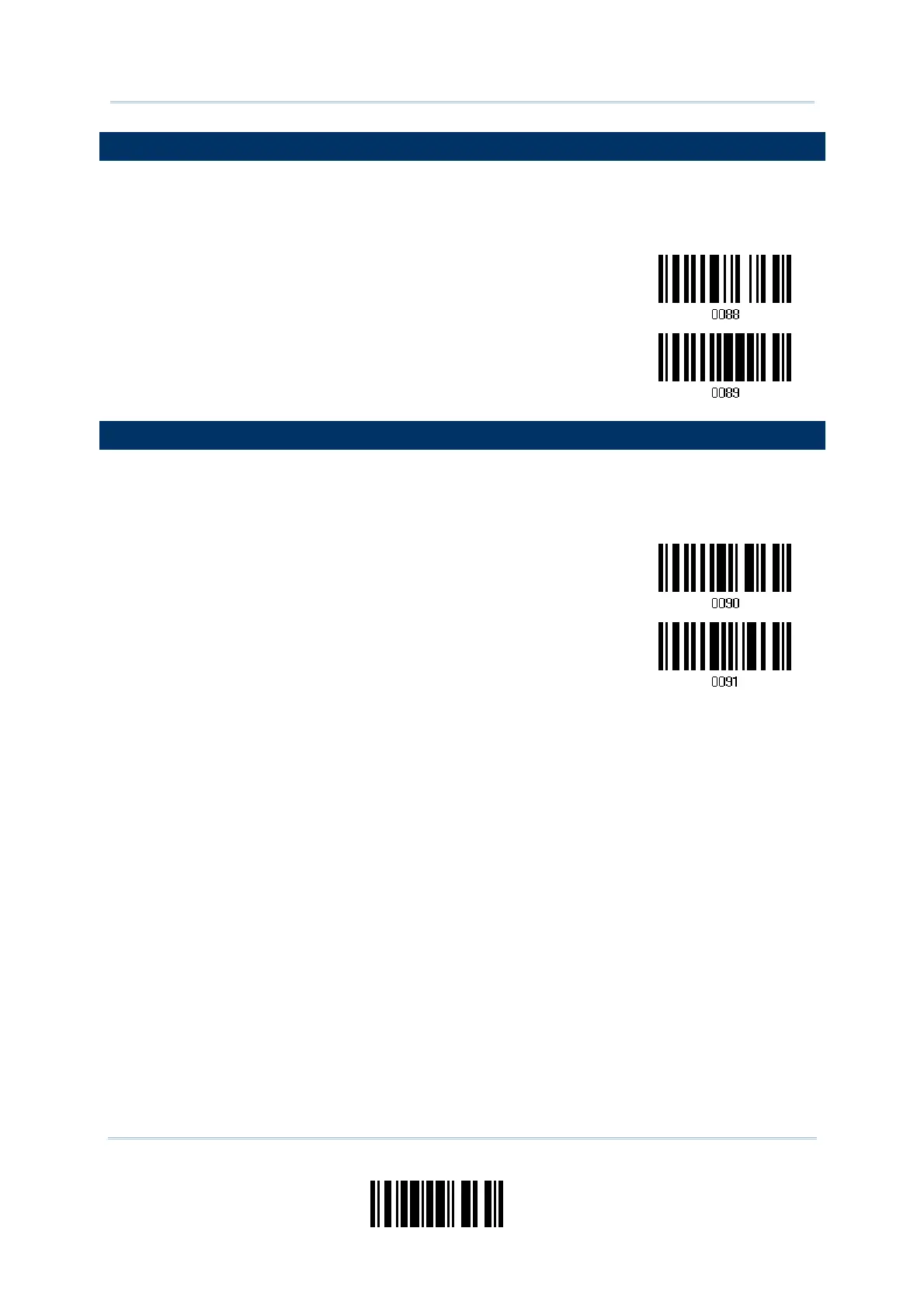

Chapter 4
Changing Symbology Settings
4.6 CODE 93
You can only confi
gure the scanner to read this symbology
or not.
*Enable
Disable
4.7 CODE 128
You can only confi
gure the scanner to read this symbology
or not.
*Enable
Disable
