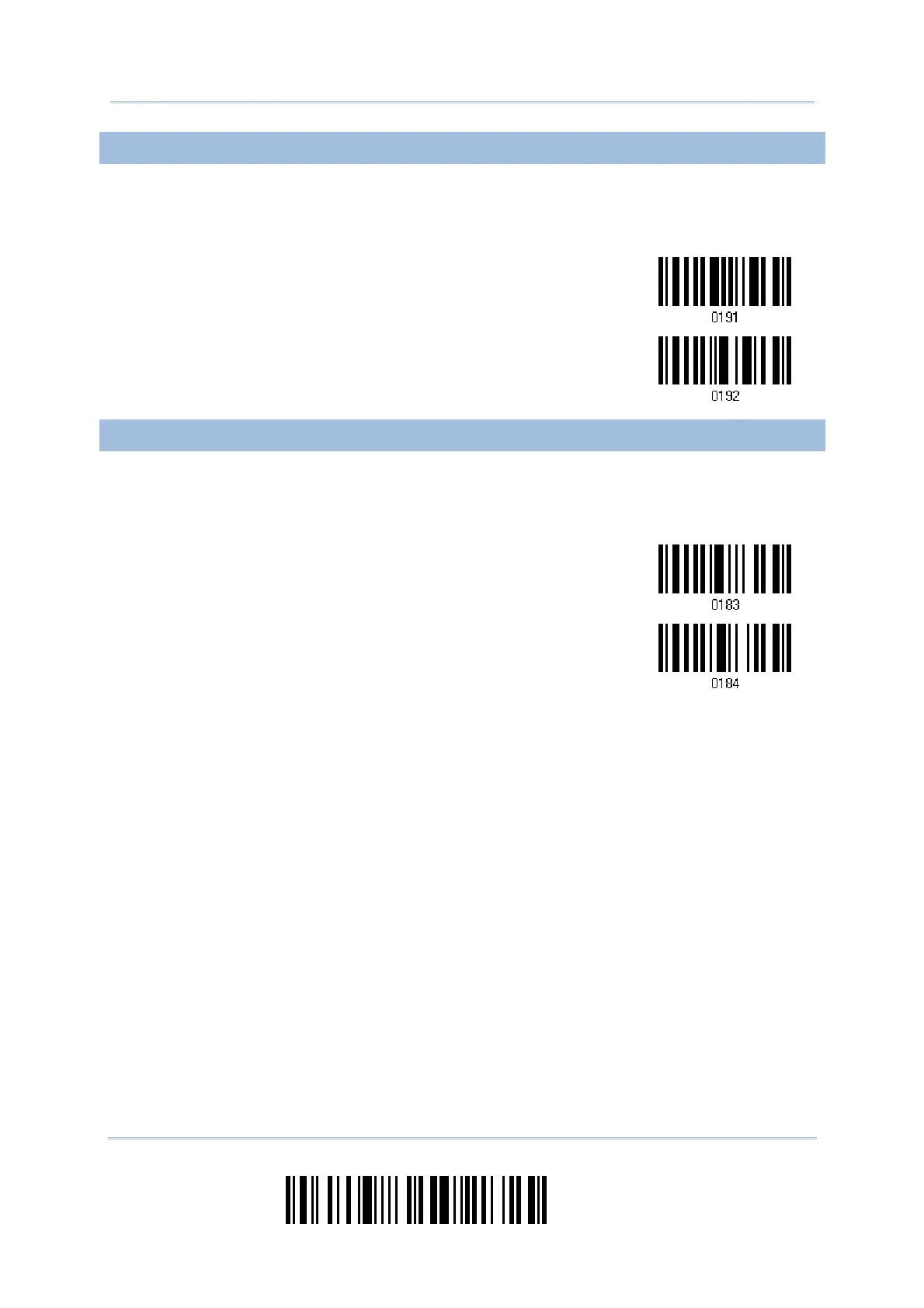

112
Enter Setup
1166/1266 Barcode Scanne
r
User Guide
4.18.3 SYSTEM NUMBER TRANSMISSION
Decide whether to include the system
number in the data
being transmitted.
Transmit UPC-E
System Number
*Do Not Transmit
4.18.4 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit UPC-E
Check Digit
Do Not Transmit
123
