22
Enter Setup
1166/1266 Barcode Scanne
r
User Guide

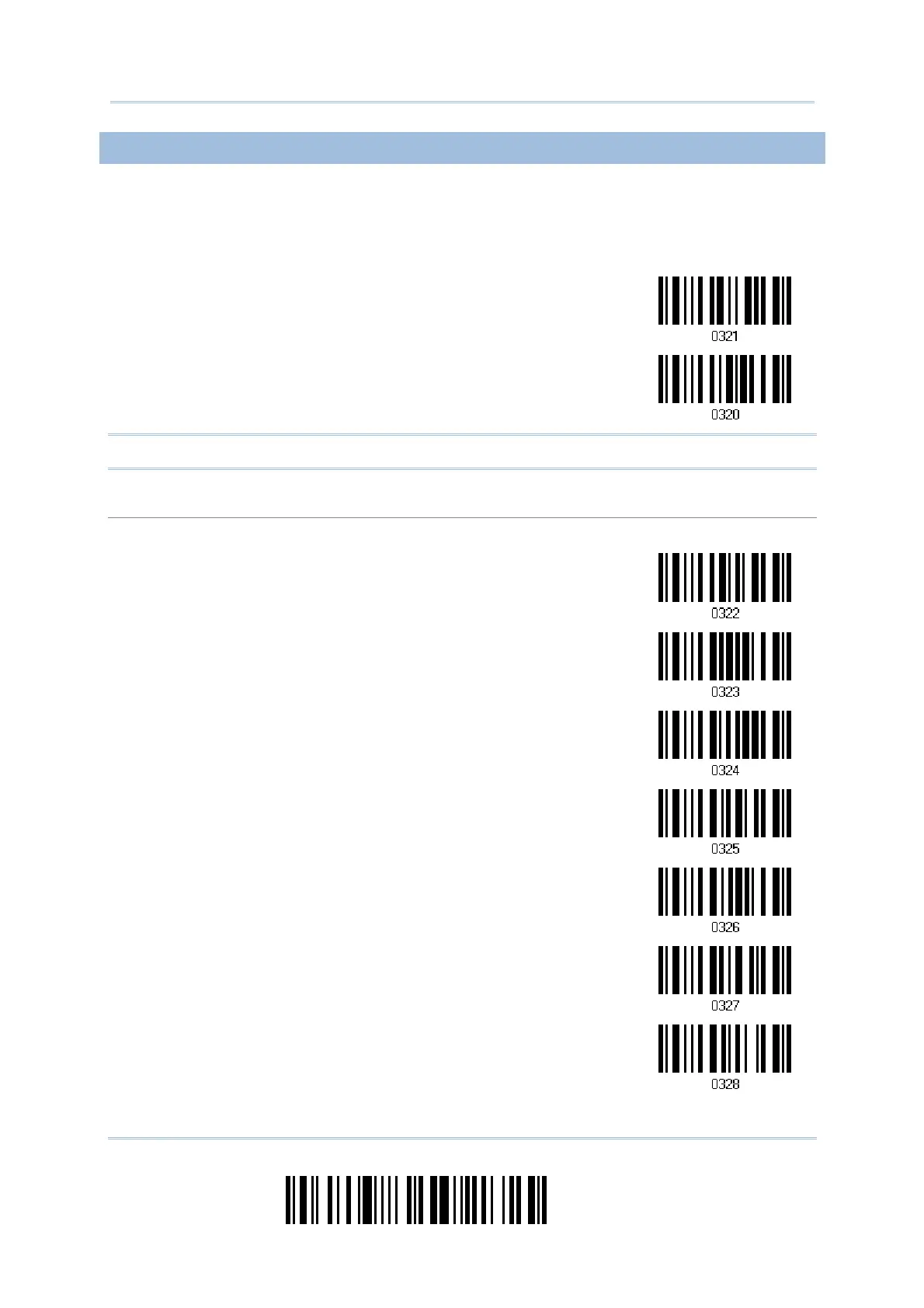

1.2.2 MEMORY MODE
The scanner keeps 128 KB
flash memory for
memory mode operation. When the scanner
is in memory mode, it means a WP
AN connection is disabled.
Enable
*Disable
Warning:
No WPAN connection
is allowed unless the memory mode is disabled.
Memory Data Delay
You may set a delay between each data record while transmitti
ng data back to the server.
*None
250 ms
500 ms
1 sec
2 sec
3 sec
