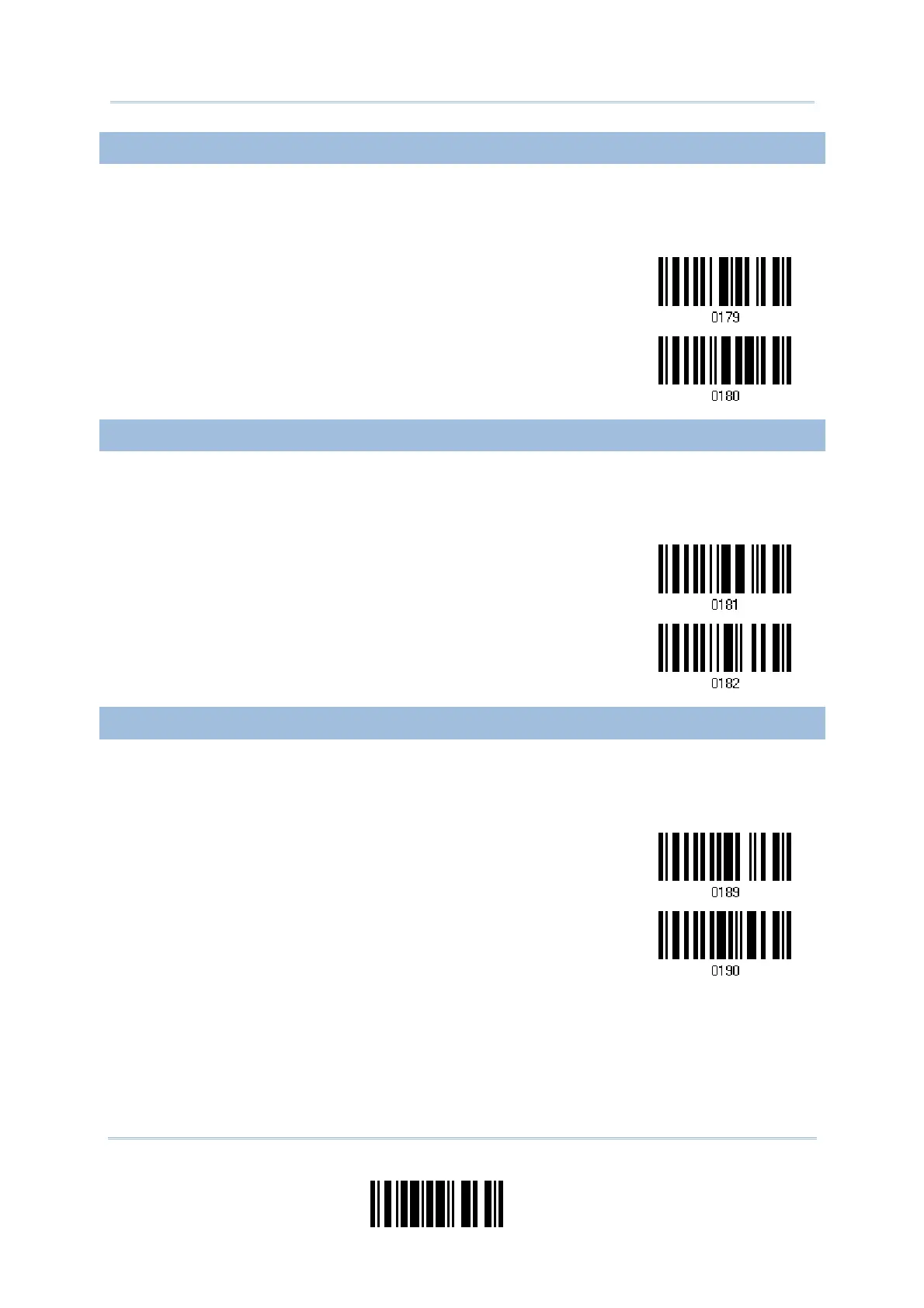

Chapter 4
Changing Symbology Settings
4.9.1 ISBN CONVERSION
Decide whether to convert the EAN-13 barcod
e, starting with 978 and
979, to ISBN.
Convert EAN-13 to
ISBN
*Do Not Convert
4.9.2 CONVERT TO ISSN
Decide whether to conv
ert the EAN-13 barcode, starting wi
th 977 to ISSN.
Convert EAN-13 to
ISSN
*Do Not Convert
4.9.3 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*Transmit EAN-13
Check Digit
Do Not Transmit
