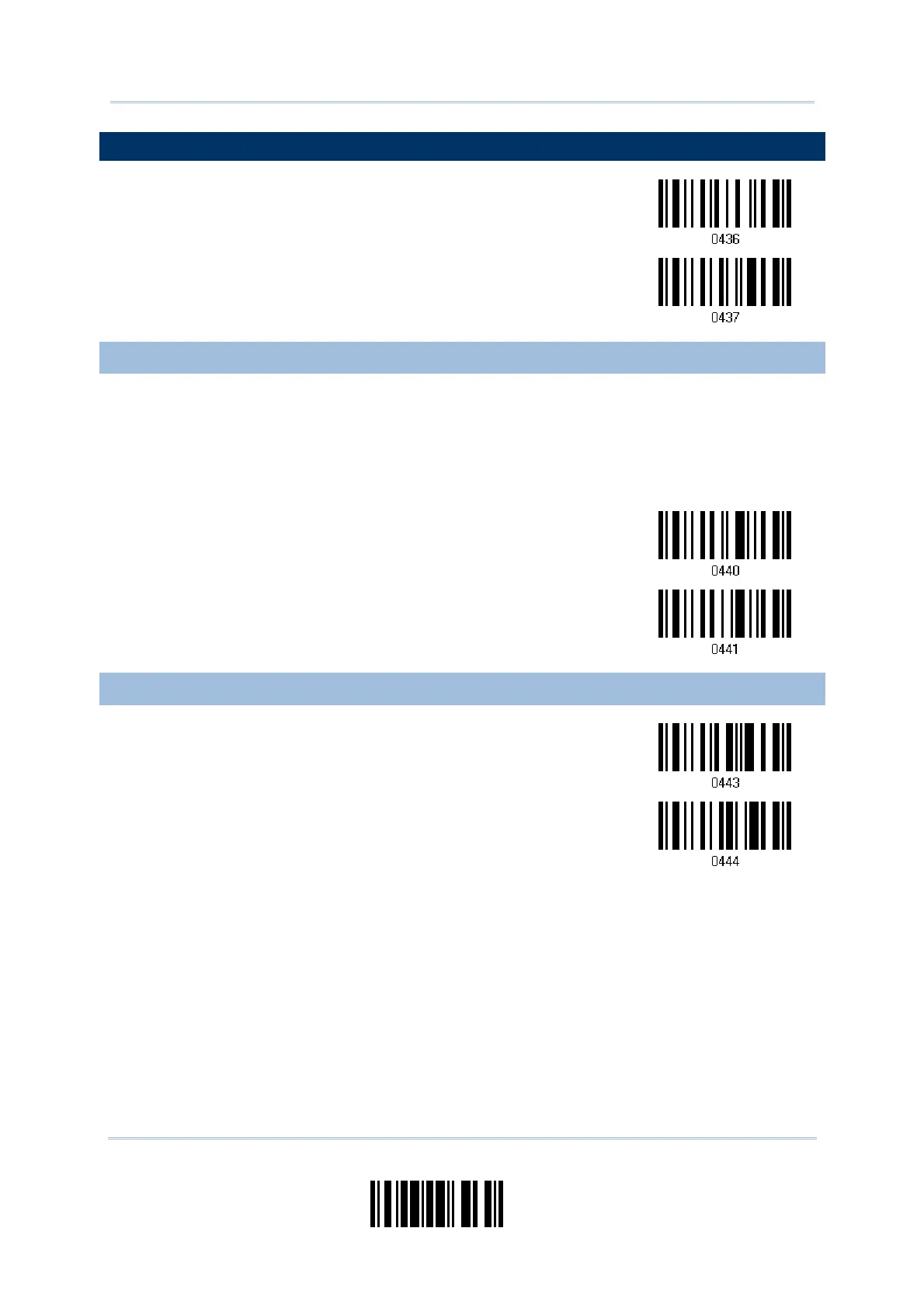

Chapter 4
Changing Symbology Settings
4.16 TELEPEN
Enable Telepen
*Disable
4.16.1 TELEPEN OUTPUT – FULL ASCII/NUMERIC
Decide wheth
er to support T
elepen in fu
ll
ASCII code. By default, it supports ASCII
mode.
AIM Telepen (Full ASCII) in
cludes all the alphanumeric and special ch
aracters.
Original Telepen
(Numeric)
*AIM Telepen
4.16.2 APPLY ALL 3 EDITIN
G FORMATS TO TELEPEN
*Yes
No
