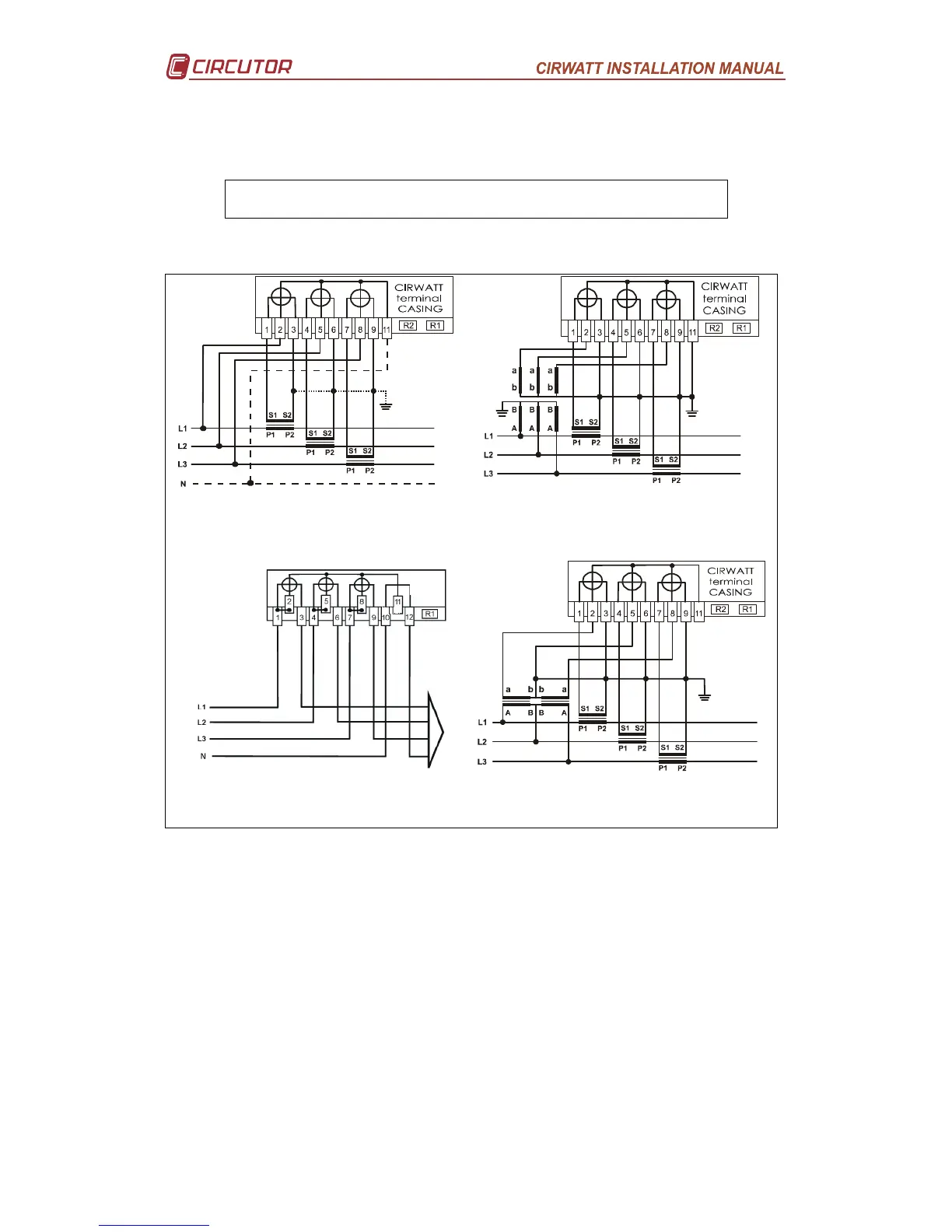

6.4.- Meter connection diagrams
Each CIRWATT model is especially designed for a different type of three phase
system, therefore the connection diagram will vary.
The required connection diagram is located inside the terminal
cover
Indirect meters: … / 5A and …/ 1A
3 / 4 wire connection (Low Voltage)
4 wire connection
3 voltage transformers and 3 current
transformers
CIRWATT
terminal
CASING
Direct connection 4 wire (Low Voltage)
3 wire connection
2 voltage transformers and 3 current
transformers
CIRWATT
terminal
CASING
