Page no. 3
1.- INTRODUCTION.
CIRWATT is a multi-purpose three-phase, four quadrant, digital meter. Its great
versatility is its main feature, allowing it to adapt to the needs of each user.
It has been especially designed for installations where the electro-mechanical meters
do not meet current requirements. It is specifically for those installations that require a
meter with a tariff system or where electricity billing is done by using load profiles.
2.- METER MODEL
The different meter configuration options covering the needs of each installation are
shown below:

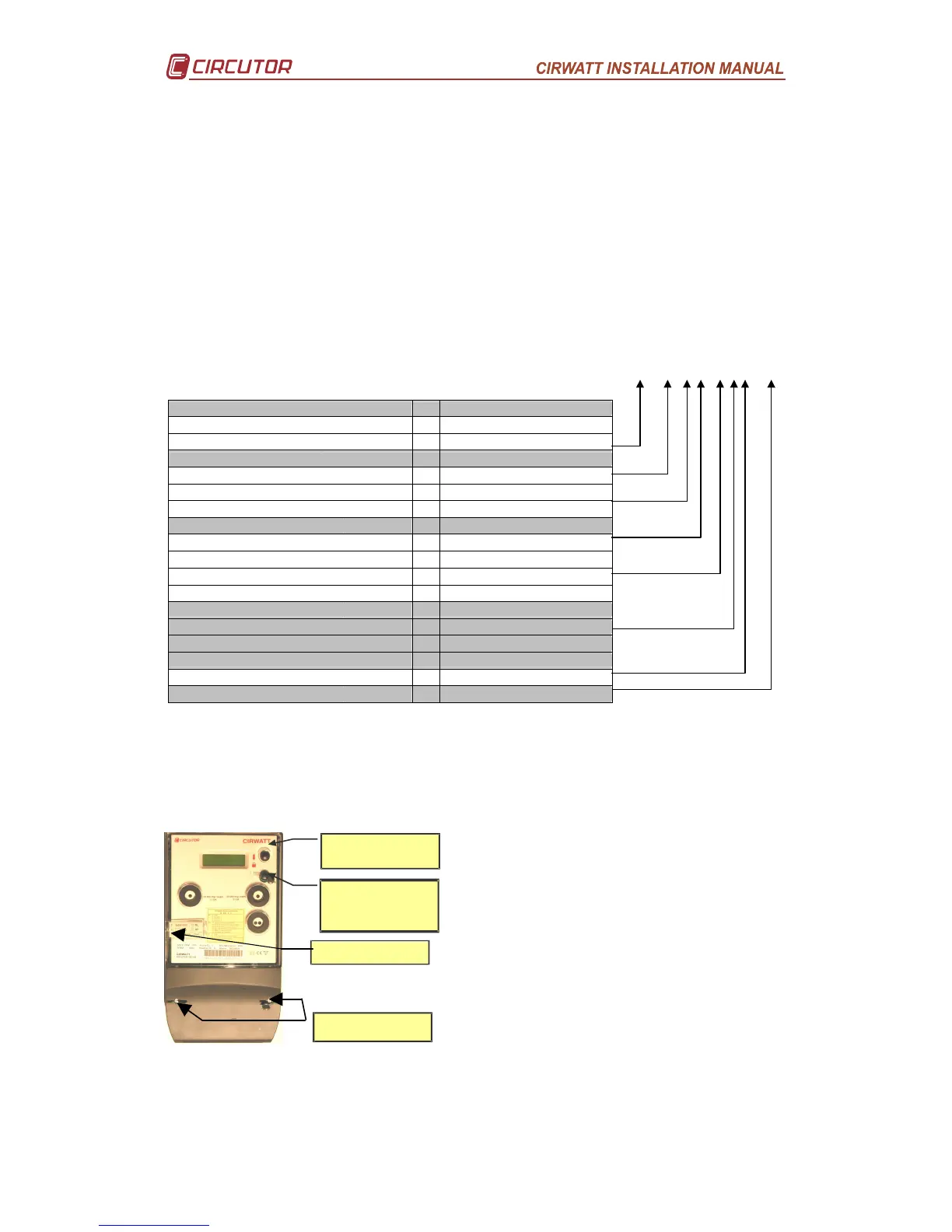

CIRWATT 4__ - _ __ _ - _ _ _ - __
Modo de conexión
Tensión de medida
Precisión
4
05
10
U
4 hilos
Clase 0.5S Activa / Clase 1.0 Reactiva
Clase 1.0 Activa / Clase 2.0 Reactiva
3x57/100V ... 3x230/400V (Multirrango)
Medida de corriente
T5
D1
/5A (Transformador. Máximo 10A eficaces)
10 A (Directo. Máximo 100A eficaces)
FrecuenciaCAutomático (50/60Hz)
Comunicaciones
1
2
RS-232
RS-485
Expansión
0Sin entradas/salidas
44 entradas + 3 salidas (optomos)
54 entradas + 3 salidas (relé)
94 entradas + 3 salidas (optoacoplador 24V)
CModelo Mediana Industria
00Revisión
T1/1A (Transformador. Máximo 2A eficaces)
Modelo
Sin comunicaciones 0
3.- SAFETY LEVELS (Seals)
CIRWATT has the necessary seals to ensure that the meter is not tampered with.
These seals must always be attached once the meter is installed.
•
Terminal cover seals. These are attached
once the equipment has been installed These
seals prevent the modification of the meter
connection.
•
Button seal. Bill closure and equipment
RESET operations are protected by these
seals.
•
Label Seal. This prevents the equipment
features label from being changed.
(Transformation ratios, integration period, type
or market and area of installation).
LABEL SEAL
TERMINAL CASING
SEALS
CLOSURE AND METER
START
4 wire 4 Connection mode
Class 0.5S Active / Class 1.0 Reactive 05 Accuracy
Class 1.0 Active / Class 2.0 Reactive 10
3x57/100V ... 3x230/400V (Multirrange) U Measured voltage
/1A (Transformer. Maximum 2A effective) T1 Current measurement
/5A (Transformer. Maximum 10A effective) T5
10 A (Direct. Maximum 100A effective) D1
Automatic (50/60 Hz) C Frequency
Without communications 0 Communications
RS-232 1
RS-485 2
Ethernet 3
Without inputs/outputs 0 Expansion
4 inputs + 3 outputs (optomos) 4
4 inputs + 3 outputs (relay) 5
4 inputs + 3 outputs (Optocoupled 24V) 9
Model: Medium sized industry C Model:
Revision 00
