Page no. 30
D.- CIRWATT Ethernet communications.
Description of System Protocol and communications.
The CIRWATT-Ethernet analyzer has been designed specially to communicate in
Ethernet networks. Thanks to this communication system the wiring used in the RS485
network can be exceptionally optimized, improving this way the existing networks, and
making very easy the installation procedure.
The device is delivered with one CD which contain the following components:
• Extras: configuration program to set the communication parameters TCPSetup.
• Com Redirector: program to configure the *virtual ports.

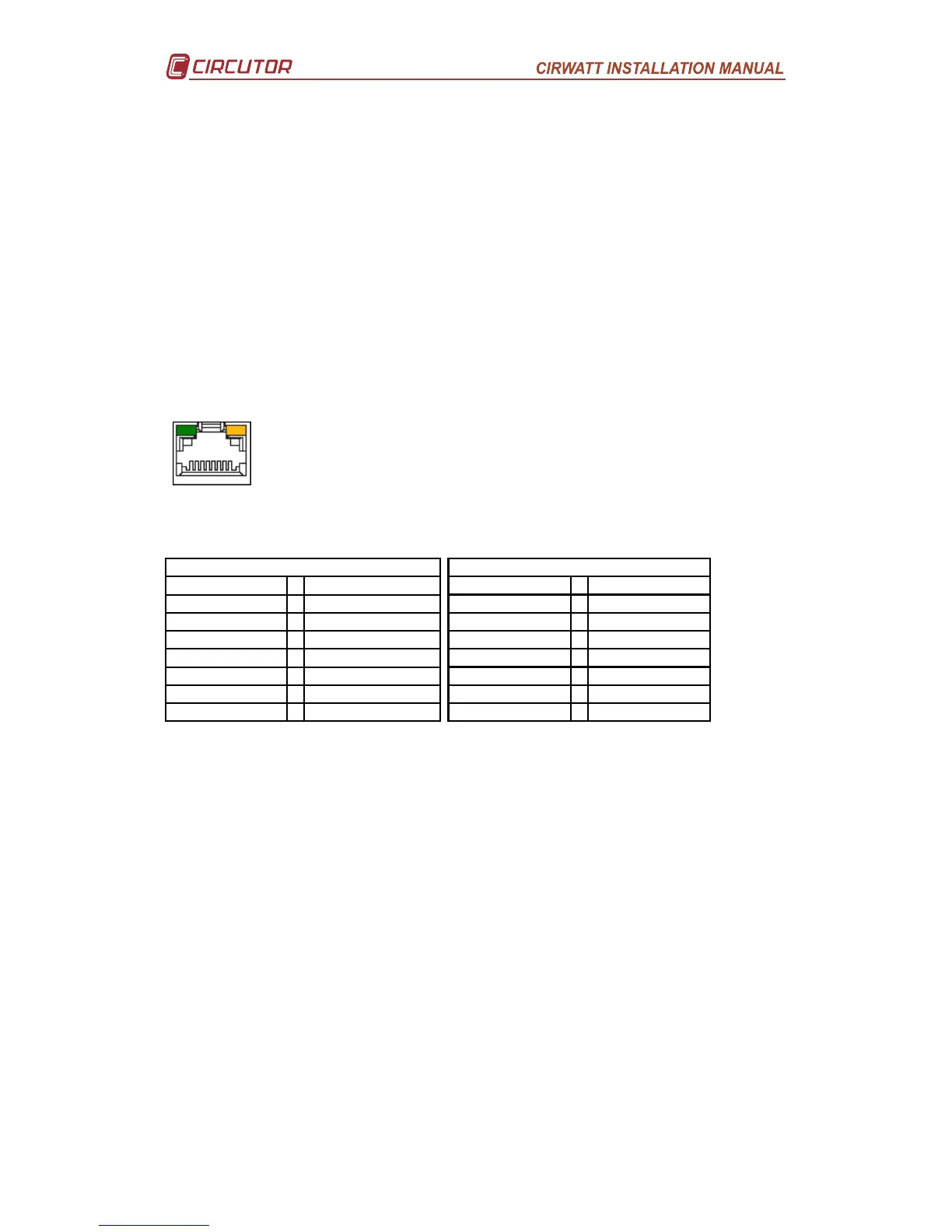

The CIRWATT-Ethernet analyzer has an RJ45 Ethernet 10Base-T/100Base-TX
connector (autodetect), which will connect the analyzer to the Ethernet network (hub or
switch), or using a direct wire (crossed connection) to the master computer that holds
the software application.
The connection with the master computer will be made by means of
shielded twisted pair wires (suitable for Ethernet networks). One side of
the wire will be connected to the CIRWATT-Ethernet and the other one
to the hub or switch existing in the Ethernet network.
In case we need a direct connection to a computer or any device with an
Ethernet input, the wires must have a suitable configuration according to type of
communication.
1-Orange -- 1-Orange 1-Orange -- 1-Green
2-Orange/White -- 2-Orange/White 2-Orange/White -- 2-Green/White
3-Green -- 3-Green 3-Green -- 3-Orange
4-Blue -- 4-Blue 4-Blue -- 4-Blue
5-Blue/White -- 5-Blue/White 5-Blue/White -- 5-Blue/White
6-Gree/White -- 6-Gree/White 6-Green/White -- 6-Orange/White
7-Brown -- 7-Brown 7-Brown -- 7-Brown
8-Brown/White -- 8-Brown/White 8-Brown/White -- 8-Brown/White
STANDARD ETHERNET CABLING DIRECT ETHERNET CABLING
NOTA: It is essential to communicate with the device that the ethernet module
and the cirwatt velocity will be the same (default: 9600b). To adjust the
velocity see the next paragraph:
