RGU-10A , RGU-100A
Instruction Manual
Table 3: Technical features.
Technical features
Protection degree IP40
Enclosure Self-extinguishing V0 plastic
68 mm
68 mm

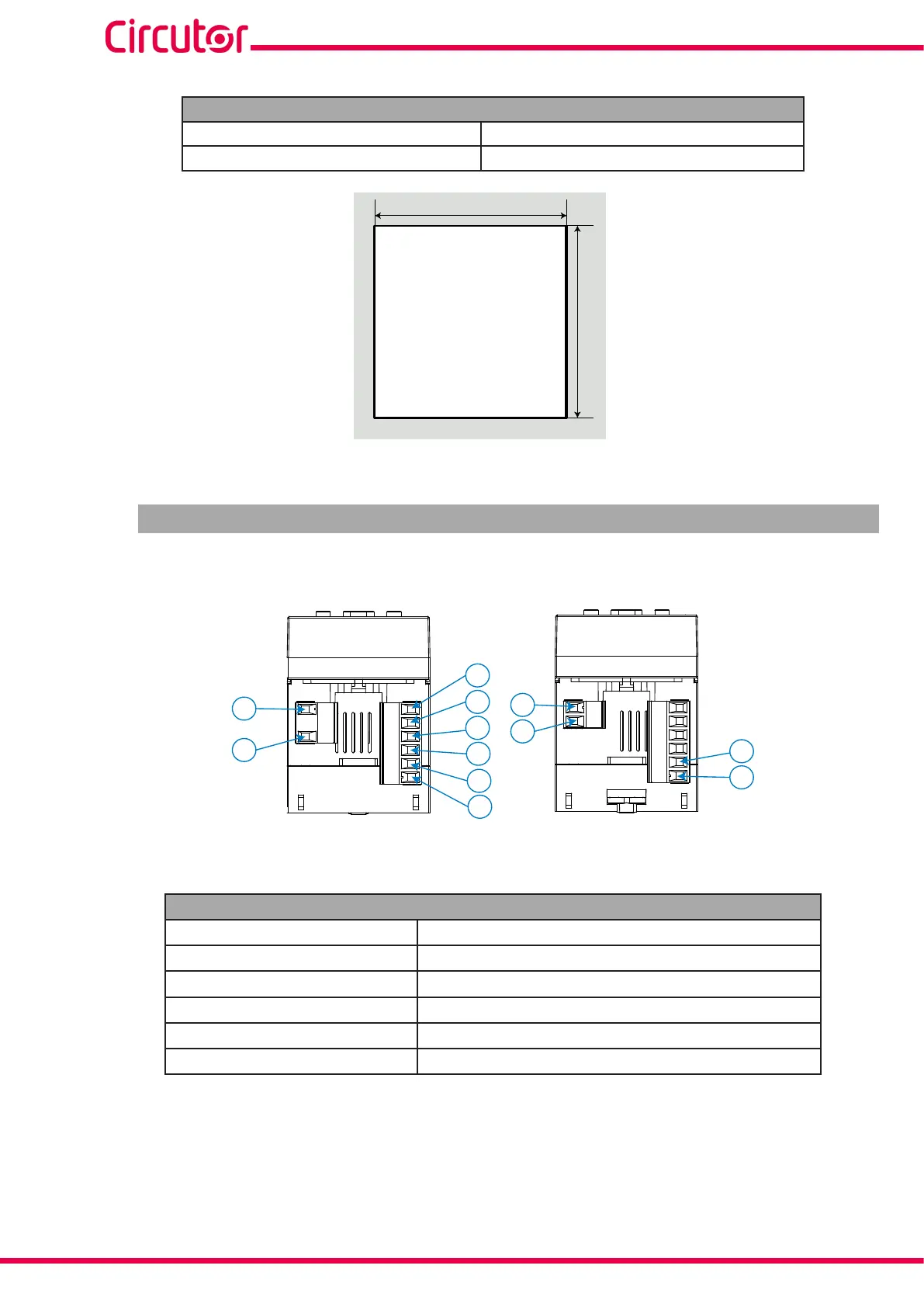

Figure 3: Panel cut-out.
3.4 - DEVICE TERMINALS
3.4.1. RGU10A
A2
A1
1
2
3
4
5
6
7
8
19
20
Figure 4: Terminals of the RGU-10A: Upper - Lower.
Table 4: List of RGU-10A terminals.
Device terminals
A1: A1, Power supply 5: R2, Pre-alarm relay (NC)
A2: A2, Power supply 6: C2, Pre-alarm relay (Common)
1: R1, Trip relay (NO) 7: 1S1, Transformer connection WGC
2: R1, Trip relay (NC) 8: 1S2, Transformer connection WGC
3: C1, Trip relay (Common) 19: TRIP/RESET, Input for trigger or external reset
4: R2, Pre-alarm relay (NO) 20: TRIP/RESET, Input for trigger or external eset
