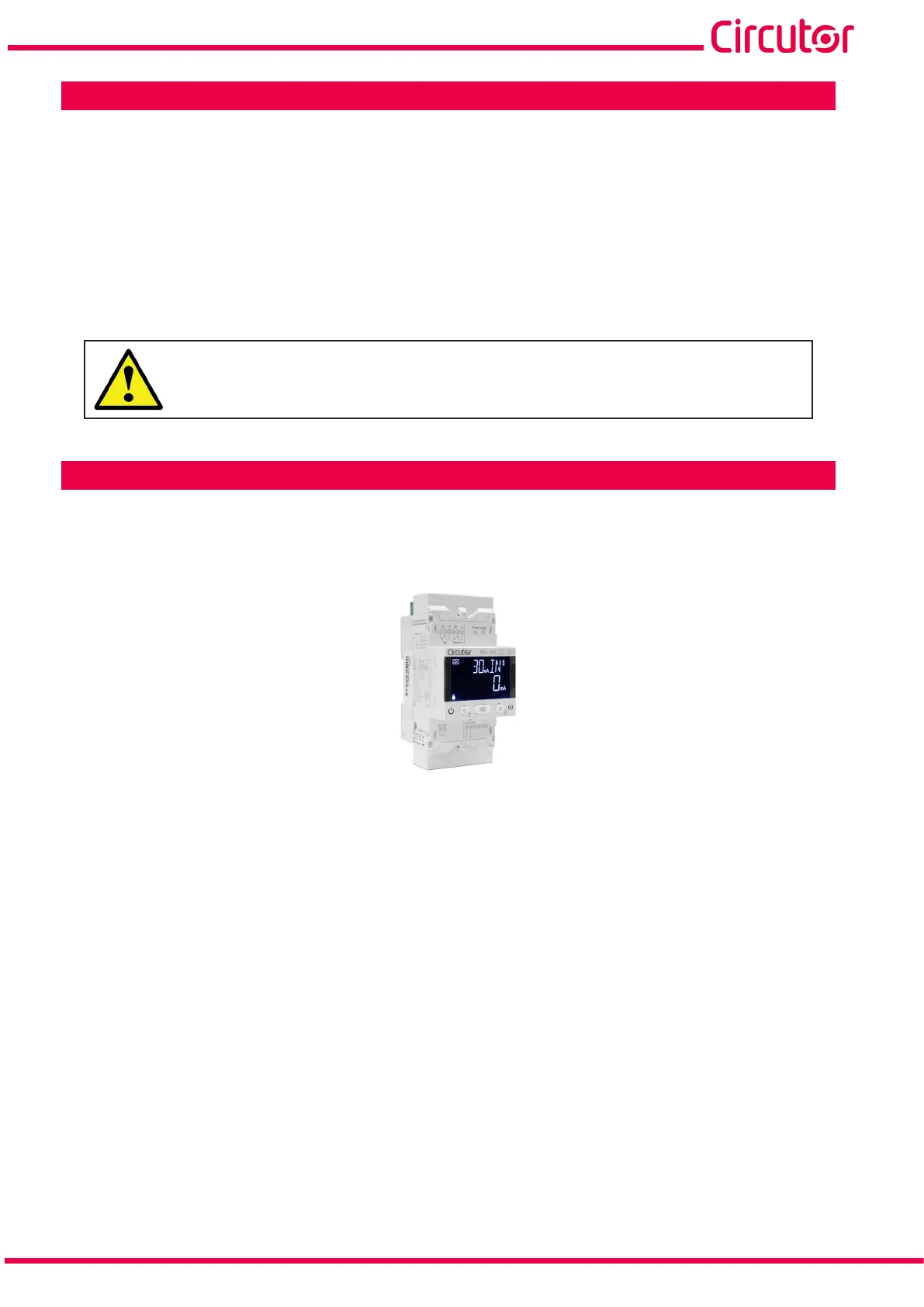

Instruction Manual
RGU-10A, RGU-100A
1. VERIFICATION UPON RECEPTION
Upon receipt of the device, check the following points:
a) The device meets the specifications described in your order.
b) The device has not sustained any damage during transport.
c) Perform an external visual inspection of the device prior to switching it on.
d) Check that it has been delivered with the following:
- An installation guide,
If any problem is noticed upon reception, immediately contact the transport com-
pany and/or CIRCUTOR's after-sales service.
2 PRODUCT DESCRIPTION
The RGU-10A /RGU-100A is a type-A ultraimmunised earth leakage protection and monitoring relay
that is compatible with the earth leakage transformers in the WGC range.
The device features:
- Display for showing the parameters.
- 3 keys to browse through the different screens and program the device.
- 2 relays: a tripping relay and a pre-alarm relay.
- Digital test or remote control inputs (TRIP/RESET).
- 3 DIN rail modules, panel installation with front accessory.
- RS-485 communications, available on the RGU-100A model.
The WGC is a range of electronic, type A earth leakage protection and measuring transformers.
CIRCUTOR offers 12 models with transformers of different sizes.
