RGU-10A , RGU-100A
Instruction Manual

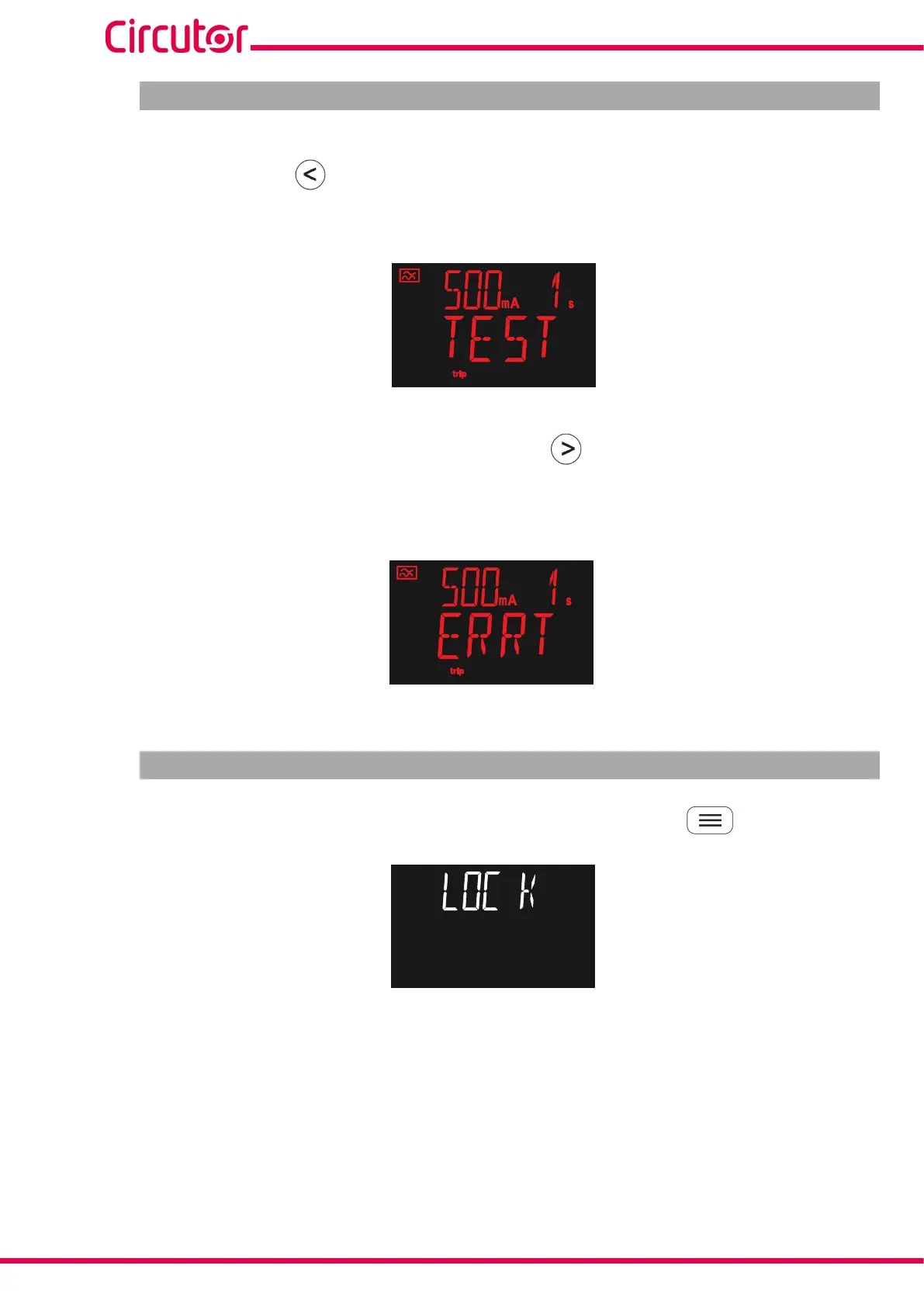

5.3 - TEST SCREEN
A test can be done to verify the proper functioning of the relay.
To do this, press the key T for > 3s while the main display screen is shown.
If the relay has been tripped correctly, the screen in Figure 25 is displayed. And the Alarm LED is lit in
red.
Figure 25: Test screen.
The relay is returned to its idle status by pressing the key R for > 3s.
If the trip could not be carried out, the error screen (Figure 26) is displayed for 3s before returning to
the channel display screen.
Figure 26: Test Error.
5.4 - LOCK
To enter the lock menu, we must display the Lock screen and press the key .
Figure 27: Lock menu.
The lock configuration screen is shown. If the device locks:
- The direct settings screens are locked ("6 - DIRECT ADJUSTMENTS") and the values cannot be mod-
ified.
- The setup menu (“7 - CONFIGURATION”) is locked and cannot be accessed.
