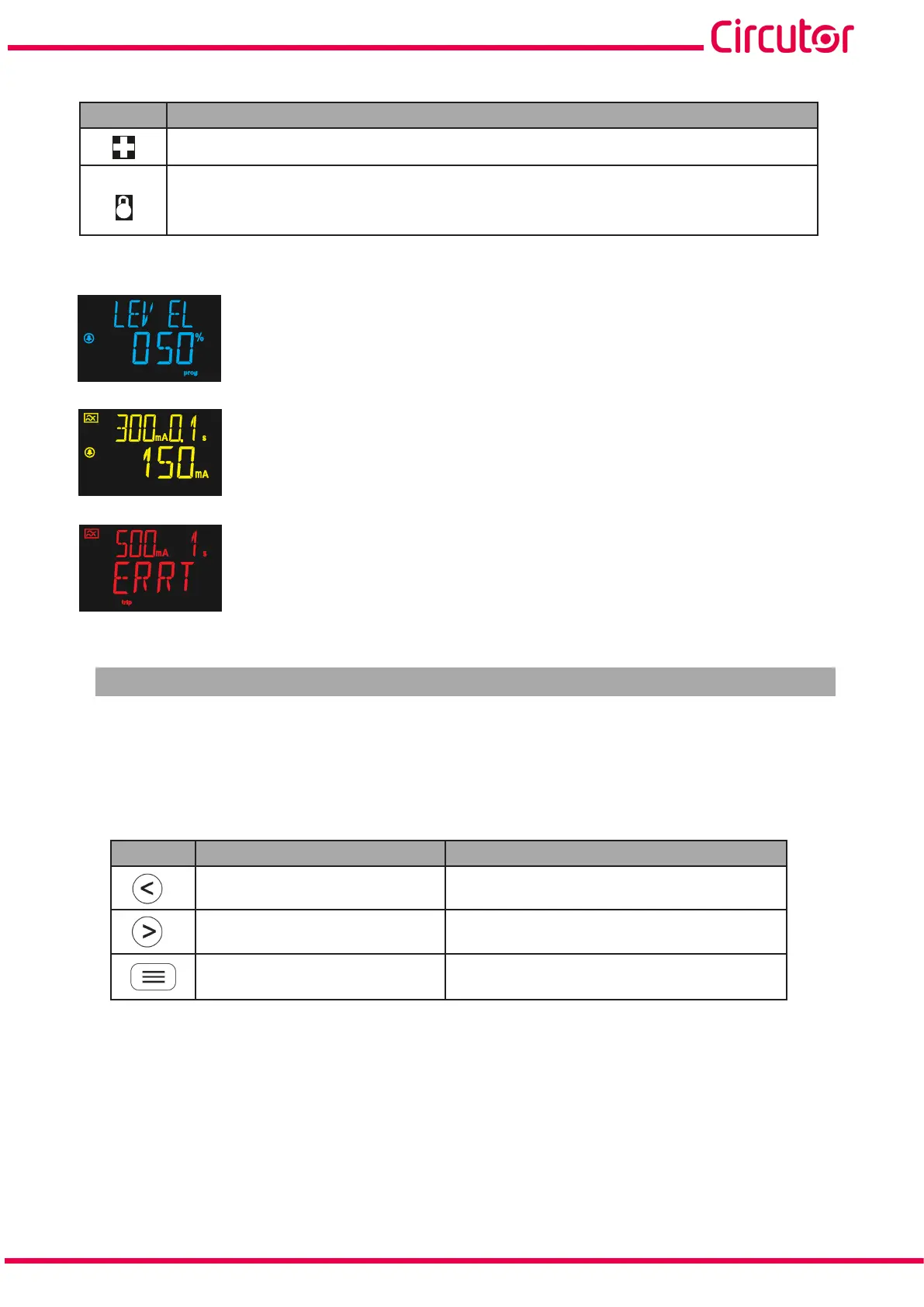

Table 7 (Continued): Display icons.
Icon Description
The relay works with positive polarity.
The direct adjustments "6 - DIRECT ADJUSTMENTS" are locked.
The setup menu "7  CONFIGURATION" is locked and cannot be accessed.
Go to the lock menu, "5.4 - LOCK" to change the option.
The device's display can change colour, indicating:
Alarma
Blue:
Adjustment or configuration screen.
Yellow:
The pre-alarm has been activated.
Red:
A relay has tripped due to leakage current, see "5.2.- TRIP DISPLAY SCREENS",
An Individual test has been carried out, see “5.3 - TEST SCREEN”.
An error has been detected, see "5.5 - ERROR SCREEN"
4.4 - KEYBOARD FUNCTIONS
The RGU-10A /RGU-100A has 3 keys to browse through the different screens and program the device.
Function of the keys (Table 8):
Table 8: Function of the keys on display screens.
Key Short keystroke Long keystroke (3s)
T
Previous screen Tests the trip relay.
R
Next screen If there has been a trip, it resets the relay.
Access to the Lock/Unlock menu
and device setup.
-
