45
Instruction Manual
RGU-10A, RGU-100A
C
A
B
A/2 A/2
F
G
H
K
I
D
J
E

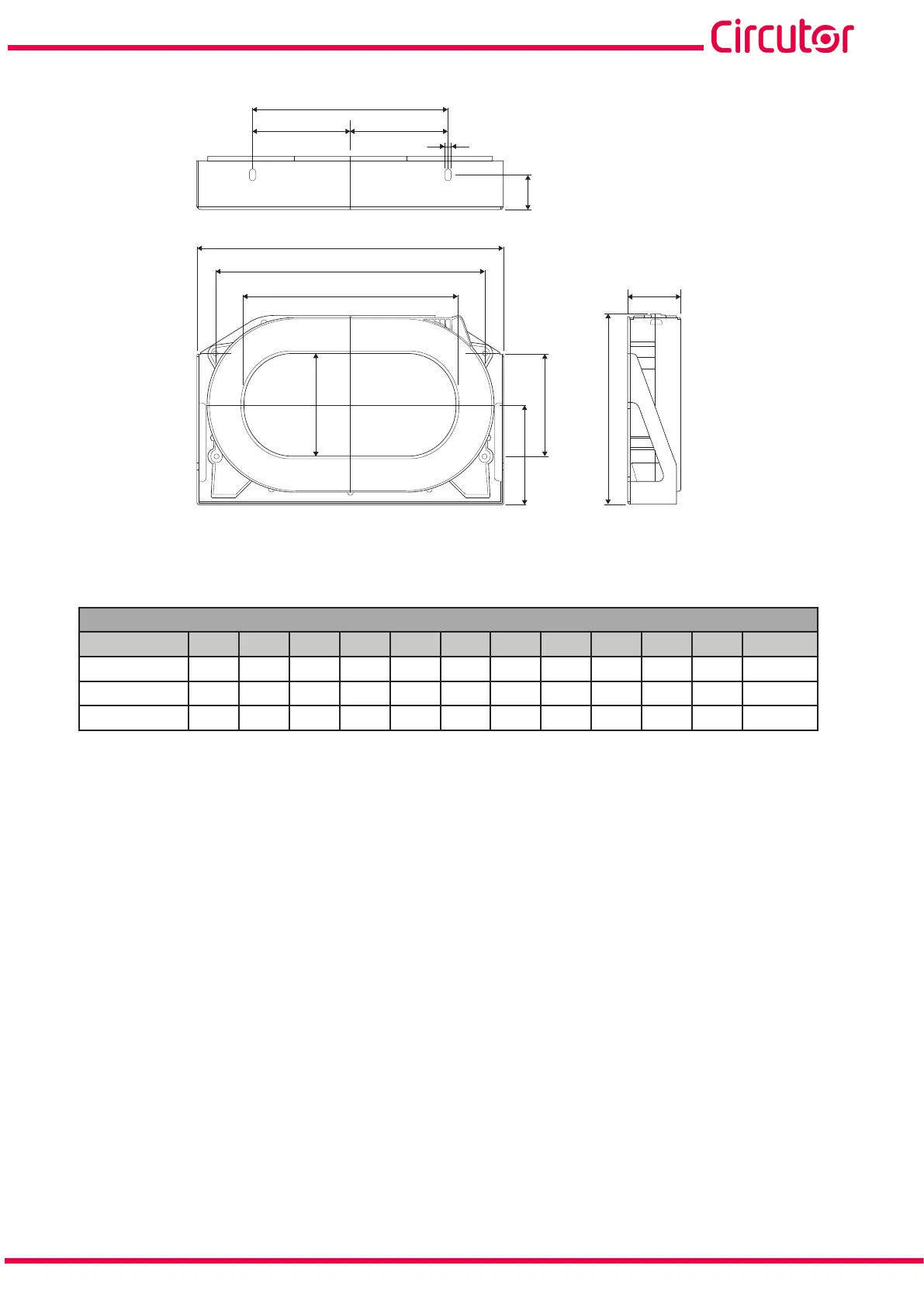

Figure 42: WGC 220x105, WGC 350x150 and WGC 500x200 dimensions (in mm.).
Table 31: WGC 220x105, WGC 350x150 and WGC 500x200 dimensions.
Dimensions (in mm) and Weight
Model A B D D E F G H I J K Weight
WGC 220x105 200 7 35 195 54,2 314 275 220 105 102 105 3.740 kg
WGC 350x150 340 7 30 279 50,2 479 430 350 165 143 150 7.800 kg
WGC 500x200 460 7 40 306 64 614 550 500 180 155 200 11.300 kg
