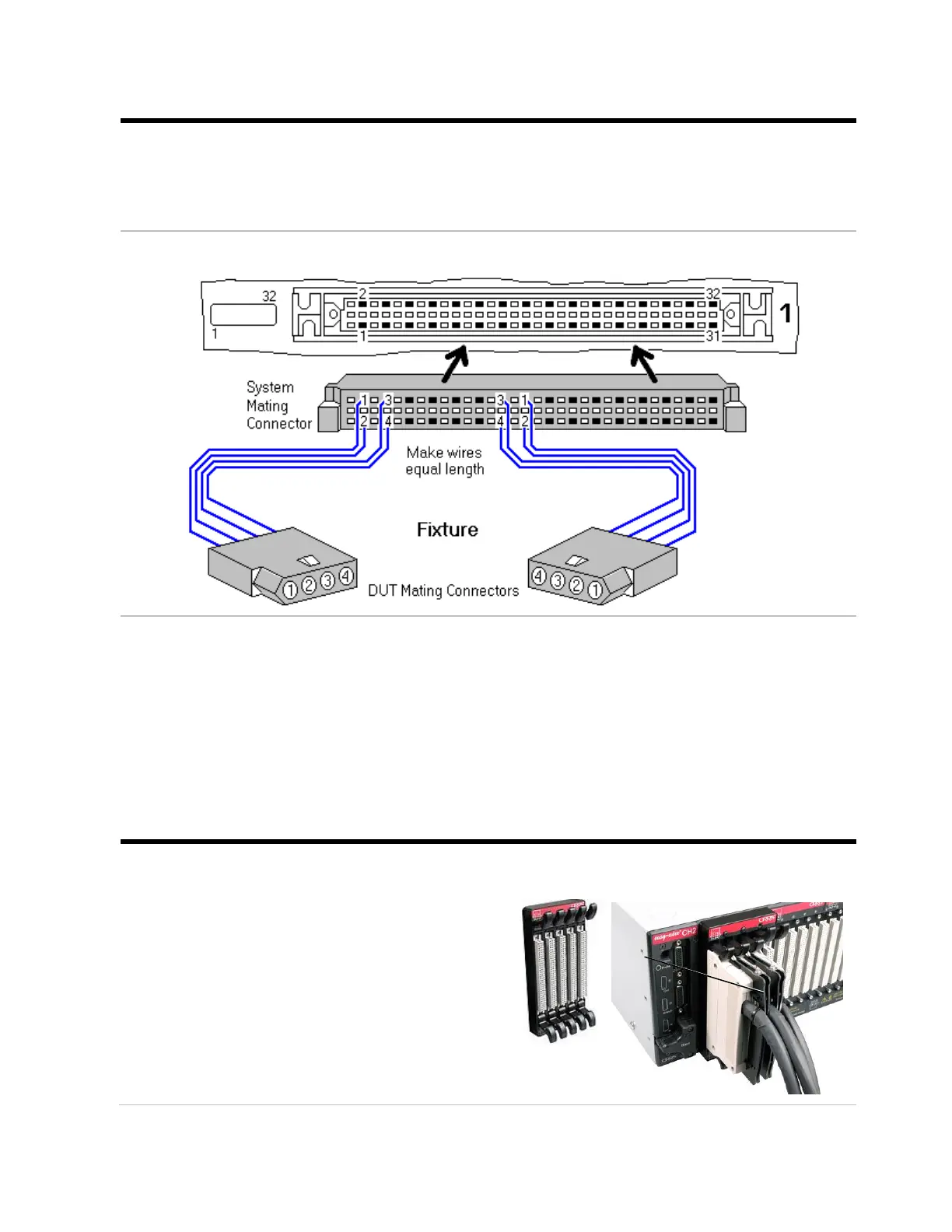

Building Traditional Fixturing
Traditional fixturing is one way to connect the device-under-test to the tester using two-wire or
four-wire fixturing. Fixtures can be built for Fast Attach, which allows you to quickly attach
connectors (see Fast Attach Overview in the on-line help system for more information).
Required Items
32 pin male Eurodin connectors with certain pins removed. Cirris offers a six-foot cable with a
32 pin Eurodin connector attached to one end. Ask for part number AC61-KF.
Optional: Cirris Screw Terminal Transition Boards (p/n ETB-ST), Screwless Terminal
Transition Boards (p/n ETB-SLT), or High Voltage Transition Boards (p/n ET-SHV). For
details, contact your Cirris sales representative.
Optional: Bi-color LEDs for guided assembly. You can either purchase discrete LEDs from a
distributor or a strip of ten LEDs mounted on card stock from Cirris. Ask for p/n ELED-01.
Connector Saver
Sacrificial CH2 Connector Savers protect the
pins in the CH2 tester from wear and damage.
One CH2 Connector Saver covers one CH2
scanner module (160 points).
Cirris recommends purchasing CH2 Connector
Savers if you frequently plug and unplug mating
connectors to and from the CH2 tester.
